| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_286T01_9000004268_29638cztM0_level2.evt | modeM0/AS1T03_286T01_9000004268_29638cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,005,439,680 | 159,036,480 |
| Size | 958.9 MB | 151.7 MB |
| Events in quadrant A | 5,813,409 | 1,009,804 |
| Events in quadrant B | 6,028,464 | 1,022,207 |
| Events in quadrant C | 5,996,594 | 985,497 |
| Events in quadrant D | 11,761,290 | 929,614 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 254 | 0 |
| B | 0 | 254 | 0 |
| C | 0 | 254 | 0 |
| D | 0 | 254 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25747 | 2 |
| B | 0 | 25985 | 2 |
| C | 0 | 25928 | 2 |
| D | 0 | 43344 | 7 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12577 | 163 | 1.296017% |
| B | 12578 | 216 | 1.717284% |
| C | 12578 | 251 | 1.995548% |
| D | 12577 | 1550 | 12.324084% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13712 | 12577 | 13 | 13 | 0.09% | 0.10% |  |
| B | 13713 | 12578 | 44 | 44 | 0.32% | 0.35% |  |
| C | 13713 | 12578 | 10 | 10 | 0.07% | 0.08% |  |
| D | 13712 | 12577 | 1292 | 1292 | 9.42% | 10.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 103655 | 341.16 | 1478 | 1444 | 299.6 |
| A | 13 | 254 | 23445 | 73.44 | 1478 | 1444 | 299.6 |
| A | 3 | 137 | 15194 | 45.9 | 1478 | 1444 | 299.6 |
| B | 15 | 33 | 141552 | 496.83 | 1468 | 1427 | 282.0 |
| B | 0 | 229 | 48801 | 167.97 | 1468 | 1427 | 282.0 |
| B | 10 | 245 | 48116 | 165.54 | 1468 | 1427 | 282.0 |
| C | 14 | 238 | 252084 | 760.66 | 1416 | 1423 | 329.5 |
| C | 10 | 22 | 110244 | 330.23 | 1416 | 1423 | 329.5 |
| C | 3 | 233 | 35006 | 101.91 | 1416 | 1423 | 329.5 |
| D | 7 | 80 | 2468660 | 7671.26 | 1364 | 1327 | 321.6 |
| D | 7 | 238 | 2193736 | 6816.49 | 1364 | 1327 | 321.6 |
| D | 8 | 195 | 635052 | 1970.33 | 1364 | 1327 | 321.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

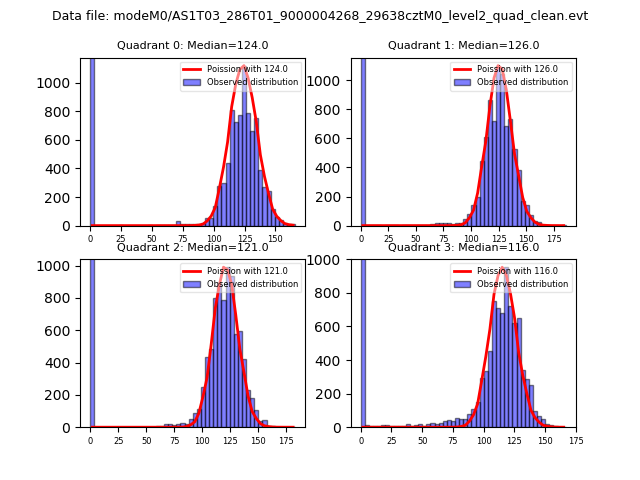

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

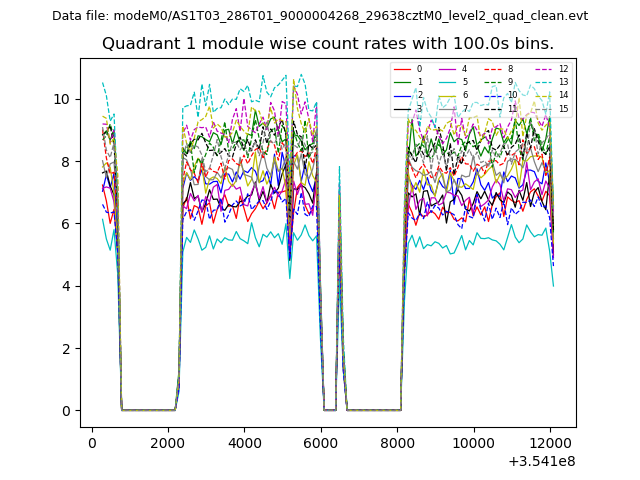

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

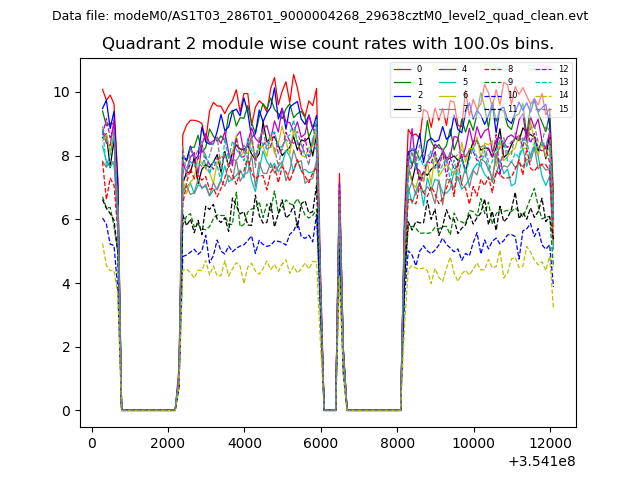

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

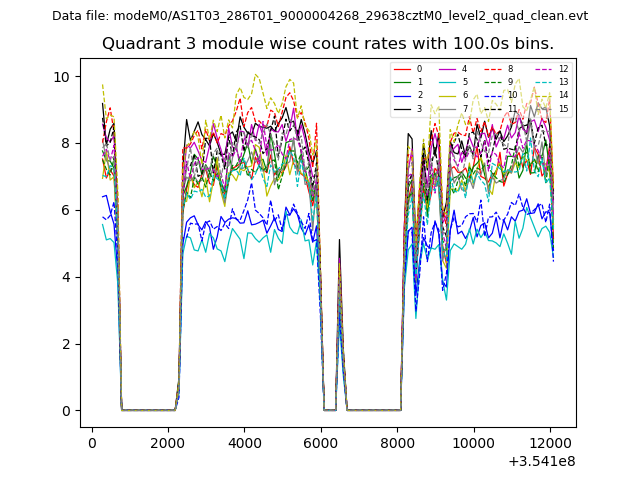

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

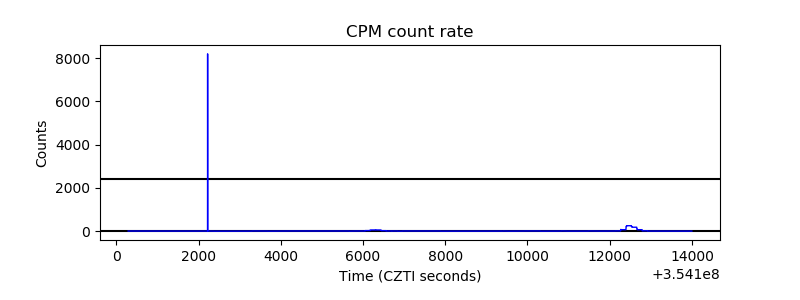

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

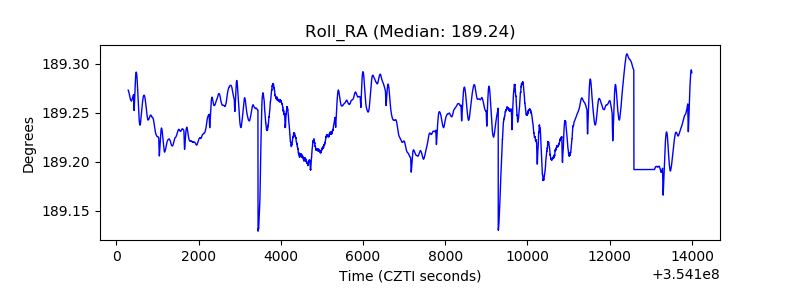

| _Roll_RA |  |
| Veto Counter |  |
