| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T01_9000004270_29656cztM0_level2.evt | modeM0/AS1C05_019T01_9000004270_29656cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,813,120 | 94,296,960 |
| Size | 535.8 MB | 89.9 MB |
| Events in quadrant A | 3,167,368 | 613,466 |
| Events in quadrant B | 3,269,233 | 624,206 |
| Events in quadrant C | 3,312,690 | 604,917 |
| Events in quadrant D | 6,821,432 | 556,362 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13848 | 2 |
| B | 0 | 14112 | 2 |
| C | 0 | 14207 | 2 |
| D | 0 | 24726 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6551 | 45 | 0.686918% |
| B | 6551 | 64 | 0.976950% |
| C | 6551 | 98 | 1.495955% |
| D | 6550 | 1078 | 16.458015% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

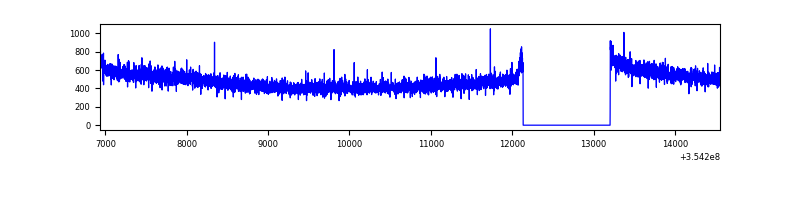

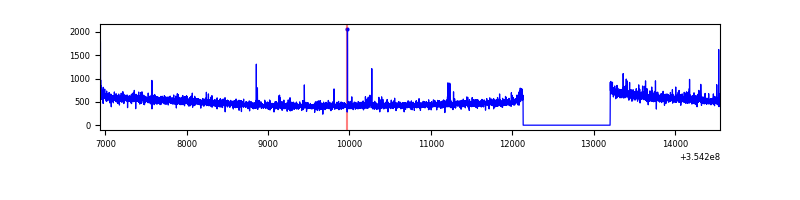

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7621 | 6551 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7621 | 6551 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7621 | 6551 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7620 | 6551 | 884 | 884 | 11.60% | 13.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12751 | 72.9 | 819 | 800 | 163.9 |
| A | 3 | 137 | 8073 | 44.37 | 819 | 800 | 163.9 |
| A | 0 | 226 | 7011 | 37.89 | 819 | 800 | 163.9 |
| B | 10 | 245 | 20672 | 128.72 | 817 | 797 | 154.4 |
| B | 12 | 111 | 18589 | 115.23 | 817 | 797 | 154.4 |
| B | 11 | 111 | 16913 | 104.37 | 817 | 797 | 154.4 |
| C | 14 | 238 | 130788 | 699.56 | 798 | 804 | 185.8 |
| C | 3 | 233 | 29776 | 155.92 | 798 | 804 | 185.8 |
| C | 2 | 114 | 15984 | 81.7 | 798 | 804 | 185.8 |
| D | 7 | 80 | 3041981 | 17181.89 | 743 | 721 | 177.0 |
| D | 8 | 195 | 509288 | 2873.2 | 743 | 721 | 177.0 |
| D | 13 | 153 | 294457 | 1659.49 | 743 | 721 | 177.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

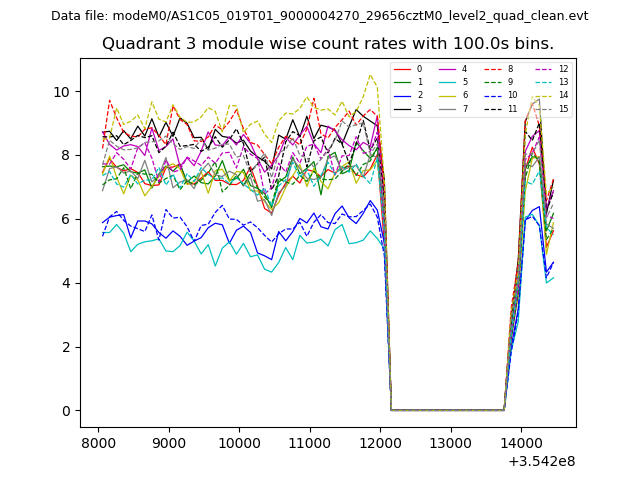

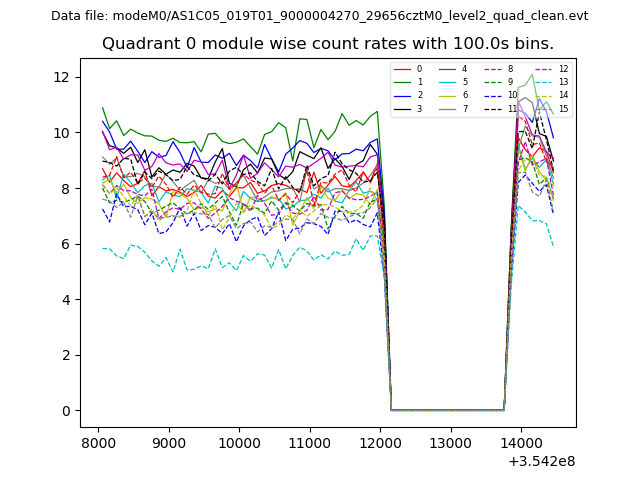

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

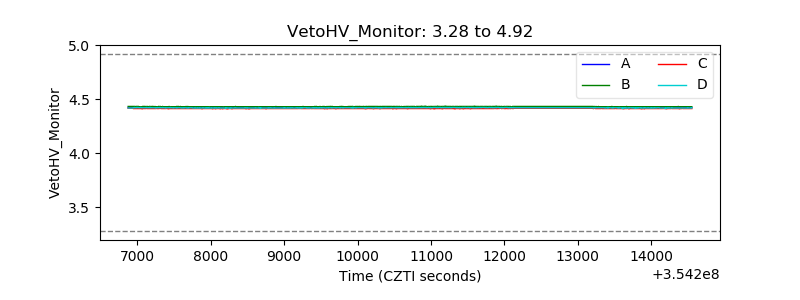

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

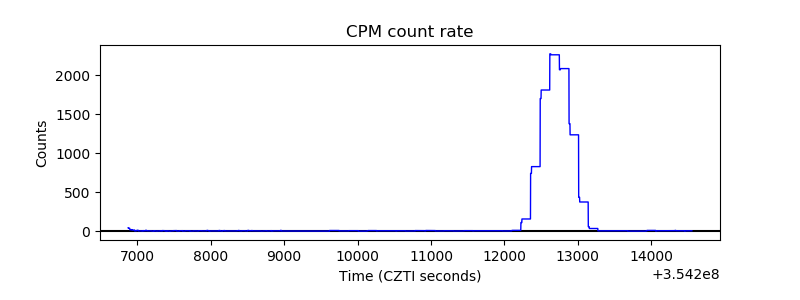

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

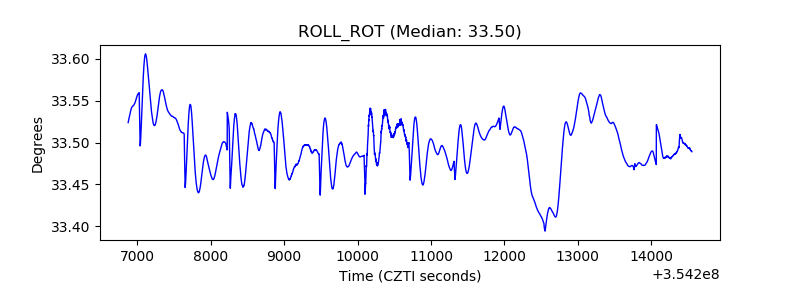

| _ROLL_ROT |  |

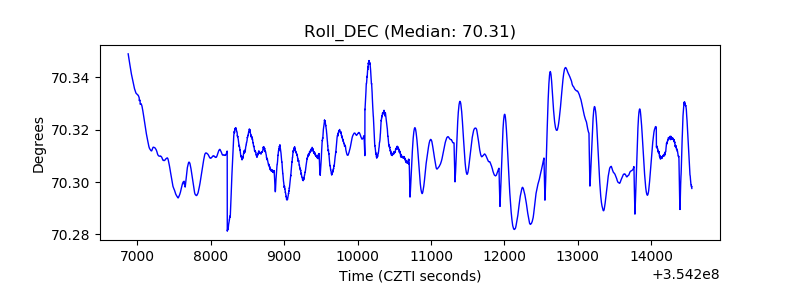

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
