| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T01_9000004270_29660cztM0_level2.evt | modeM0/AS1C05_019T01_9000004270_29660cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,972,160 | 113,359,680 |
| Size | 535.0 MB | 108.1 MB |
| Events in quadrant A | 2,953,868 | 757,789 |
| Events in quadrant B | 3,238,652 | 794,163 |
| Events in quadrant C | 3,202,209 | 774,518 |
| Events in quadrant D | 7,180,417 | 679,841 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12758 | 2 |
| B | 0 | 13544 | 2 |
| C | 0 | 13430 | 2 |
| D | 0 | 25589 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6115 | 19 | 0.310711% |
| B | 6115 | 34 | 0.556010% |
| C | 6115 | 85 | 1.390025% |
| D | 6115 | 862 | 14.096484% |

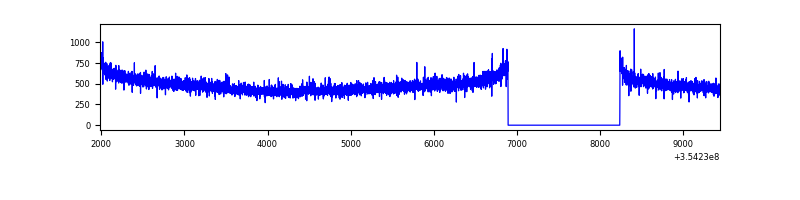

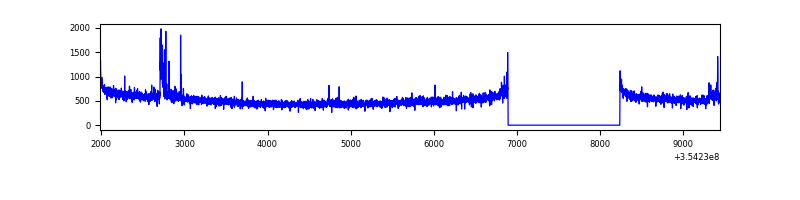

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7460 | 6116 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7460 | 6116 | 14 | 14 | 0.19% | 0.23% |  |
| C | 7460 | 6116 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7460 | 6116 | 784 | 784 | 10.51% | 12.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11396 | 69.92 | 764 | 748 | 152.3 |
| A | 3 | 137 | 7124 | 41.87 | 764 | 748 | 152.3 |
| A | 0 | 226 | 6256 | 36.17 | 764 | 748 | 152.3 |
| B | 10 | 245 | 133196 | 933.48 | 774 | 755 | 141.9 |
| B | 0 | 229 | 32008 | 220.28 | 774 | 755 | 141.9 |
| B | 12 | 111 | 17023 | 114.66 | 774 | 755 | 141.9 |
| C | 14 | 238 | 123761 | 706.32 | 757 | 762 | 174.1 |
| C | 3 | 233 | 56978 | 322.82 | 757 | 762 | 174.1 |
| C | 10 | 22 | 51637 | 292.15 | 757 | 762 | 174.1 |
| D | 7 | 80 | 3398799 | 20271.87 | 710 | 691 | 167.6 |
| D | 8 | 195 | 442064 | 2633.07 | 710 | 691 | 167.6 |
| D | 7 | 223 | 301908 | 1796.95 | 710 | 691 | 167.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

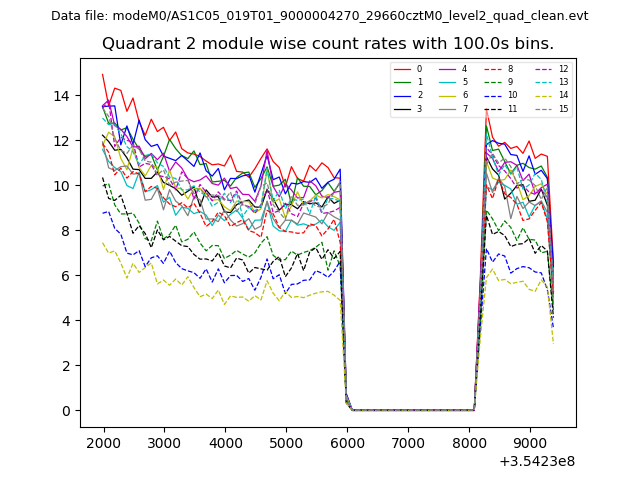

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

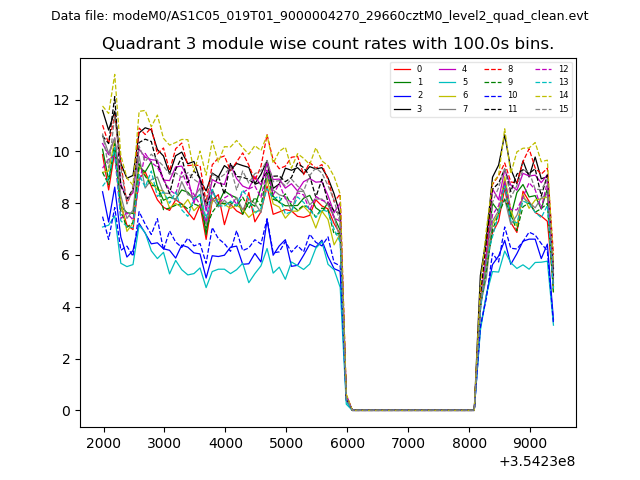

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

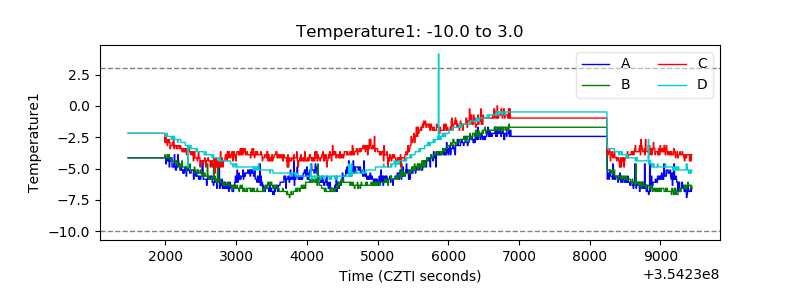

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

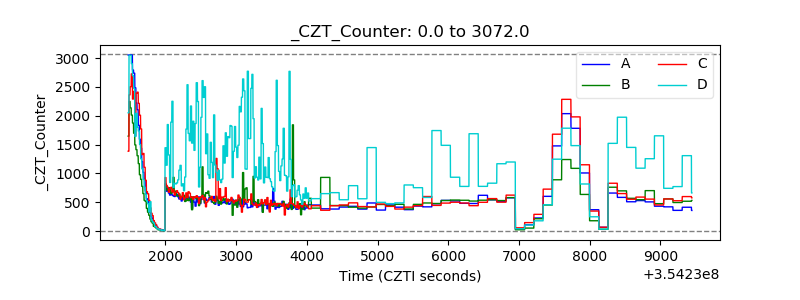

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

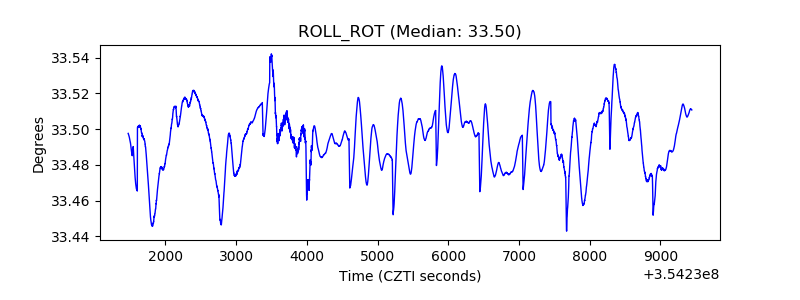

| _ROLL_ROT |  |
| _Roll_DEC |  |

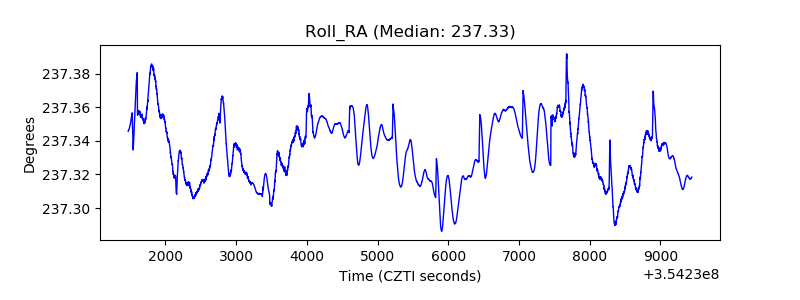

| _Roll_RA |  |
| Veto Counter |  |
