| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T01_9000004270_29661cztM0_level2.evt | modeM0/AS1C05_019T01_9000004270_29661cztM0_level2_quad_clean.evt |
| Size (bytes) | 616,919,040 | 82,059,840 |
| Size | 588.3 MB | 78.3 MB |
| Events in quadrant A | 3,048,896 | 514,723 |
| Events in quadrant B | 3,331,934 | 538,557 |
| Events in quadrant C | 3,319,606 | 521,130 |
| Events in quadrant D | 8,551,366 | 465,832 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13275 | 2 |
| B | 0 | 13991 | 2 |
| C | 0 | 13810 | 2 |
| D | 0 | 29716 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6369 | 33 | 0.518135% |
| B | 6369 | 34 | 0.533836% |
| C | 6369 | 82 | 1.287486% |
| D | 6369 | 1766 | 27.728058% |

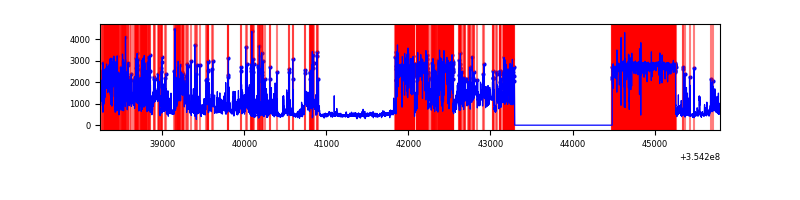

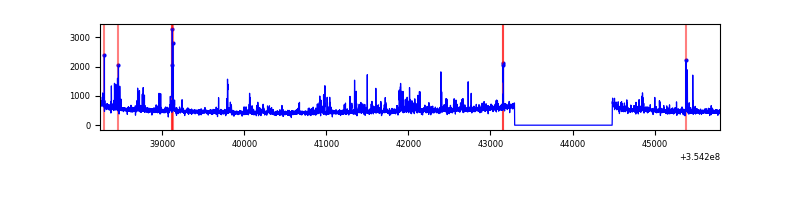

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7558 | 6369 | 19 | 19 | 0.25% | 0.30% |  |
| B | 7559 | 6370 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7559 | 6370 | 18 | 18 | 0.24% | 0.28% |  |
| D | 7559 | 6370 | 1612 | 1612 | 21.33% | 25.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 86040 | 556.62 | 767 | 754 | 153.2 |
| A | 13 | 254 | 10886 | 66.13 | 767 | 754 | 153.2 |
| A | 3 | 137 | 7460 | 43.77 | 767 | 754 | 153.2 |
| B | 10 | 245 | 227456 | 1559.74 | 775 | 755 | 145.3 |
| B | 0 | 190 | 21930 | 145.68 | 775 | 755 | 145.3 |
| B | 12 | 111 | 17628 | 116.09 | 775 | 755 | 145.3 |
| C | 3 | 233 | 148427 | 848.8 | 749 | 753 | 174.0 |
| C | 14 | 238 | 122540 | 700.01 | 749 | 753 | 174.0 |
| C | 10 | 22 | 68800 | 391.12 | 749 | 753 | 174.0 |
| D | 7 | 80 | 5308181 | 35160.5 | 643 | 626 | 151.0 |
| D | 8 | 195 | 420025 | 2778.36 | 643 | 626 | 151.0 |
| D | 2 | 250 | 132174 | 871.45 | 643 | 626 | 151.0 |

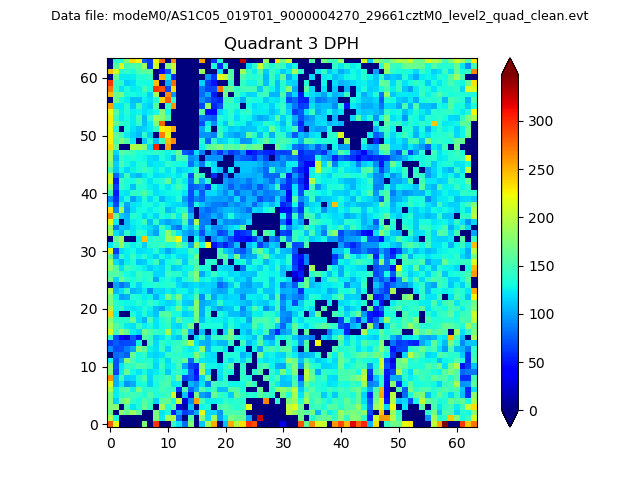

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

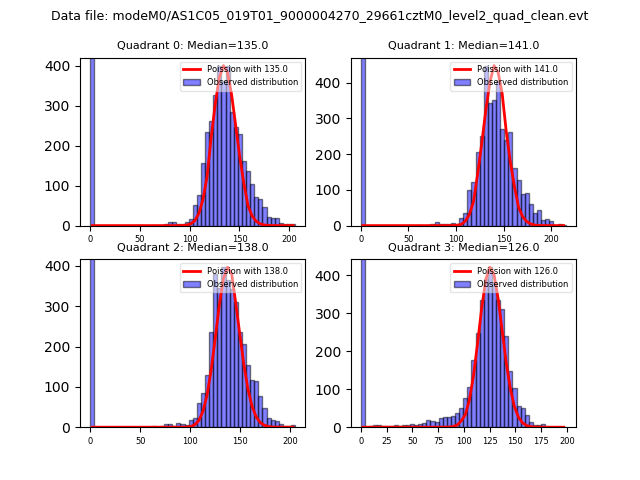

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

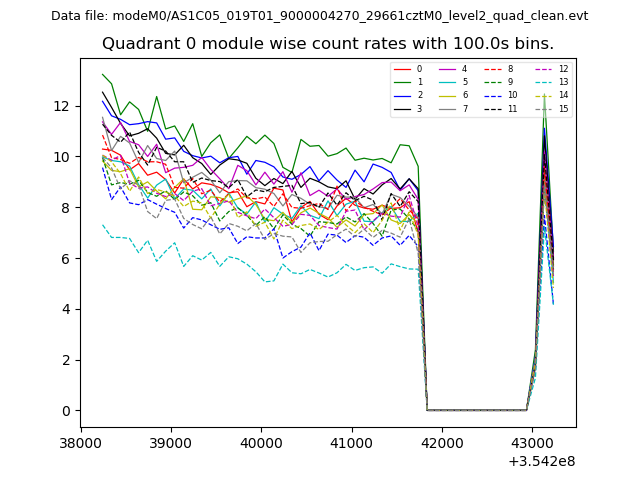

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

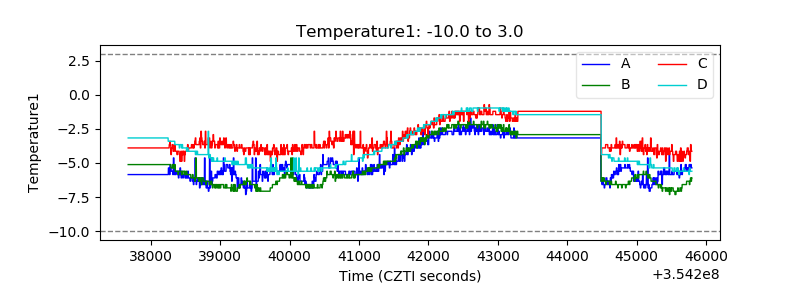

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

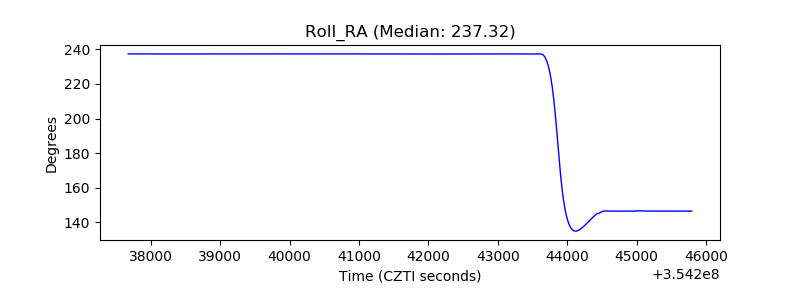

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
