| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_097T02_9000004272_29674cztM0_level2.evt | modeM0/AS1A10_097T02_9000004272_29674cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,818,880 | 92,148,480 |
| Size | 450.0 MB | 87.9 MB |
| Events in quadrant A | 3,143,473 | 607,557 |
| Events in quadrant B | 3,385,431 | 620,581 |
| Events in quadrant C | 3,660,631 | 577,880 |
| Events in quadrant D | 3,684,795 | 557,984 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13089 | 2 |
| B | 0 | 13823 | 2 |
| C | 0 | 14704 | 2 |
| D | 0 | 14884 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6112 | 52 | 0.850785% |
| B | 6112 | 113 | 1.848822% |
| C | 6112 | 214 | 3.501309% |
| D | 6112 | 50 | 0.818063% |

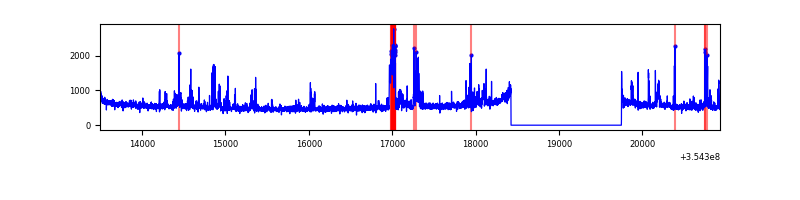

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7437 | 6113 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7437 | 6113 | 33 | 33 | 0.44% | 0.54% |  |
| C | 7437 | 6113 | 29 | 29 | 0.39% | 0.47% |  |
| D | 7437 | 6113 | 35 | 35 | 0.47% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11605 | 66.87 | 812 | 799 | 161.6 |
| A | 3 | 137 | 7611 | 42.16 | 812 | 799 | 161.6 |
| A | 0 | 226 | 6845 | 37.41 | 812 | 799 | 161.6 |
| B | 0 | 229 | 183230 | 1185.1 | 810 | 791 | 153.9 |
| B | 12 | 111 | 18392 | 114.33 | 810 | 791 | 153.9 |
| B | 11 | 111 | 16414 | 101.48 | 810 | 791 | 153.9 |
| C | 3 | 233 | 375260 | 2096.59 | 769 | 777 | 178.6 |
| C | 14 | 238 | 153288 | 853.85 | 769 | 777 | 178.6 |
| C | 10 | 22 | 74502 | 412.76 | 769 | 777 | 178.6 |
| D | 8 | 195 | 458763 | 2502.71 | 771 | 754 | 183.0 |
| D | 7 | 80 | 155522 | 845.7 | 771 | 754 | 183.0 |
| D | 2 | 250 | 43903 | 235.78 | 771 | 754 | 183.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

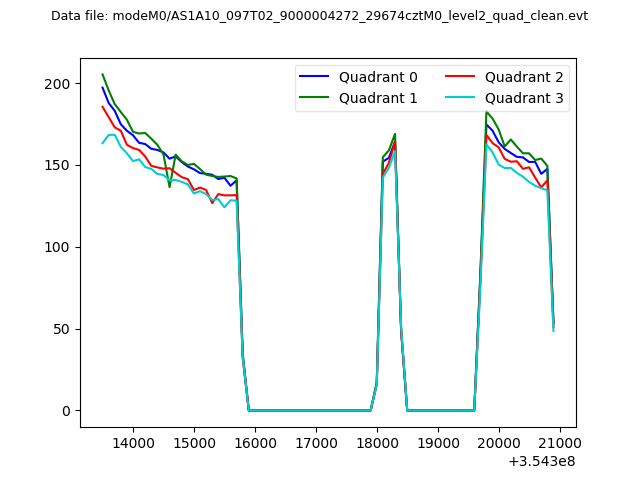

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

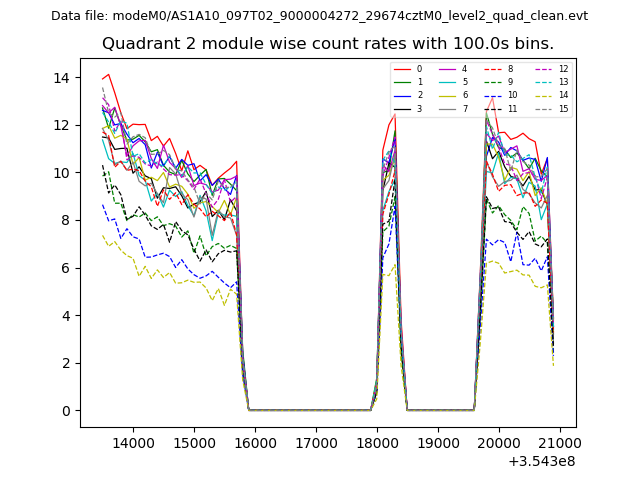

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

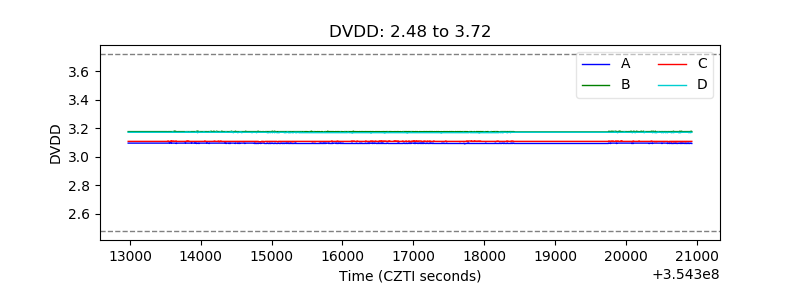

| D_VDD |  |

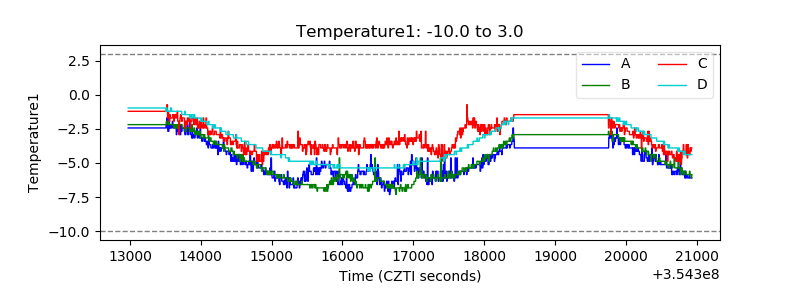

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

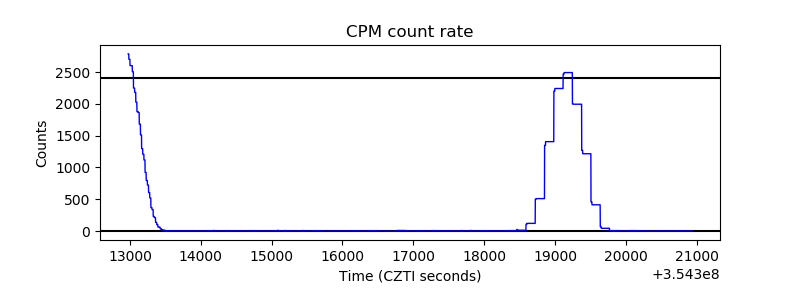

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

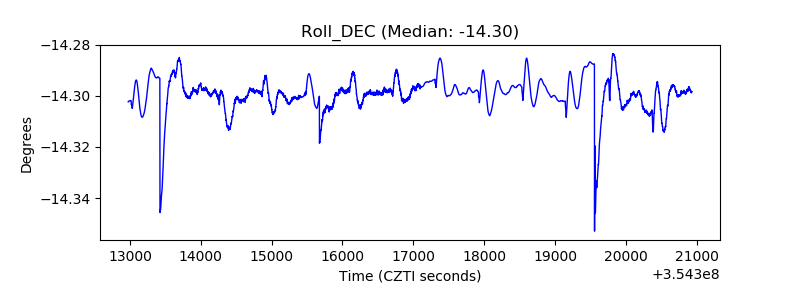

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
