| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_093T01_9000004274_29677cztM0_level2.evt | modeM0/AS1A10_093T01_9000004274_29677cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,553,280 | 72,302,400 |
| Size | 467.8 MB | 69.0 MB |
| Events in quadrant A | 3,052,869 | 447,340 |
| Events in quadrant B | 3,249,698 | 455,524 |
| Events in quadrant C | 3,223,017 | 421,658 |
| Events in quadrant D | 4,885,275 | 407,117 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13412 | 1 |
| B | 0 | 13866 | 1 |
| C | 0 | 13732 | 1 |
| D | 0 | 18988 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6559 | 53 | 0.808050% |
| B | 6560 | 103 | 1.570122% |
| C | 6560 | 180 | 2.743902% |
| D | 6560 | 189 | 2.881098% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7154 | 6561 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7155 | 6562 | 11 | 11 | 0.15% | 0.17% |  |
| C | 7155 | 6562 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7155 | 6562 | 167 | 167 | 2.33% | 2.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 18380 | 111.42 | 784 | 767 | 158.1 |
| A | 13 | 254 | 12151 | 72.02 | 784 | 767 | 158.1 |
| A | 3 | 137 | 7902 | 45.14 | 784 | 767 | 158.1 |
| B | 0 | 229 | 107271 | 708.29 | 780 | 758 | 150.4 |
| B | 10 | 247 | 46180 | 302.05 | 780 | 758 | 150.4 |
| B | 12 | 111 | 18641 | 118.92 | 780 | 758 | 150.4 |
| C | 14 | 238 | 148535 | 839.8 | 749 | 753 | 176.0 |
| C | 3 | 233 | 85240 | 480.12 | 749 | 753 | 176.0 |
| C | 14 | 254 | 39465 | 219.99 | 749 | 753 | 176.0 |
| D | 7 | 80 | 1031163 | 5746.31 | 750 | 727 | 179.3 |
| D | 8 | 195 | 550274 | 3064.59 | 750 | 727 | 179.3 |
| D | 7 | 238 | 287480 | 1599.1 | 750 | 727 | 179.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

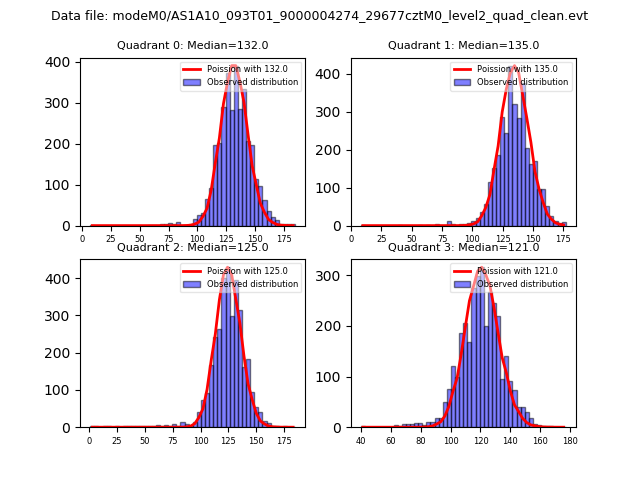

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
