| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_093T01_9000004274_29689cztM0_level2.evt | modeM0/AS1A10_093T01_9000004274_29689cztM0_level2_quad_clean.evt |
| Size (bytes) | 652,731,840 | 92,761,920 |
| Size | 622.5 MB | 88.5 MB |
| Events in quadrant A | 3,089,835 | 614,710 |
| Events in quadrant B | 5,344,159 | 629,046 |
| Events in quadrant C | 4,258,731 | 585,550 |
| Events in quadrant D | 6,652,425 | 542,571 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13035 | 2 |
| B | 0 | 19997 | 2 |
| C | 0 | 17076 | 2 |
| D | 0 | 24138 | 7 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6261 | 20 | 0.319438% |
| B | 6261 | 161 | 2.571474% |
| C | 6261 | 167 | 2.667306% |
| D | 6260 | 871 | 13.913738% |

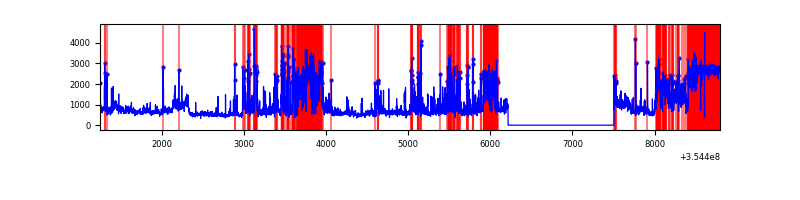

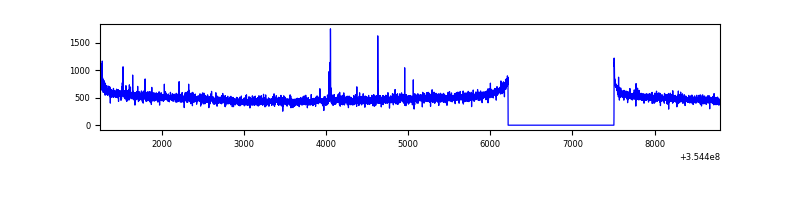

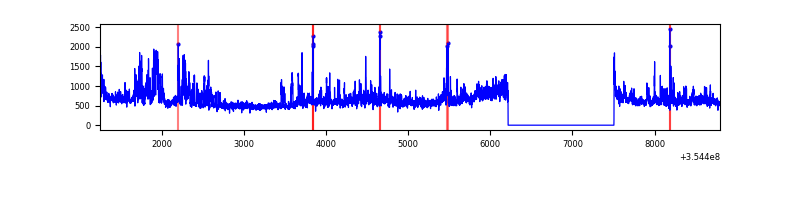

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7551 | 6262 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7551 | 6262 | 41 | 41 | 0.54% | 0.65% |  |
| C | 7551 | 6262 | 10 | 10 | 0.13% | 0.16% |  |
| D | 7549 | 6260 | 861 | 861 | 11.41% | 13.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 23704 | 144.95 | 792 | 776 | 158.2 |
| A | 13 | 254 | 12973 | 77.11 | 792 | 776 | 158.2 |
| A | 12 | 194 | 8938 | 51.6 | 792 | 776 | 158.2 |
| B | 6 | 159 | 1949194 | 13078.28 | 796 | 777 | 149.0 |
| B | 0 | 229 | 205721 | 1375.64 | 796 | 777 | 149.0 |
| B | 0 | 230 | 28163 | 183.82 | 796 | 777 | 149.0 |
| C | 3 | 233 | 1056316 | 5916.05 | 768 | 773 | 178.4 |
| C | 14 | 238 | 127976 | 712.94 | 768 | 773 | 178.4 |
| C | 10 | 22 | 49291 | 271.93 | 768 | 773 | 178.4 |
| D | 7 | 80 | 2105148 | 12191.82 | 726 | 706 | 172.6 |
| D | 7 | 238 | 859250 | 4973.87 | 726 | 706 | 172.6 |
| D | 8 | 195 | 614913 | 3558.33 | 726 | 706 | 172.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

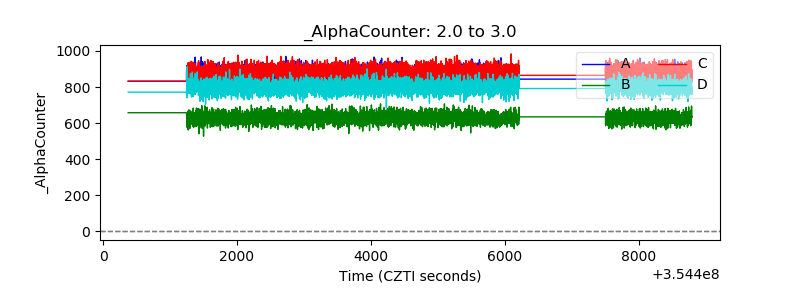

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

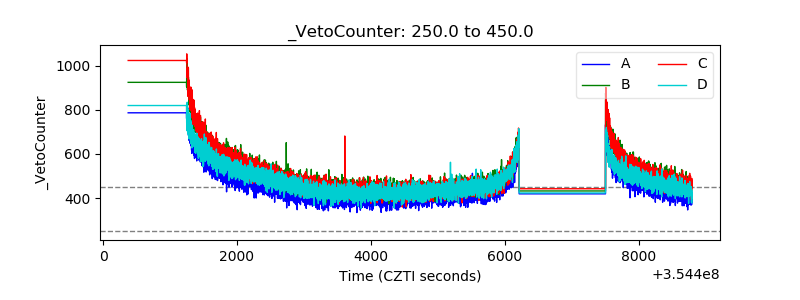

| Veto Counter |  |
