| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_007T01_9000004276_29715cztM0_level2.evt | modeM0/AS1A10_007T01_9000004276_29715cztM0_level2_quad_clean.evt |
| Size (bytes) | 622,048,320 | 69,998,400 |
| Size | 593.2 MB | 66.8 MB |
| Events in quadrant A | 3,413,625 | 426,079 |
| Events in quadrant B | 5,578,241 | 424,102 |
| Events in quadrant C | 5,116,434 | 413,981 |
| Events in quadrant D | 4,297,912 | 408,316 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14320 | 2 |
| B | 0 | 20777 | 2 |
| C | 0 | 19758 | 2 |
| D | 0 | 17096 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6406 | 70 | 1.092726% |
| B | 6406 | 189 | 2.950359% |
| C | 6406 | 356 | 5.557290% |
| D | 6406 | 83 | 1.295660% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7611 | 6406 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7611 | 6406 | 14 | 14 | 0.18% | 0.22% |  |
| C | 7611 | 6406 | 43 | 43 | 0.56% | 0.67% |  |
| D | 7611 | 6406 | 20 | 20 | 0.26% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13077 | 69.55 | 885 | 870 | 175.5 |
| A | 3 | 137 | 8131 | 41.37 | 885 | 870 | 175.5 |
| A | 0 | 226 | 7530 | 37.95 | 885 | 870 | 175.5 |
| B | 6 | 159 | 1880790 | 11434.72 | 875 | 855 | 164.4 |
| B | 0 | 229 | 200177 | 1212.38 | 875 | 855 | 164.4 |
| B | 5 | 235 | 32253 | 190.98 | 875 | 855 | 164.4 |
| C | 3 | 233 | 1680476 | 8674.64 | 840 | 849 | 193.6 |
| C | 14 | 238 | 136857 | 702.43 | 840 | 849 | 193.6 |
| C | 2 | 114 | 15554 | 75.95 | 840 | 849 | 193.6 |
| D | 8 | 195 | 607583 | 2978.27 | 857 | 837 | 203.7 |
| D | 7 | 80 | 282517 | 1382.65 | 857 | 837 | 203.7 |
| D | 13 | 153 | 88109 | 428.38 | 857 | 837 | 203.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

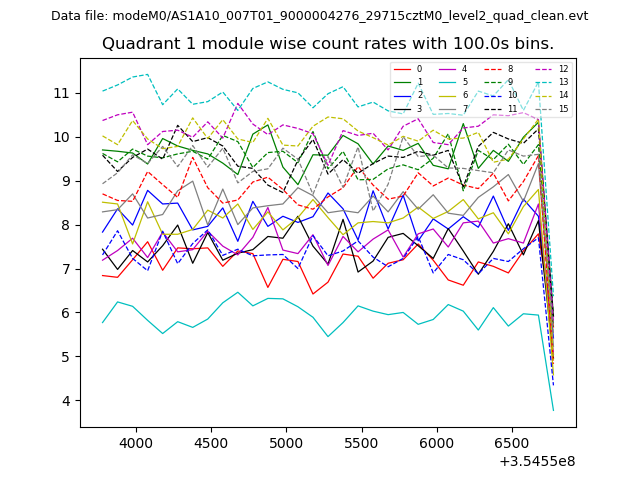

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
