| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_007T01_9000004276_29735cztM0_level2.evt | modeM0/AS1A10_007T01_9000004276_29735cztM0_level2_quad_clean.evt |
| Size (bytes) | 756,878,400 | 98,965,440 |
| Size | 721.8 MB | 94.4 MB |
| Events in quadrant A | 3,403,572 | 642,585 |
| Events in quadrant B | 5,641,516 | 646,830 |
| Events in quadrant C | 4,498,673 | 628,202 |
| Events in quadrant D | 8,897,378 | 582,492 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14741 | 2 |
| B | 0 | 21939 | 2 |
| C | 0 | 17984 | 2 |
| D | 0 | 31379 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7137 | 18 | 0.252207% |
| B | 7136 | 155 | 2.172085% |
| C | 7136 | 211 | 2.956839% |
| D | 7136 | 1099 | 15.400785% |

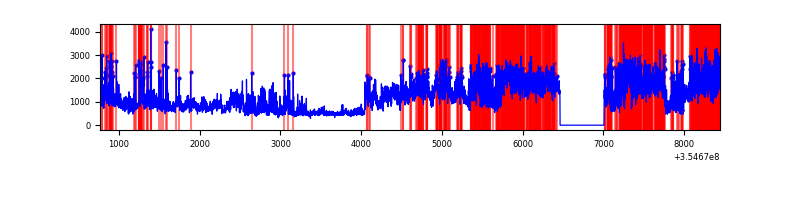

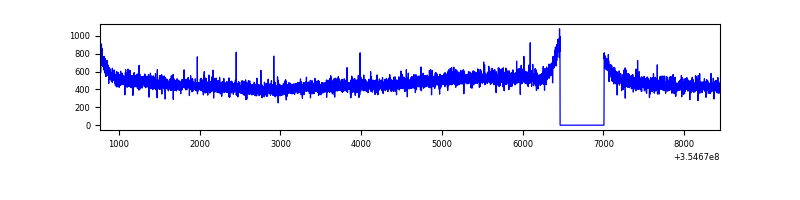

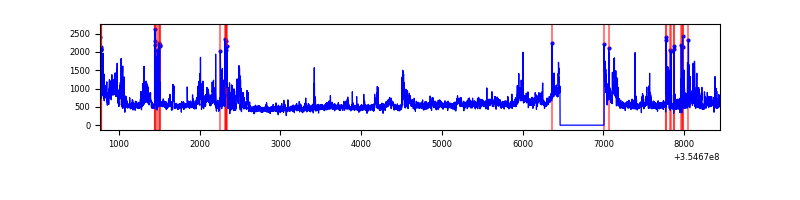

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7682 | 7138 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7681 | 7136 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7681 | 7136 | 33 | 33 | 0.43% | 0.46% |  |
| D | 7680 | 7135 | 927 | 927 | 12.07% | 12.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13764 | 72.51 | 881 | 861 | 177.9 |
| A | 3 | 137 | 9001 | 45.74 | 881 | 861 | 177.9 |
| A | 0 | 226 | 7346 | 36.44 | 881 | 861 | 177.9 |
| B | 6 | 159 | 2066144 | 12148.75 | 876 | 850 | 170.0 |
| B | 0 | 229 | 101102 | 589.72 | 876 | 850 | 170.0 |
| B | 12 | 111 | 21067 | 118.92 | 876 | 850 | 170.0 |
| C | 3 | 233 | 935881 | 4697.2 | 851 | 858 | 199.1 |
| C | 14 | 238 | 138410 | 691.01 | 851 | 858 | 199.1 |
| C | 7 | 247 | 48303 | 238.35 | 851 | 858 | 199.1 |
| D | 8 | 195 | 4660773 | 23646.7 | 822 | 800 | 197.1 |
| D | 7 | 80 | 885310 | 4488.38 | 822 | 800 | 197.1 |
| D | 2 | 250 | 113082 | 569.77 | 822 | 800 | 197.1 |

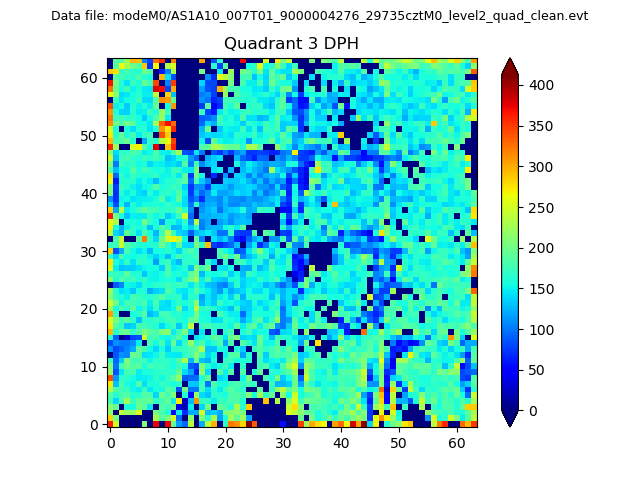

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

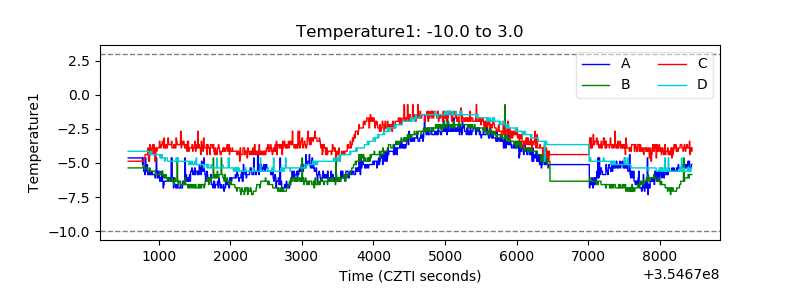

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

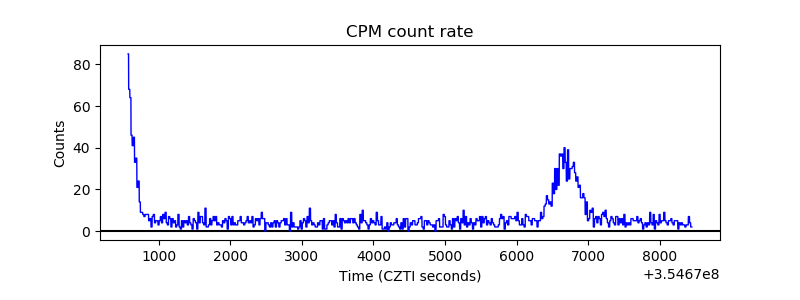

| _CPM_Rate |  |

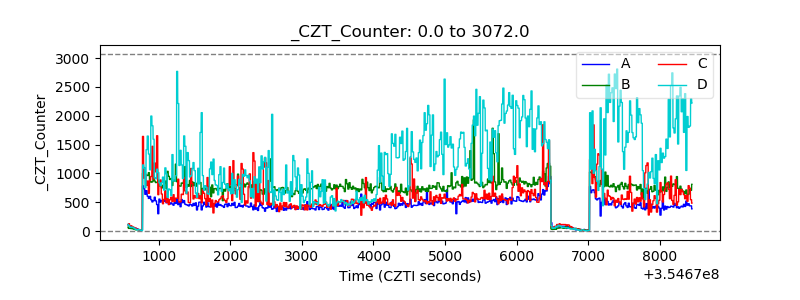

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

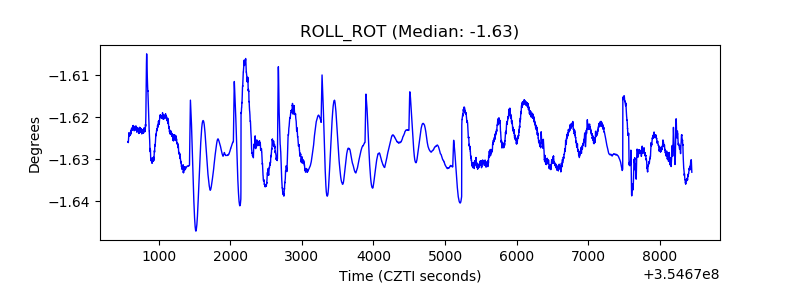

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
