| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29755cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29755cztM0_level2_quad_clean.evt |
| Size (bytes) | 825,356,160 | 145,964,160 |
| Size | 787.1 MB | 139.2 MB |
| Events in quadrant A | 4,782,020 | 951,064 |
| Events in quadrant B | 7,923,844 | 953,633 |
| Events in quadrant C | 5,540,853 | 912,041 |
| Events in quadrant D | 6,051,271 | 888,502 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 210 | 0 |
| B | 0 | 210 | 0 |
| C | 0 | 210 | 0 |
| D | 0 | 210 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21169 | 2 |
| B | 0 | 31456 | 2 |
| C | 0 | 22985 | 2 |
| D | 0 | 24581 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10329 | 49 | 0.474392% |
| B | 10329 | 200 | 1.936296% |
| C | 10329 | 334 | 3.233614% |
| D | 10330 | 103 | 0.997096% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10824 | 10332 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10824 | 10329 | 4 | 4 | 0.04% | 0.04% |  |
| C | 10824 | 10330 | 103 | 103 | 0.95% | 1.00% |  |
| D | 10825 | 10333 | 40 | 40 | 0.37% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 20078 | 75.68 | 1238 | 1209 | 249.3 |
| A | 3 | 137 | 12254 | 44.3 | 1238 | 1209 | 249.3 |
| A | 0 | 226 | 10316 | 36.53 | 1238 | 1209 | 249.3 |
| B | 6 | 159 | 2952537 | 12525.13 | 1226 | 1194 | 235.6 |
| B | 0 | 229 | 50240 | 208.14 | 1226 | 1194 | 235.6 |
| B | 0 | 190 | 49942 | 206.88 | 1226 | 1194 | 235.6 |
| C | 10 | 22 | 564926 | 2009.94 | 1198 | 1207 | 280.5 |
| C | 14 | 238 | 193401 | 685.27 | 1198 | 1207 | 280.5 |
| C | 7 | 247 | 76315 | 267.8 | 1198 | 1207 | 280.5 |
| D | 8 | 195 | 989981 | 3424.41 | 1209 | 1175 | 288.8 |
| D | 7 | 80 | 118423 | 406.05 | 1209 | 1175 | 288.8 |
| D | 2 | 250 | 112371 | 385.09 | 1209 | 1175 | 288.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

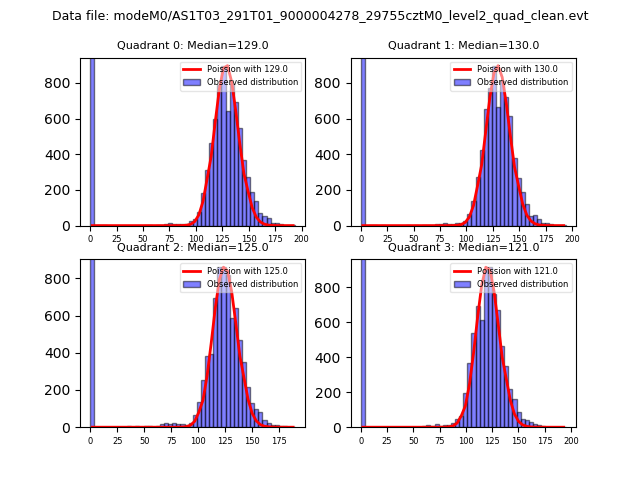

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

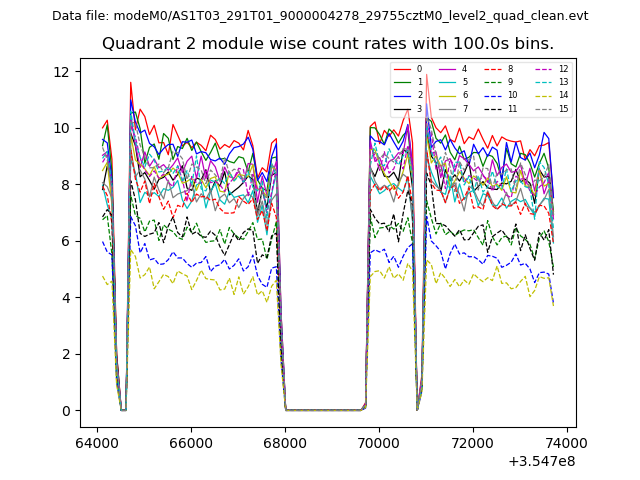

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

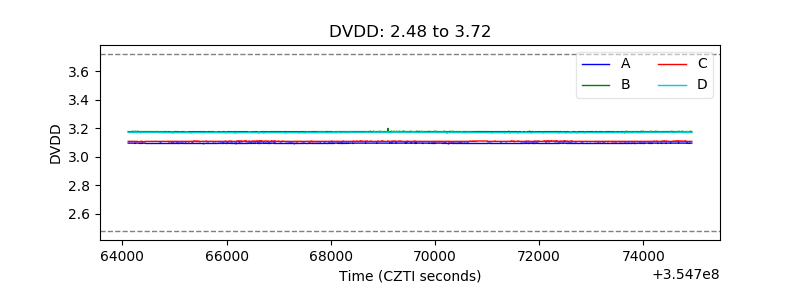

| D_VDD |  |
| Temperature 1 |  |

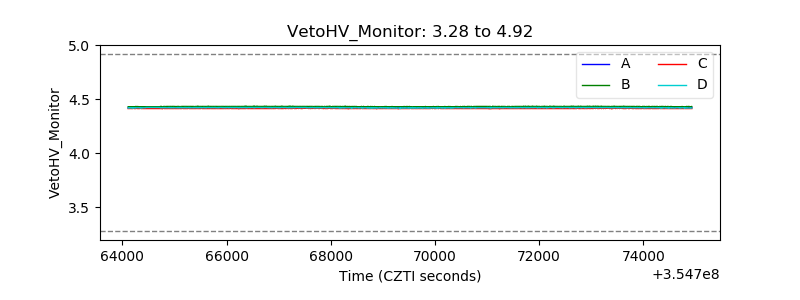

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

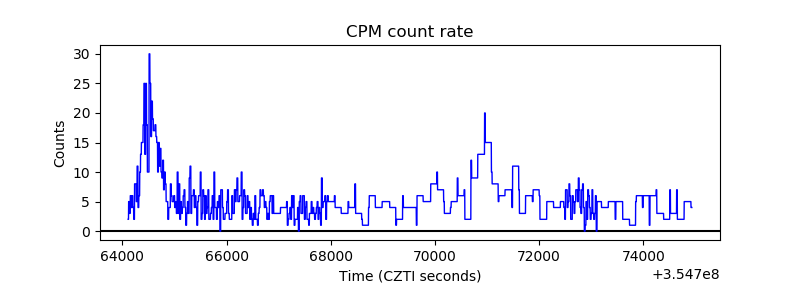

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

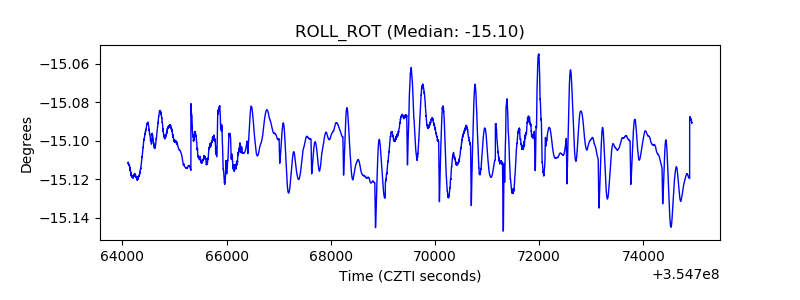

| _ROLL_ROT |  |
| _Roll_DEC |  |

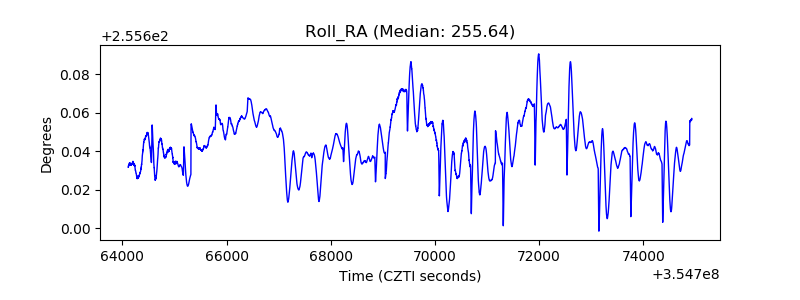

| _Roll_RA |  |
| Veto Counter |  |
