| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29765cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29765cztM0_level2_quad_clean.evt |
| Size (bytes) | 658,218,240 | 117,383,040 |
| Size | 627.7 MB | 111.9 MB |
| Events in quadrant A | 4,004,454 | 765,703 |
| Events in quadrant B | 6,659,937 | 765,400 |
| Events in quadrant C | 4,123,988 | 734,181 |
| Events in quadrant D | 4,584,311 | 713,301 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17325 | 2 |
| B | 0 | 25693 | 2 |
| C | 0 | 17361 | 2 |
| D | 0 | 19067 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8294 | 45 | 0.542561% |
| B | 8295 | 318 | 3.833635% |
| C | 8295 | 224 | 2.700422% |
| D | 8295 | 50 | 0.602773% |

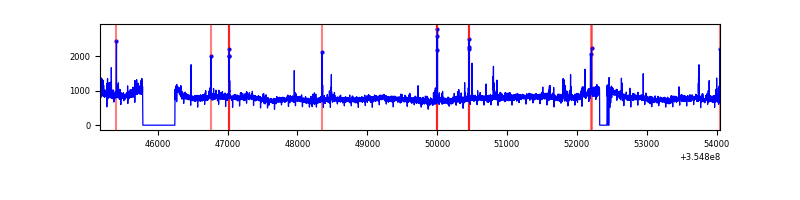

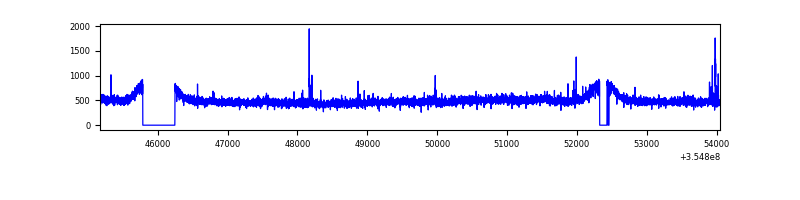

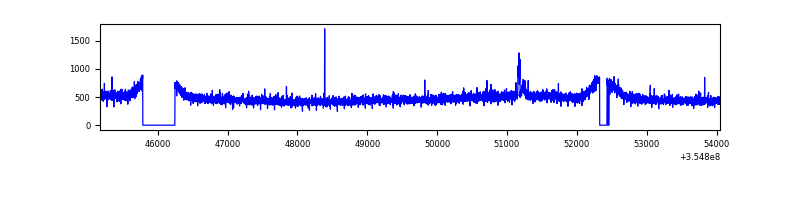

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8874 | 8296 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8875 | 8296 | 15 | 15 | 0.17% | 0.18% |  |
| C | 8875 | 8296 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8875 | 8298 | 5 | 5 | 0.06% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 250 | 24255 | 111.79 | 1029 | 1006 | 208.0 |
| A | 13 | 254 | 16020 | 72.19 | 1029 | 1006 | 208.0 |
| A | 3 | 137 | 10533 | 45.81 | 1029 | 1006 | 208.0 |
| B | 6 | 159 | 2435106 | 12512.86 | 1018 | 991 | 194.5 |
| B | 0 | 229 | 174119 | 889.99 | 1018 | 991 | 194.5 |
| B | 12 | 111 | 24530 | 121.01 | 1018 | 991 | 194.5 |
| C | 14 | 238 | 160457 | 683.05 | 994 | 997 | 233.5 |
| C | 7 | 247 | 37925 | 158.18 | 994 | 997 | 233.5 |
| C | 3 | 233 | 29006 | 119.98 | 994 | 997 | 233.5 |
| D | 8 | 195 | 630484 | 2657.37 | 996 | 967 | 236.9 |
| D | 2 | 250 | 51863 | 214.85 | 996 | 967 | 236.9 |
| D | 7 | 80 | 44902 | 185.46 | 996 | 967 | 236.9 |

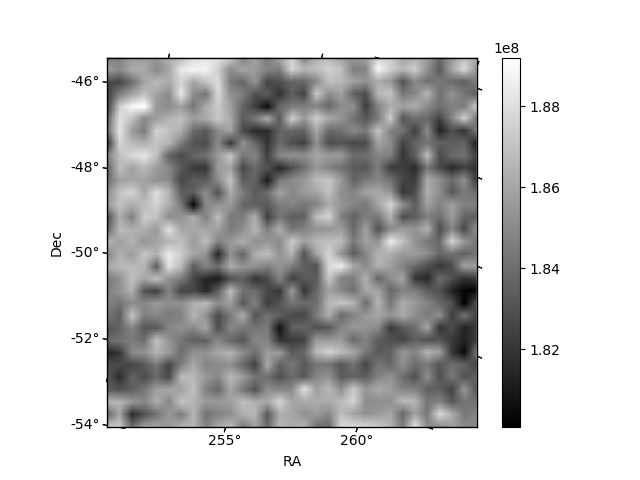

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

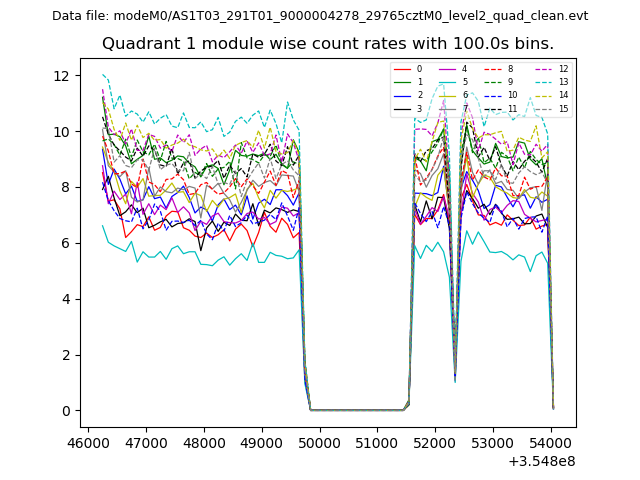

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

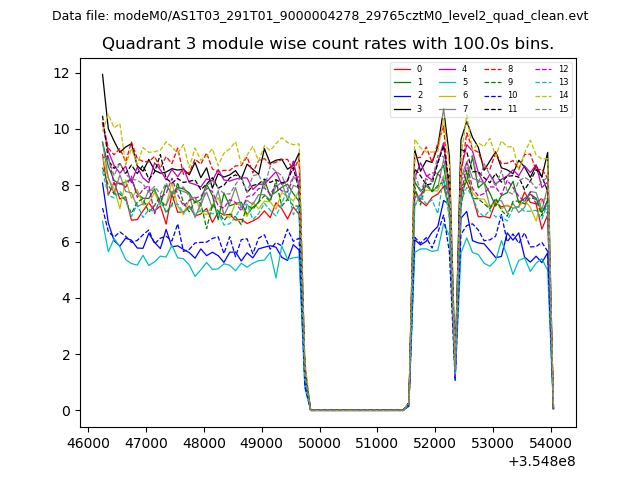

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

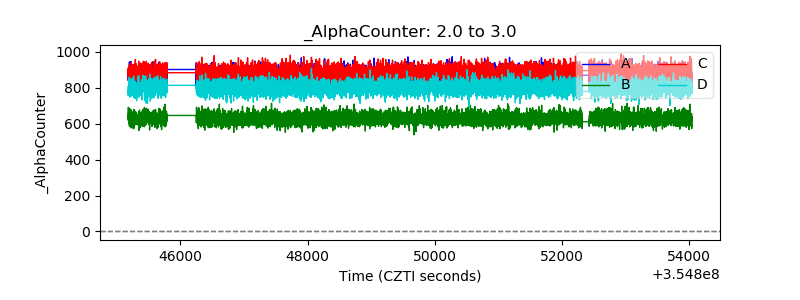

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

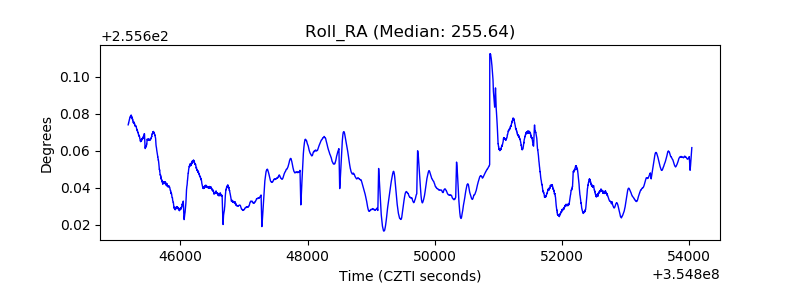

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
