| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29772cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29772cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,457,118,720 | 225,665,280 |
| Size | 1.4 GB | 215.2 MB |
| Events in quadrant A | 8,592,706 | 1,450,636 |
| Events in quadrant B | 14,536,866 | 1,440,317 |
| Events in quadrant C | 9,014,849 | 1,386,356 |
| Events in quadrant D | 10,809,898 | 1,355,841 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 356 | 0 |
| B | 0 | 356 | 0 |
| C | 0 | 356 | 0 |
| D | 0 | 356 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36864 | 3 |
| B | 0 | 54938 | 3 |
| C | 0 | 37605 | 3 |
| D | 0 | 43389 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17425 | 214 | 1.228121% |
| B | 17425 | 575 | 3.299857% |
| C | 17426 | 328 | 1.882245% |
| D | 17426 | 345 | 1.979800% |

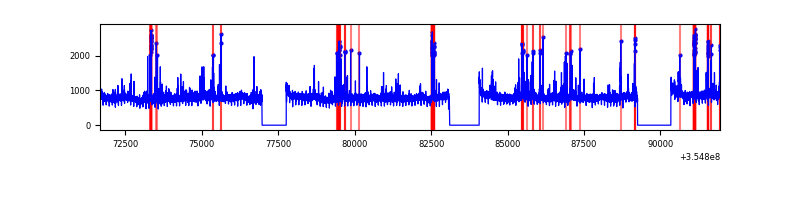

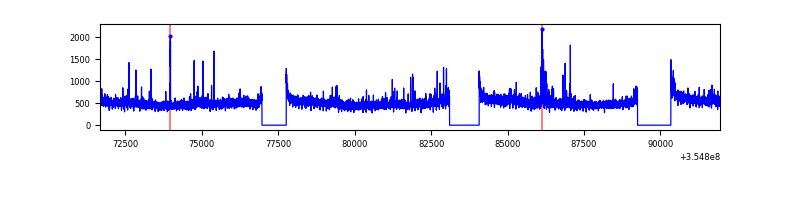

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20279 | 17424 | 5 | 5 | 0.02% | 0.03% |  |
| B | 20279 | 17424 | 156 | 156 | 0.77% | 0.90% |  |
| C | 20280 | 17425 | 2 | 2 | 0.01% | 0.01% |  |
| D | 20280 | 17425 | 206 | 206 | 1.02% | 1.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 250 | 133361 | 302.35 | 2186 | 2139 | 434.0 |
| A | 13 | 254 | 41106 | 89.78 | 2186 | 2139 | 434.0 |
| A | 3 | 137 | 21428 | 44.44 | 2186 | 2139 | 434.0 |
| B | 6 | 159 | 5058302 | 12521.92 | 2141 | 2089 | 403.8 |
| B | 0 | 229 | 785783 | 1940.85 | 2141 | 2089 | 403.8 |
| B | 0 | 156 | 77394 | 186.5 | 2141 | 2089 | 403.8 |
| C | 3 | 233 | 442024 | 916.46 | 2082 | 2097 | 480.0 |
| C | 14 | 238 | 340601 | 705.18 | 2082 | 2097 | 480.0 |
| C | 7 | 247 | 55230 | 110.69 | 2082 | 2097 | 480.0 |
| D | 8 | 195 | 1294803 | 2630.21 | 2105 | 2055 | 491.5 |
| D | 7 | 80 | 797812 | 1619.04 | 2105 | 2055 | 491.5 |
| D | 2 | 250 | 439009 | 889.02 | 2105 | 2055 | 491.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

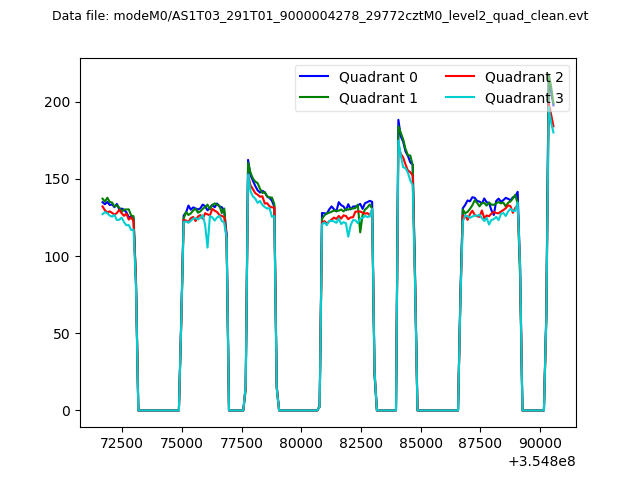

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

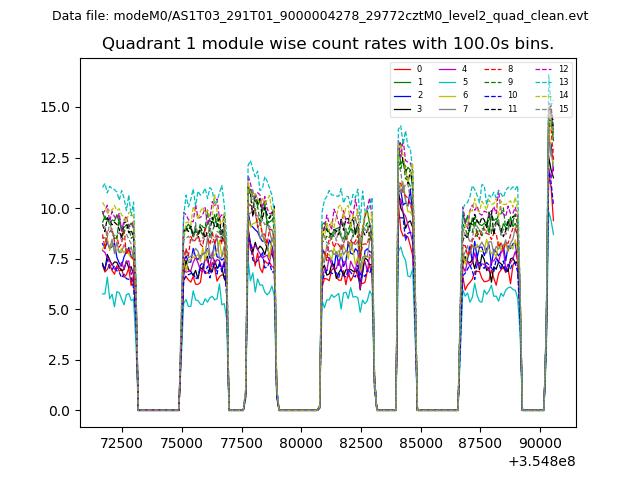

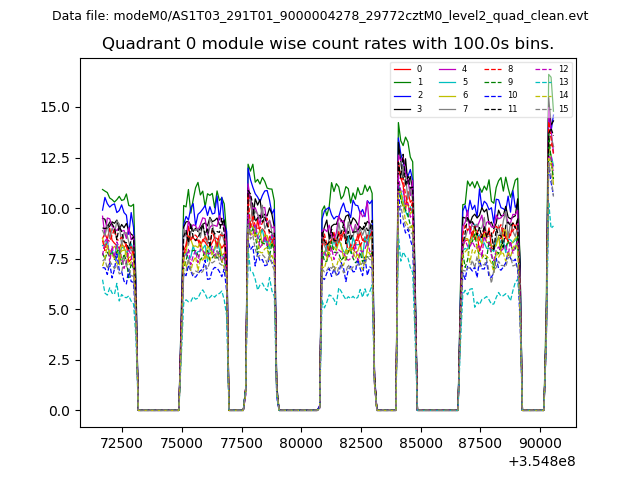

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

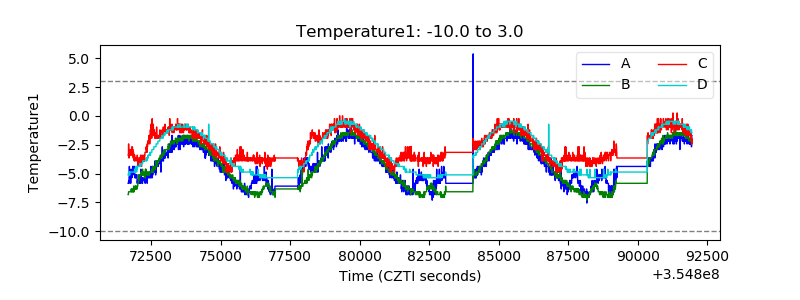

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

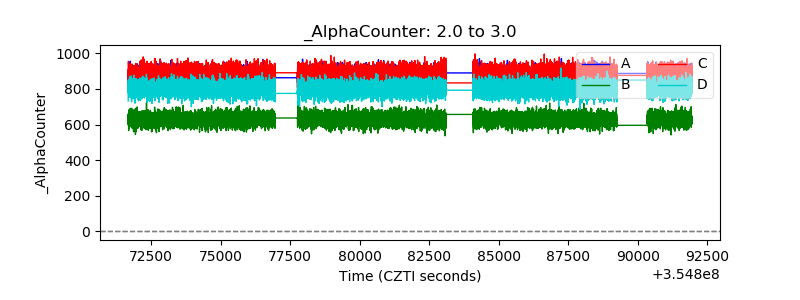

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

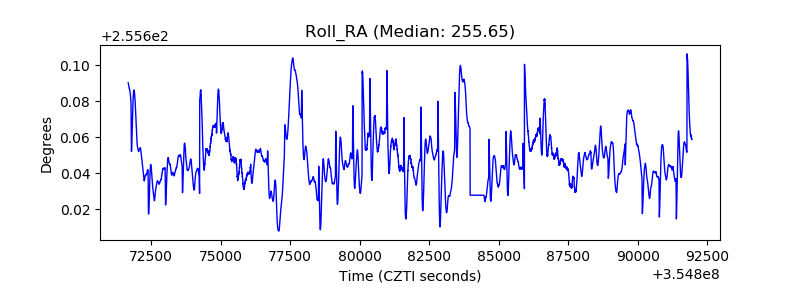

| _Roll_RA |  |
| Veto Counter |  |
