| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29775cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29775cztM0_level2_quad_clean.evt |
| Size (bytes) | 549,642,240 | 91,252,800 |
| Size | 524.2 MB | 87.0 MB |
| Events in quadrant A | 3,454,987 | 606,511 |
| Events in quadrant B | 5,441,963 | 606,561 |
| Events in quadrant C | 3,524,305 | 562,412 |
| Events in quadrant D | 3,803,483 | 553,470 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14229 | 2 |
| B | 0 | 20156 | 2 |
| C | 0 | 14404 | 2 |
| D | 0 | 15481 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6235 | 78 | 1.251002% |
| B | 6235 | 160 | 2.566159% |
| C | 6235 | 140 | 2.245389% |
| D | 6235 | 83 | 1.331195% |

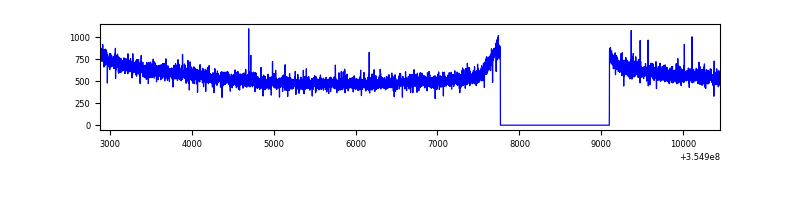

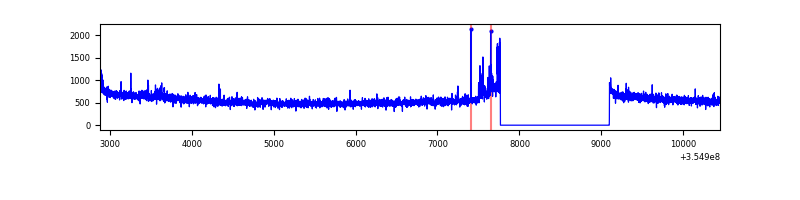

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7564 | 6234 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7564 | 6234 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7564 | 6235 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7564 | 6235 | 22 | 22 | 0.29% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 16097 | 87.09 | 893 | 879 | 174.7 |
| A | 3 | 137 | 7990 | 40.69 | 893 | 879 | 174.7 |
| A | 0 | 226 | 7646 | 38.73 | 893 | 879 | 174.7 |
| B | 6 | 159 | 1896677 | 11770.94 | 883 | 866 | 161.1 |
| B | 0 | 229 | 63998 | 391.98 | 883 | 866 | 161.1 |
| B | 12 | 111 | 18135 | 107.22 | 883 | 866 | 161.1 |
| C | 14 | 238 | 142968 | 752.3 | 830 | 839 | 188.9 |
| C | 3 | 233 | 65711 | 343.37 | 830 | 839 | 188.9 |
| C | 10 | 22 | 57142 | 298.02 | 830 | 839 | 188.9 |
| D | 8 | 195 | 412699 | 2106.1 | 838 | 819 | 195.6 |
| D | 2 | 250 | 110098 | 558.79 | 838 | 819 | 195.6 |
| D | 7 | 80 | 70547 | 356.55 | 838 | 819 | 195.6 |

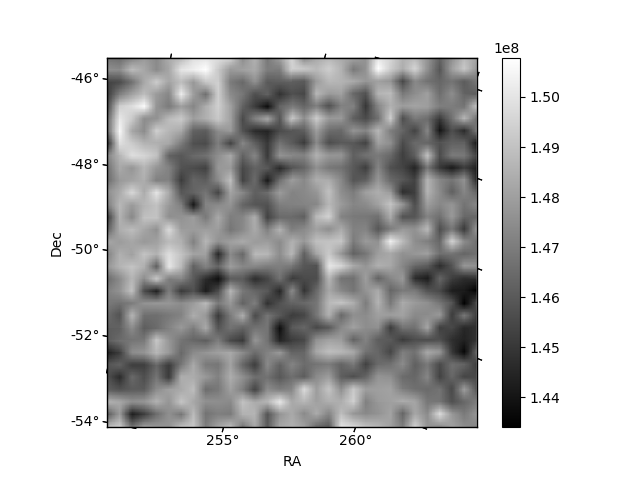

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

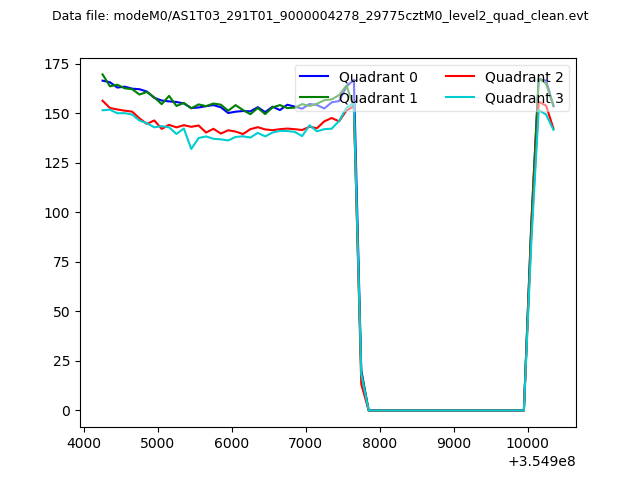

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

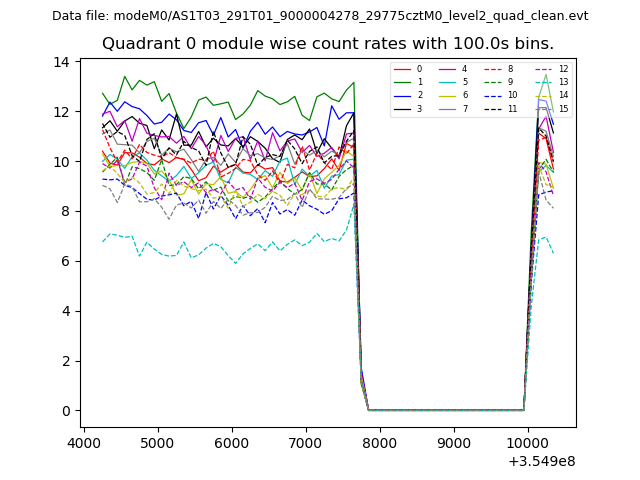

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

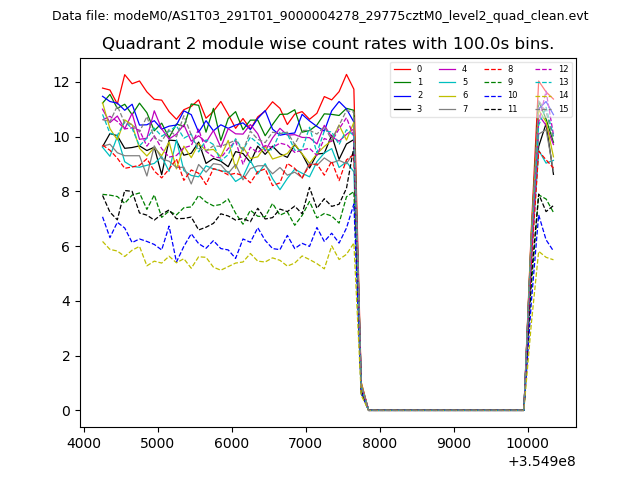

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

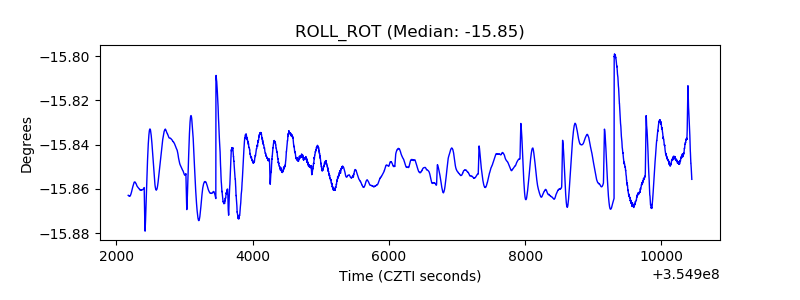

| _ROLL_ROT |  |
| _Roll_DEC |  |

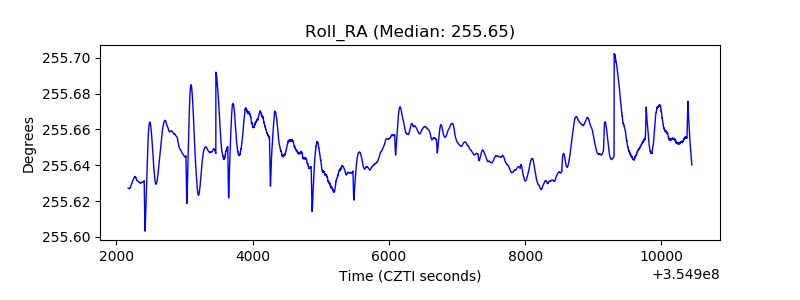

| _Roll_RA |  |
| Veto Counter |  |
