| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29776cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29776cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,905,600 | 105,344,640 |
| Size | 496.8 MB | 100.5 MB |
| Events in quadrant A | 3,250,419 | 714,488 |
| Events in quadrant B | 5,303,424 | 717,332 |
| Events in quadrant C | 3,298,084 | 671,439 |
| Events in quadrant D | 3,505,025 | 655,723 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13447 | 1 |
| B | 0 | 19566 | 1 |
| C | 0 | 13498 | 1 |
| D | 0 | 14345 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6187 | 63 | 1.018264% |
| B | 6188 | 150 | 2.424047% |
| C | 6188 | 104 | 1.680672% |
| D | 6188 | 50 | 0.808016% |

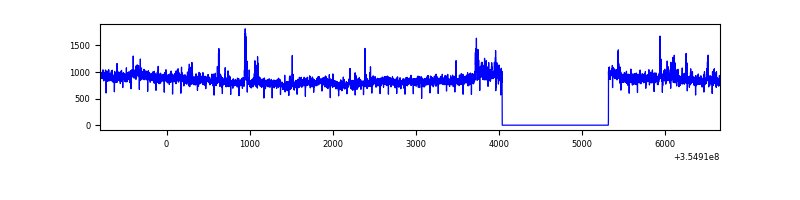

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7466 | 6187 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7468 | 6189 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7468 | 6189 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7468 | 6189 | 21 | 21 | 0.28% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 15329 | 87.52 | 840 | 826 | 165.7 |
| A | 3 | 137 | 7754 | 41.81 | 840 | 826 | 165.7 |
| A | 0 | 226 | 7114 | 37.94 | 840 | 826 | 165.7 |
| B | 6 | 159 | 1876534 | 12147.12 | 834 | 817 | 154.4 |
| B | 0 | 229 | 88130 | 565.44 | 834 | 817 | 154.4 |
| B | 15 | 33 | 39338 | 249.46 | 834 | 817 | 154.4 |
| C | 14 | 238 | 132724 | 726.83 | 791 | 799 | 181.5 |
| C | 3 | 233 | 33175 | 178.37 | 791 | 799 | 181.5 |
| C | 10 | 22 | 25055 | 133.64 | 791 | 799 | 181.5 |
| D | 8 | 195 | 340667 | 1850.81 | 792 | 772 | 183.6 |
| D | 2 | 250 | 85798 | 462.99 | 792 | 772 | 183.6 |
| D | 7 | 80 | 40520 | 216.44 | 792 | 772 | 183.6 |

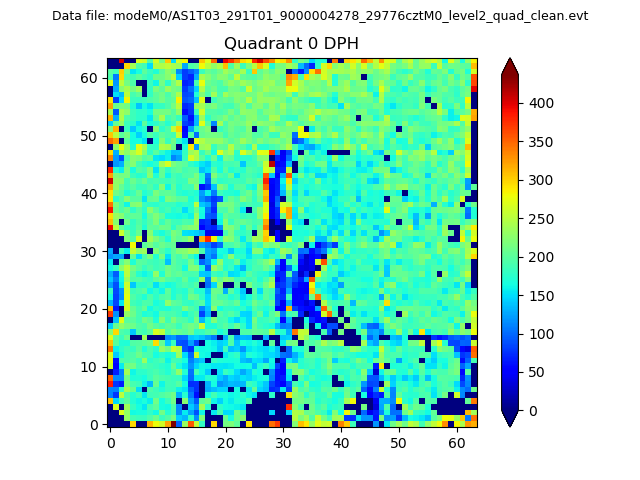

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

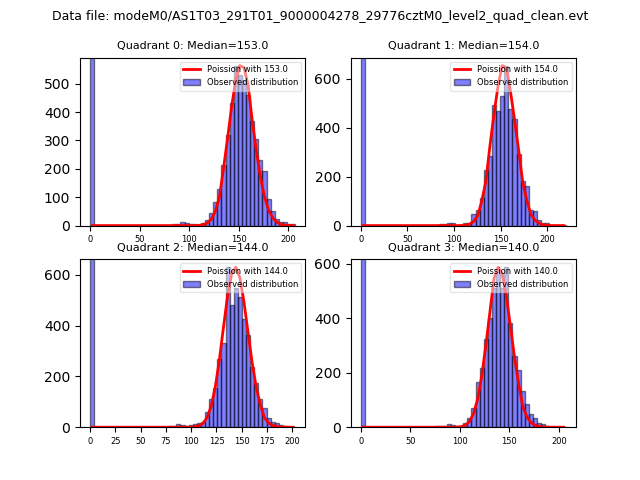

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

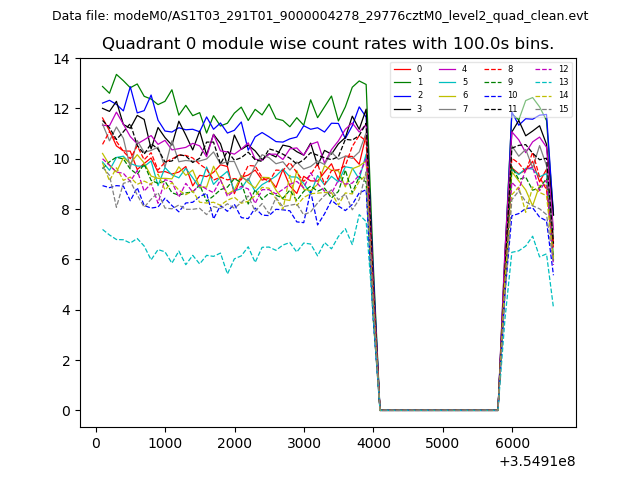

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

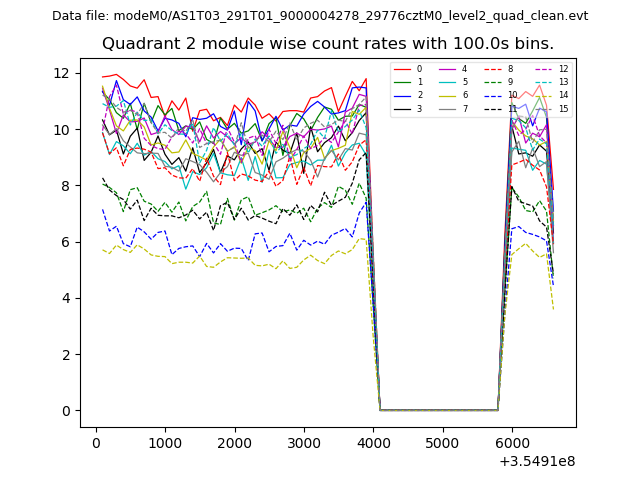

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

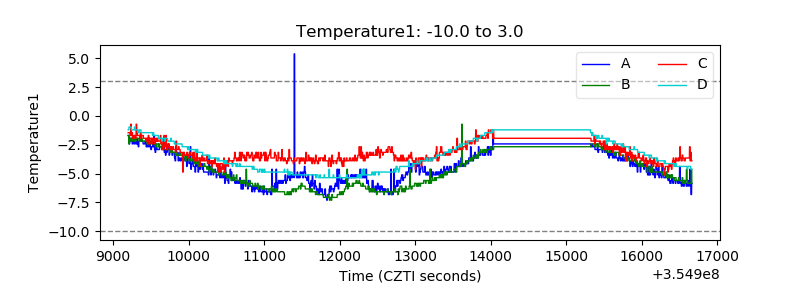

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

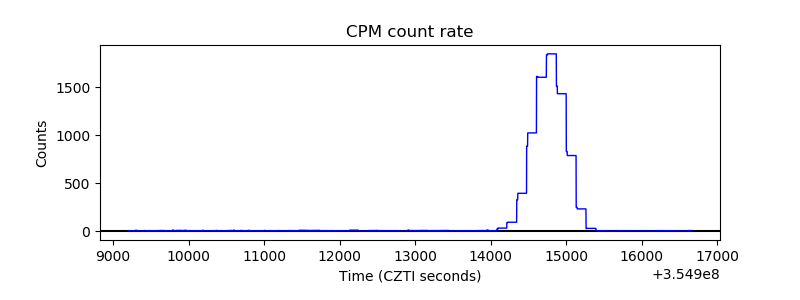

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

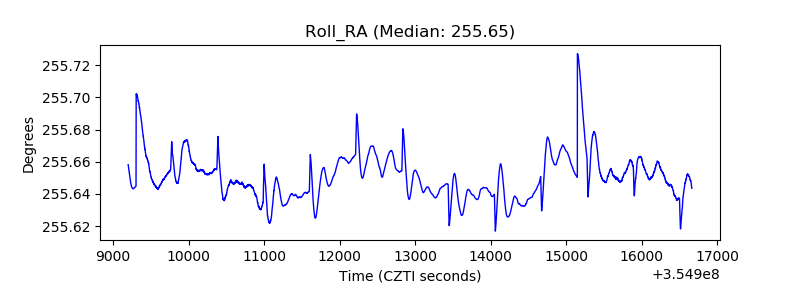

| _Roll_RA |  |
| Veto Counter |  |
