| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29778cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29778cztM0_level2_quad_clean.evt |
| Size (bytes) | 564,013,440 | 111,821,760 |
| Size | 537.9 MB | 106.6 MB |
| Events in quadrant A | 3,583,382 | 740,732 |
| Events in quadrant B | 5,662,280 | 748,486 |
| Events in quadrant C | 3,590,593 | 711,764 |
| Events in quadrant D | 3,764,684 | 692,086 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15154 | 2 |
| B | 0 | 21761 | 2 |
| C | 0 | 15082 | 2 |
| D | 0 | 15705 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7079 | 89 | 1.257240% |
| B | 7079 | 167 | 2.359090% |
| C | 7079 | 101 | 1.426755% |
| D | 7079 | 25 | 0.353157% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7723 | 7079 | 54 | 54 | 0.70% | 0.76% |  |
| B | 7723 | 7079 | 7 | 7 | 0.09% | 0.10% |  |
| C | 7723 | 7079 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7723 | 7079 | 9 | 9 | 0.12% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 211765 | 1208.83 | 873 | 856 | 174.5 |
| A | 13 | 254 | 16465 | 89.46 | 873 | 856 | 174.5 |
| A | 3 | 137 | 8841 | 45.77 | 873 | 856 | 174.5 |
| B | 6 | 159 | 2105592 | 12762.01 | 872 | 850 | 164.9 |
| B | 0 | 229 | 108781 | 654.44 | 872 | 850 | 164.9 |
| B | 12 | 111 | 20281 | 117.82 | 872 | 850 | 164.9 |
| C | 14 | 238 | 137137 | 697.15 | 839 | 843 | 195.5 |
| C | 3 | 233 | 131495 | 668.29 | 839 | 843 | 195.5 |
| C | 7 | 247 | 24960 | 123.36 | 839 | 843 | 195.5 |
| D | 8 | 195 | 464659 | 2319.44 | 841 | 818 | 200.0 |
| D | 2 | 250 | 35590 | 173.88 | 841 | 818 | 200.0 |
| D | 2 | 234 | 30346 | 147.66 | 841 | 818 | 200.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

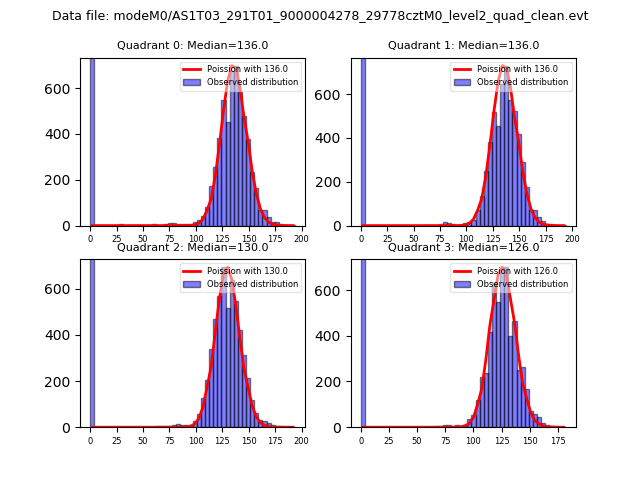

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

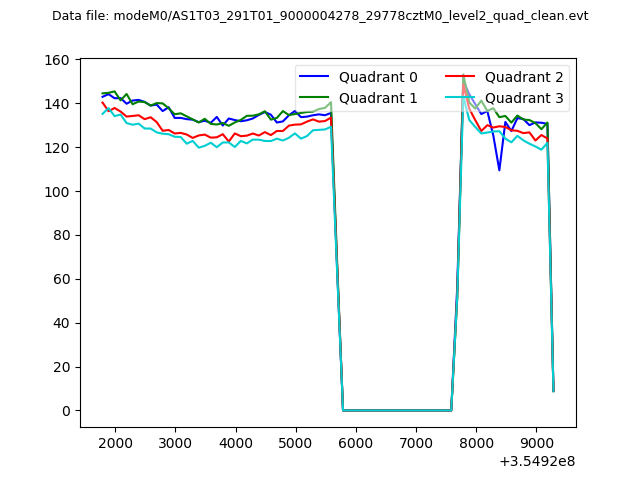

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

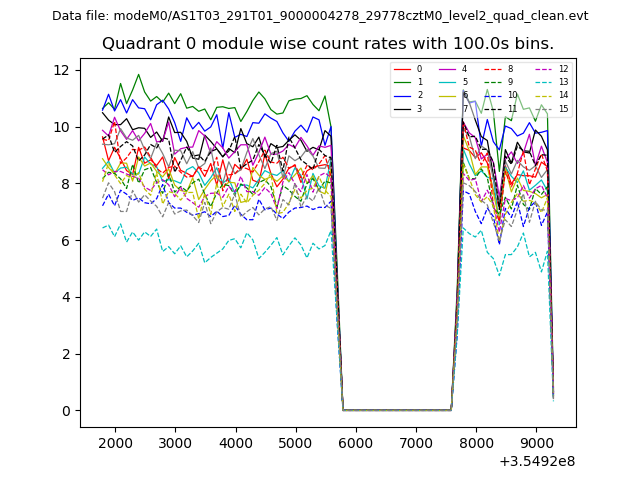

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

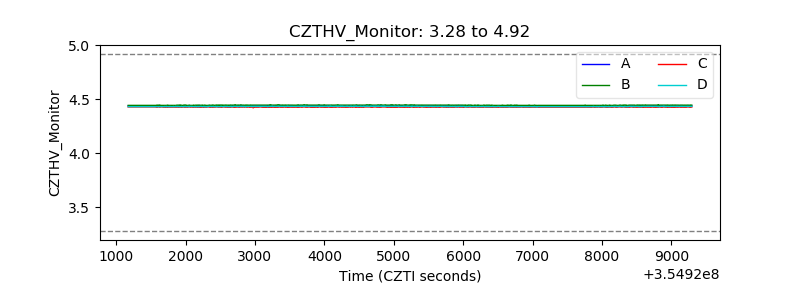

| CZT HV Monitor |  |
| D_VDD |  |

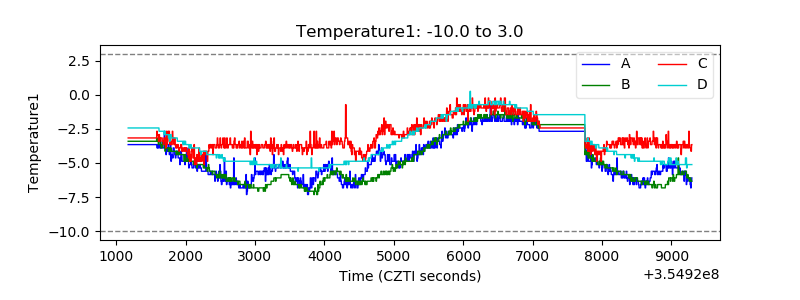

| Temperature 1 |  |
| Veto HV Monitor |  |

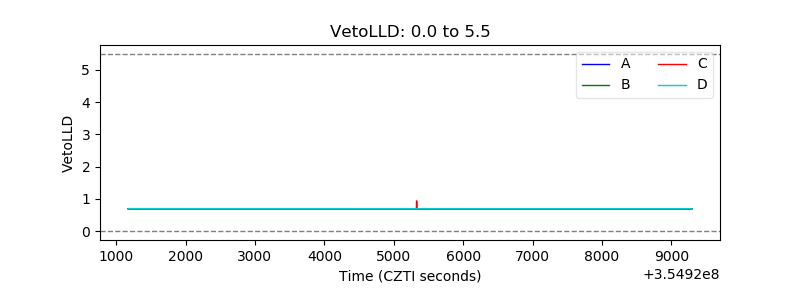

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

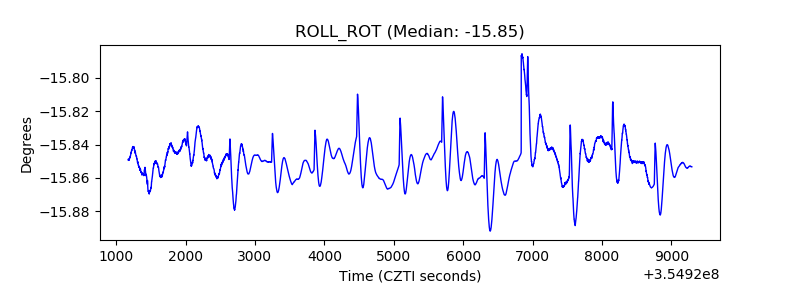

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

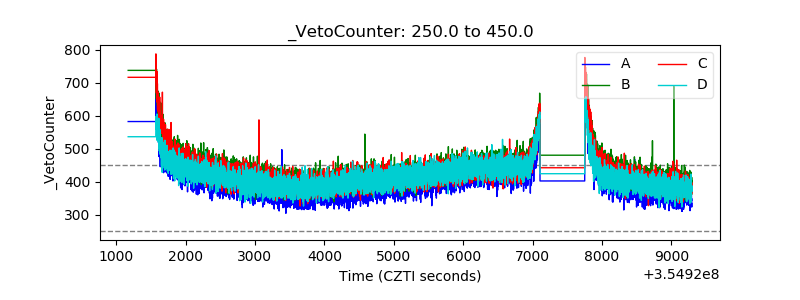

| Veto Counter |  |
