| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29792cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29792cztM0_level2_quad_clean.evt |
| Size (bytes) | 623,401,920 | 108,717,120 |
| Size | 594.5 MB | 103.7 MB |
| Events in quadrant A | 3,468,884 | 730,826 |
| Events in quadrant B | 6,184,444 | 721,300 |
| Events in quadrant C | 3,776,174 | 694,715 |
| Events in quadrant D | 4,979,058 | 660,298 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14712 | 2 |
| B | 0 | 23030 | 2 |
| C | 0 | 15559 | 2 |
| D | 0 | 19424 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6972 | 101 | 1.448652% |
| B | 6973 | 466 | 6.682920% |
| C | 6973 | 165 | 2.366270% |
| D | 6972 | 261 | 3.743546% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9057 | 6974 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9058 | 6975 | 183 | 183 | 2.02% | 2.62% |  |
| C | 9058 | 6975 | 4 | 4 | 0.04% | 0.06% |  |
| D | 9057 | 6974 | 213 | 213 | 2.35% | 3.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 168 | 17322 | 91.79 | 894 | 876 | 179.2 |
| A | 13 | 254 | 14062 | 73.6 | 894 | 876 | 179.2 |
| A | 3 | 137 | 8680 | 43.56 | 894 | 876 | 179.2 |
| B | 6 | 159 | 2034837 | 12225.06 | 878 | 857 | 166.4 |
| B | 0 | 229 | 667188 | 4004.93 | 878 | 857 | 166.4 |
| B | 12 | 111 | 20146 | 115.93 | 878 | 857 | 166.4 |
| C | 3 | 233 | 268986 | 1373.31 | 850 | 858 | 195.2 |
| C | 14 | 238 | 146021 | 743.5 | 850 | 858 | 195.2 |
| C | 10 | 22 | 18125 | 88.44 | 850 | 858 | 195.2 |
| D | 7 | 80 | 637688 | 3172.47 | 846 | 823 | 200.7 |
| D | 8 | 195 | 500108 | 2487.13 | 846 | 823 | 200.7 |
| D | 12 | 227 | 171588 | 850.65 | 846 | 823 | 200.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

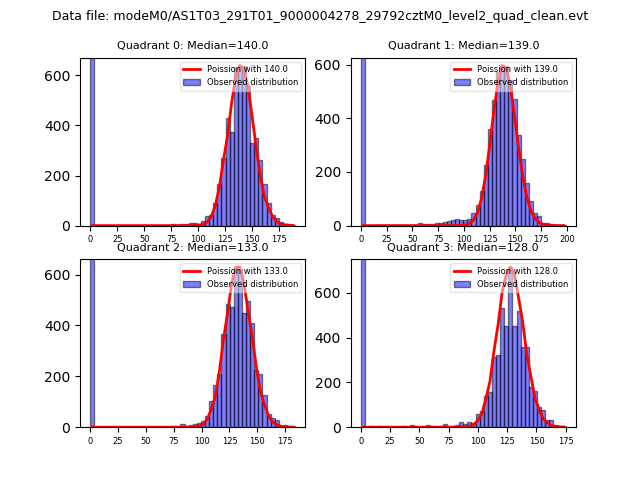

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

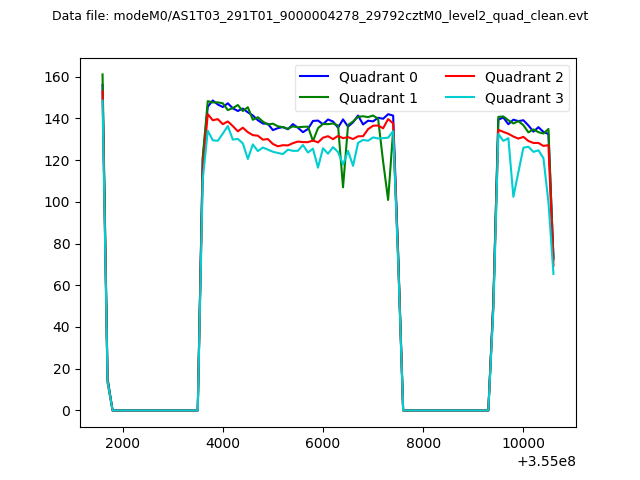

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

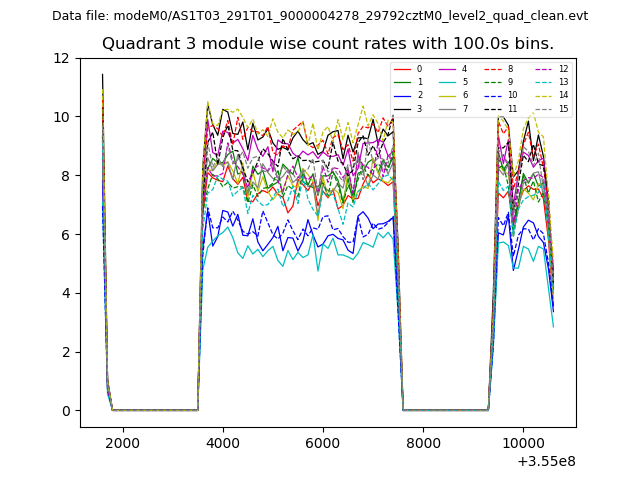

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

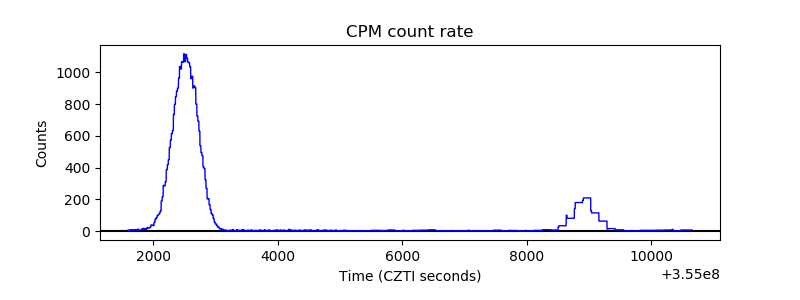

| _CPM_Rate |  |

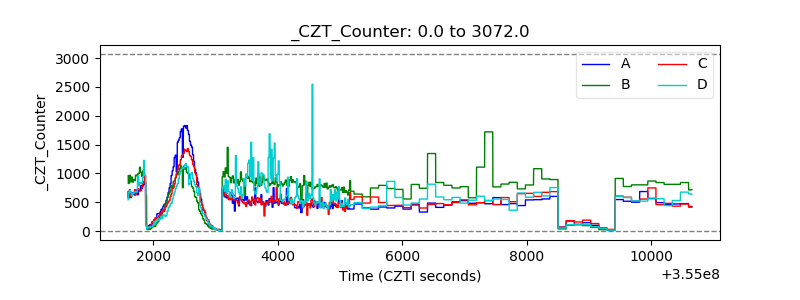

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

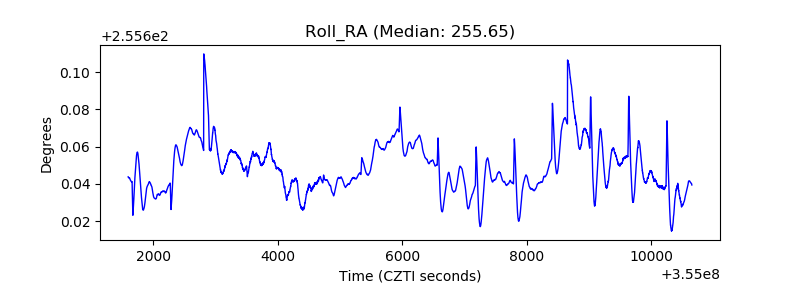

| _Roll_RA |  |
| Veto Counter |  |
