| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29831cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29831cztM0_level2_quad_clean.evt |
| Size (bytes) | 729,463,680 | 66,283,200 |
| Size | 695.7 MB | 63.2 MB |
| Events in quadrant A | 3,314,723 | 441,719 |
| Events in quadrant B | 5,057,354 | 438,123 |
| Events in quadrant C | 3,273,664 | 412,881 |
| Events in quadrant D | 10,032,077 | 285,094 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13654 | 3 |
| B | 0 | 18887 | 1 |
| C | 0 | 13523 | 1 |
| D | 0 | 34110 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6137 | 75 | 1.222095% |
| B | 6137 | 112 | 1.824996% |
| C | 6138 | 102 | 1.661779% |
| D | 6138 | 2620 | 42.684914% |

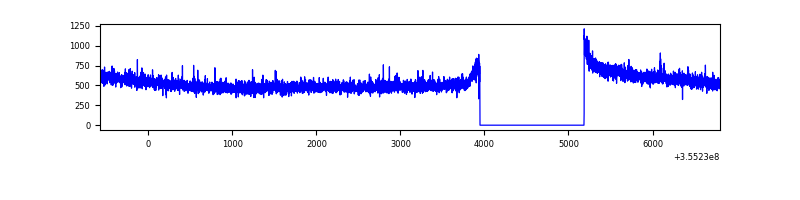

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7377 | 6138 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7377 | 6138 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7378 | 6139 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7378 | 6138 | 2241 | 2241 | 30.37% | 36.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 20018 | 115.42 | 852 | 840 | 166.2 |
| A | 13 | 254 | 11204 | 62.38 | 852 | 840 | 166.2 |
| A | 3 | 137 | 7391 | 39.43 | 852 | 840 | 166.2 |
| B | 6 | 159 | 1759100 | 11290.93 | 835 | 819 | 155.7 |
| B | 3 | 209 | 18350 | 112.58 | 835 | 819 | 155.7 |
| B | 12 | 111 | 17535 | 107.34 | 835 | 819 | 155.7 |
| C | 14 | 238 | 133156 | 723.16 | 795 | 802 | 183.0 |
| C | 3 | 233 | 21872 | 115.12 | 795 | 802 | 183.0 |
| C | 2 | 114 | 14642 | 75.62 | 795 | 802 | 183.0 |
| D | 7 | 80 | 5873413 | 38035.96 | 661 | 645 | 154.4 |
| D | 13 | 189 | 980715 | 6347.59 | 661 | 645 | 154.4 |
| D | 8 | 195 | 369995 | 2392.16 | 661 | 645 | 154.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

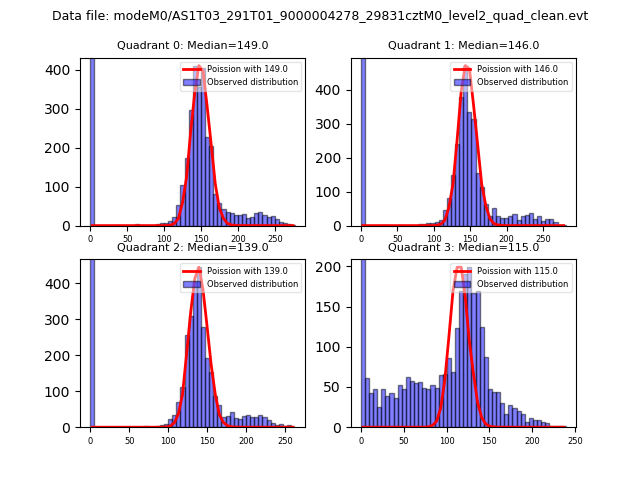

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

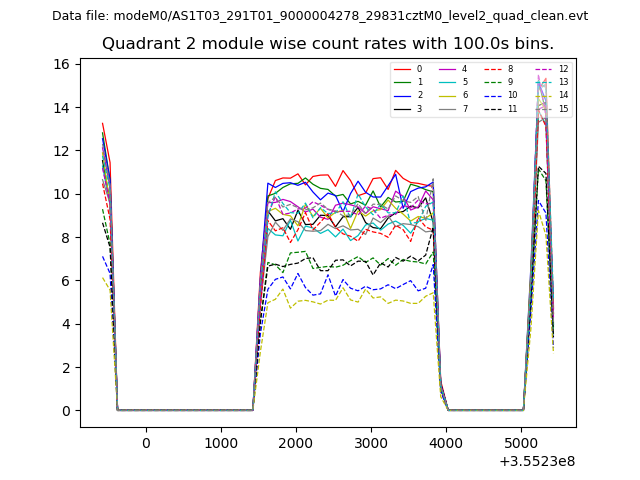

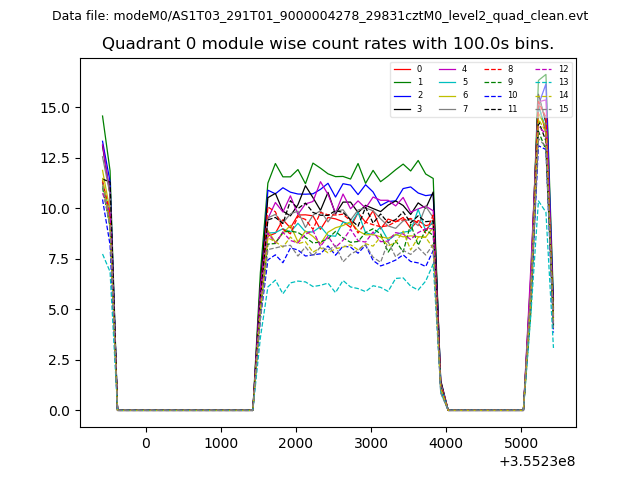

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

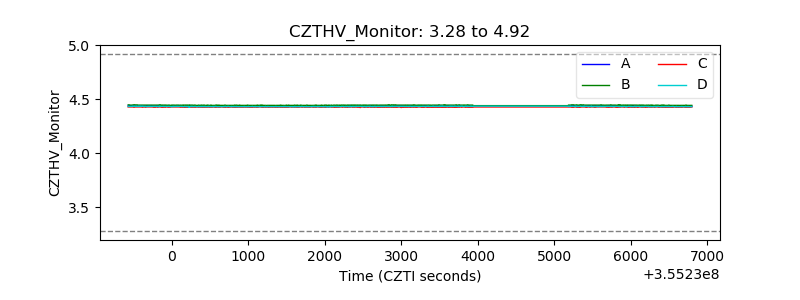

| CZT HV Monitor |  |

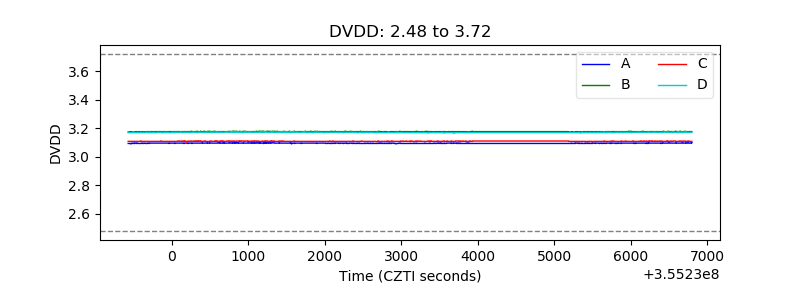

| D_VDD |  |

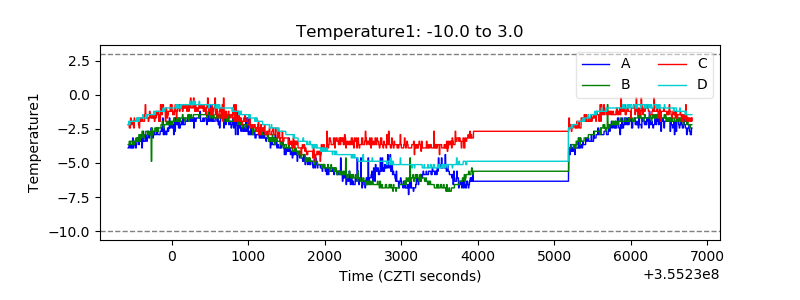

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

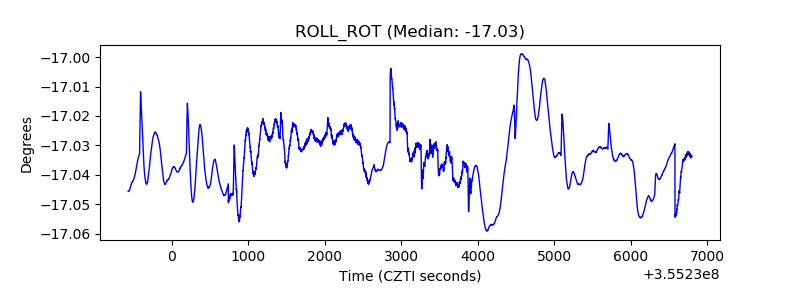

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
