| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29837cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29837cztM0_level2_quad_clean.evt |
| Size (bytes) | 711,095,040 | 109,676,160 |
| Size | 678.2 MB | 104.6 MB |
| Events in quadrant A | 3,698,305 | 737,144 |
| Events in quadrant B | 5,953,718 | 736,971 |
| Events in quadrant C | 3,762,965 | 699,222 |
| Events in quadrant D | 7,608,841 | 621,674 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15803 | 1 |
| B | 0 | 23038 | 1 |
| C | 0 | 15923 | 1 |
| D | 0 | 27645 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7561 | 29 | 0.383547% |
| B | 7561 | 139 | 1.838381% |
| C | 7561 | 344 | 4.549663% |
| D | 7561 | 1402 | 18.542521% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7786 | 7562 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7786 | 7562 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7786 | 7562 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7786 | 7562 | 1073 | 1073 | 13.78% | 14.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 99138 | 530.07 | 927 | 908 | 185.3 |
| A | 13 | 254 | 14255 | 72.02 | 927 | 908 | 185.3 |
| A | 3 | 137 | 9370 | 45.66 | 927 | 908 | 185.3 |
| B | 6 | 159 | 2246239 | 12650.04 | 923 | 900 | 177.5 |
| B | 0 | 189 | 53087 | 294.02 | 923 | 900 | 177.5 |
| B | 12 | 111 | 21625 | 116.76 | 923 | 900 | 177.5 |
| C | 14 | 238 | 203468 | 1009.51 | 864 | 870 | 200.7 |
| C | 14 | 254 | 96281 | 475.41 | 864 | 870 | 200.7 |
| C | 10 | 22 | 41136 | 200.64 | 864 | 870 | 200.7 |
| D | 7 | 80 | 3792452 | 19622.83 | 810 | 788 | 193.2 |
| D | 8 | 195 | 476045 | 2459.58 | 810 | 788 | 193.2 |
| D | 2 | 250 | 171698 | 884.5 | 810 | 788 | 193.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

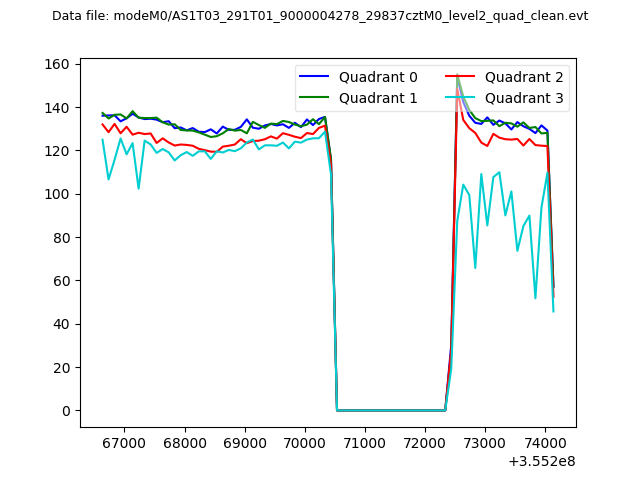

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

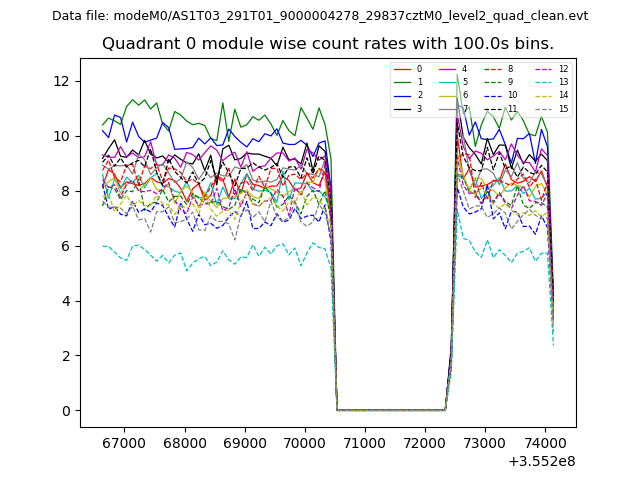

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

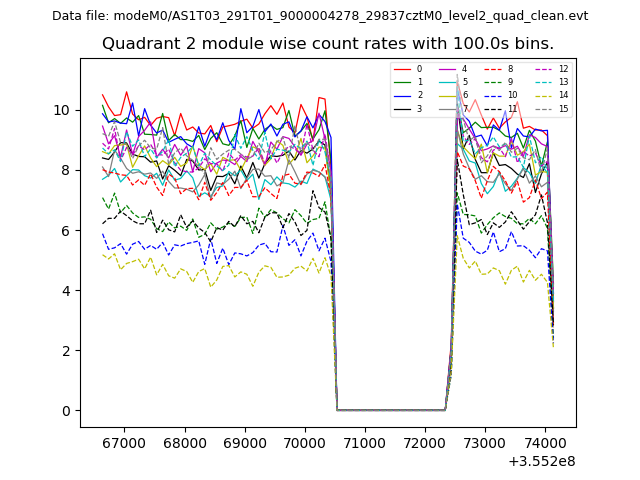

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
