| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29845cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29845cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,528,770,240 | 240,096,960 |
| Size | 1.4 GB | 229.0 MB |
| Events in quadrant A | 10,354,068 | 1,556,973 |
| Events in quadrant B | 13,971,066 | 1,561,732 |
| Events in quadrant C | 9,566,242 | 1,479,955 |
| Events in quadrant D | 11,213,000 | 1,450,608 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 362 | 0 |
| B | 0 | 362 | 0 |
| C | 0 | 362 | 0 |
| D | 0 | 362 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42123 | 4 |
| B | 0 | 53850 | 4 |
| C | 0 | 39400 | 4 |
| D | 0 | 45079 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39 | 0 |
| B | 0 | 39 | 0 |
| C | 0 | 39 | 0 |
| D | 0 | 39 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17737 | 638 | 3.597001% |
| B | 17738 | 365 | 2.057729% |
| C | 17738 | 506 | 2.852633% |
| D | 17738 | 380 | 2.142293% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21627 | 17741 | 312 | 312 | 1.44% | 1.76% |  |
| B | 21628 | 17742 | 11 | 11 | 0.05% | 0.06% |  |
| C | 21628 | 17742 | 1 | 1 | 0.00% | 0.01% |  |
| D | 21628 | 17742 | 128 | 128 | 0.59% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1549143 | 3445.18 | 2271 | 2226 | 449.0 |
| A | 13 | 254 | 34813 | 72.58 | 2271 | 2226 | 449.0 |
| A | 3 | 137 | 21417 | 42.74 | 2271 | 2226 | 449.0 |
| B | 6 | 159 | 5077535 | 12020.18 | 2244 | 2189 | 422.2 |
| B | 12 | 111 | 51146 | 115.95 | 2244 | 2189 | 422.2 |
| B | 11 | 111 | 46465 | 104.86 | 2244 | 2189 | 422.2 |
| C | 3 | 233 | 606888 | 1207.59 | 2166 | 2181 | 500.8 |
| C | 14 | 238 | 391843 | 778.15 | 2166 | 2181 | 500.8 |
| C | 14 | 254 | 65473 | 126.39 | 2166 | 2181 | 500.8 |
| D | 8 | 195 | 1415850 | 2763.97 | 2196 | 2140 | 511.5 |
| D | 7 | 80 | 537156 | 1046.02 | 2196 | 2140 | 511.5 |
| D | 7 | 238 | 370915 | 721.0 | 2196 | 2140 | 511.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

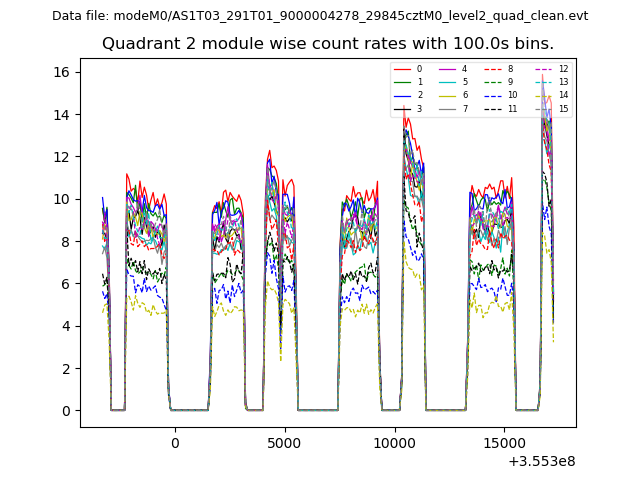

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

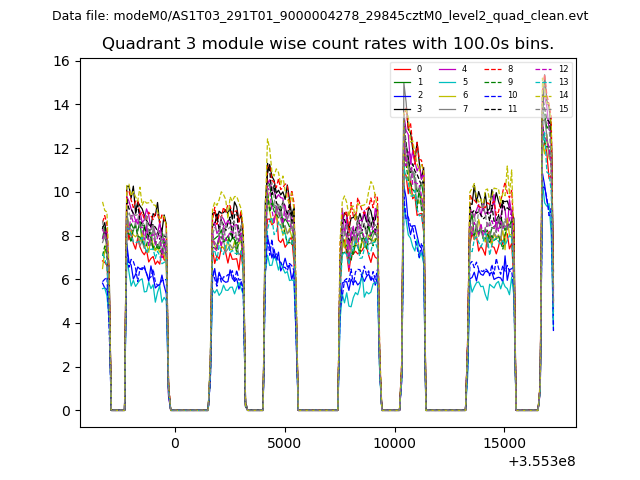

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

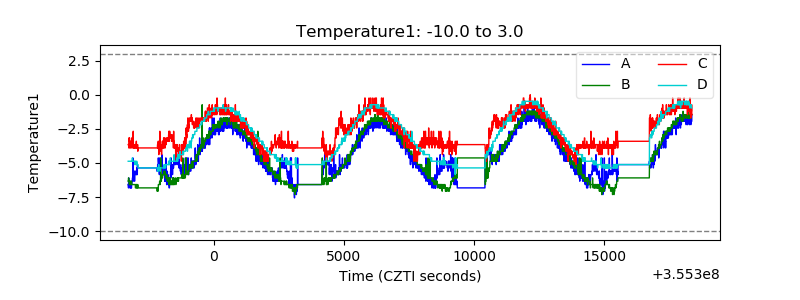

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

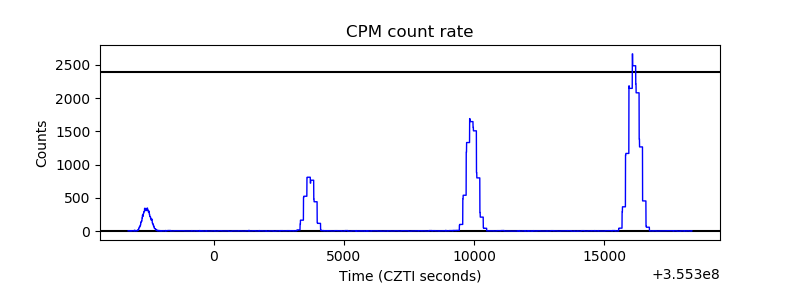

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

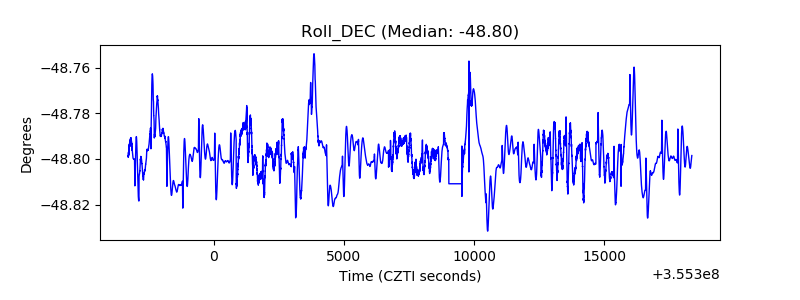

| _Roll_DEC |  |
| _Roll_RA |  |

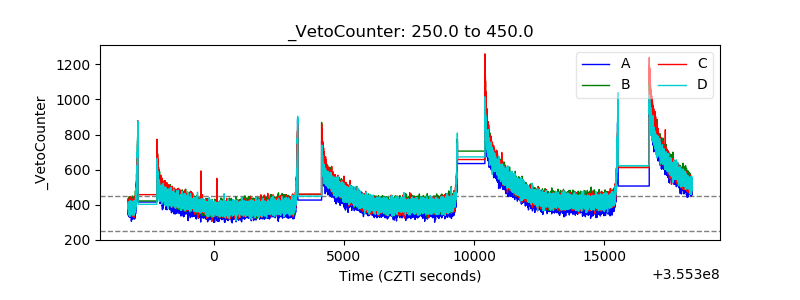

| Veto Counter |  |
