| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29846cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29846cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,063,040 | 68,333,760 |
| Size | 519.8 MB | 65.2 MB |
| Events in quadrant A | 3,474,822 | 427,321 |
| Events in quadrant B | 5,219,347 | 422,337 |
| Events in quadrant C | 3,558,192 | 396,088 |
| Events in quadrant D | 3,839,317 | 394,469 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14328 | 1 |
| B | 0 | 19148 | 1 |
| C | 0 | 14474 | 1 |
| D | 0 | 15485 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6138 | 84 | 1.368524% |
| B | 6139 | 139 | 2.264212% |
| C | 6138 | 165 | 2.688172% |
| D | 6138 | 104 | 1.694363% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7413 | 6139 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7414 | 6140 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7413 | 6139 | 8 | 8 | 0.11% | 0.13% |  |
| D | 7413 | 6139 | 25 | 25 | 0.34% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 38431 | 220.2 | 879 | 866 | 170.6 |
| A | 12 | 96 | 26585 | 150.76 | 879 | 866 | 170.6 |
| A | 13 | 254 | 12424 | 67.75 | 879 | 866 | 170.6 |
| B | 6 | 159 | 1759227 | 11107.87 | 860 | 843 | 158.3 |
| B | 0 | 190 | 71659 | 447.35 | 860 | 843 | 158.3 |
| B | 12 | 111 | 18025 | 108.54 | 860 | 843 | 158.3 |
| C | 3 | 233 | 149682 | 799.34 | 815 | 823 | 186.2 |
| C | 14 | 238 | 136288 | 727.41 | 815 | 823 | 186.2 |
| C | 10 | 22 | 83426 | 443.56 | 815 | 823 | 186.2 |
| D | 8 | 195 | 277476 | 1436.39 | 834 | 816 | 192.6 |
| D | 13 | 153 | 141102 | 728.35 | 834 | 816 | 192.6 |
| D | 7 | 80 | 85721 | 440.82 | 834 | 816 | 192.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

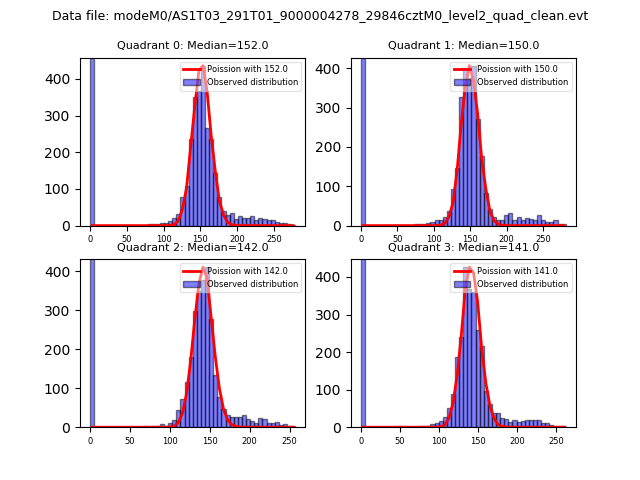

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
