| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29851cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29851cztM0_level2_quad_clean.evt |
| Size (bytes) | 596,943,360 | 103,518,720 |
| Size | 569.3 MB | 98.7 MB |
| Events in quadrant A | 3,452,701 | 682,395 |
| Events in quadrant B | 5,567,898 | 683,922 |
| Events in quadrant C | 3,815,122 | 648,102 |
| Events in quadrant D | 4,763,748 | 627,503 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14736 | 1 |
| B | 0 | 21450 | 1 |
| C | 0 | 15828 | 1 |
| D | 0 | 19019 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7079 | 64 | 0.904082% |
| B | 7080 | 87 | 1.228814% |
| C | 7080 | 83 | 1.172316% |
| D | 7080 | 116 | 1.638418% |

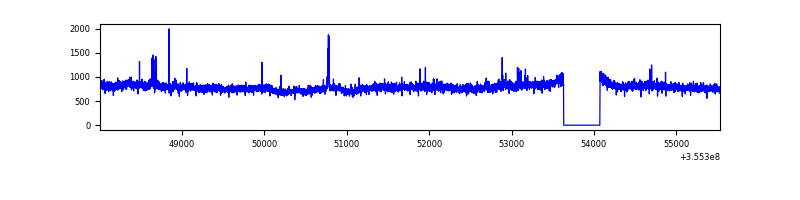

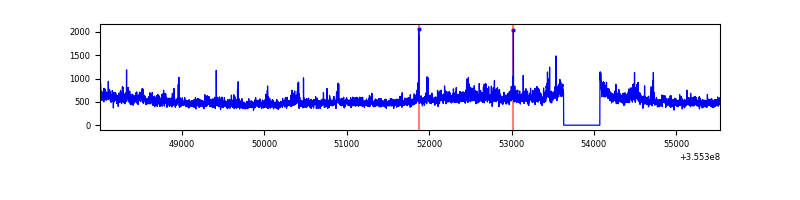

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

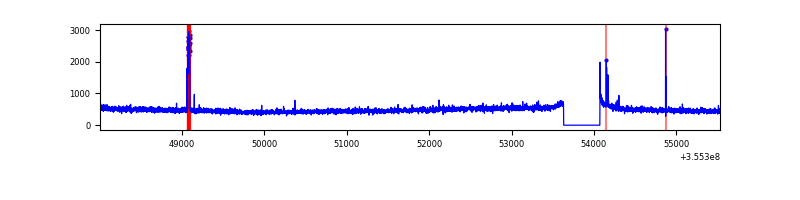

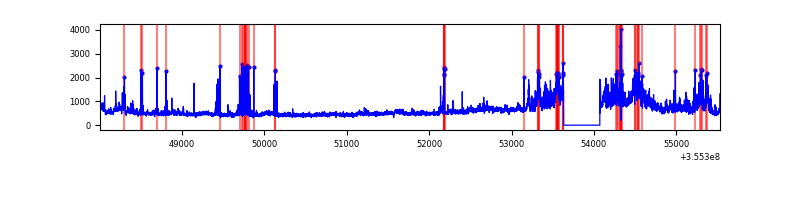

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7519 | 7079 | 25 | 25 | 0.33% | 0.35% |  |
| B | 7520 | 7080 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7520 | 7080 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7520 | 7080 | 65 | 65 | 0.86% | 0.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 72698 | 410.1 | 871 | 852 | 175.2 |
| A | 0 | 13 | 17401 | 94.46 | 871 | 852 | 175.2 |
| A | 13 | 254 | 13090 | 69.85 | 871 | 852 | 175.2 |
| B | 6 | 159 | 2110264 | 12850.48 | 867 | 848 | 164.2 |
| B | 0 | 190 | 32449 | 192.51 | 867 | 848 | 164.2 |
| B | 12 | 111 | 20299 | 118.49 | 867 | 848 | 164.2 |
| C | 3 | 233 | 398330 | 2056.72 | 831 | 838 | 193.3 |
| C | 14 | 238 | 143113 | 736.16 | 831 | 838 | 193.3 |
| C | 2 | 114 | 16631 | 81.72 | 831 | 838 | 193.3 |
| D | 8 | 195 | 1244552 | 6255.67 | 832 | 811 | 198.8 |
| D | 2 | 250 | 160870 | 805.05 | 832 | 811 | 198.8 |
| D | 7 | 80 | 56412 | 279.66 | 832 | 811 | 198.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

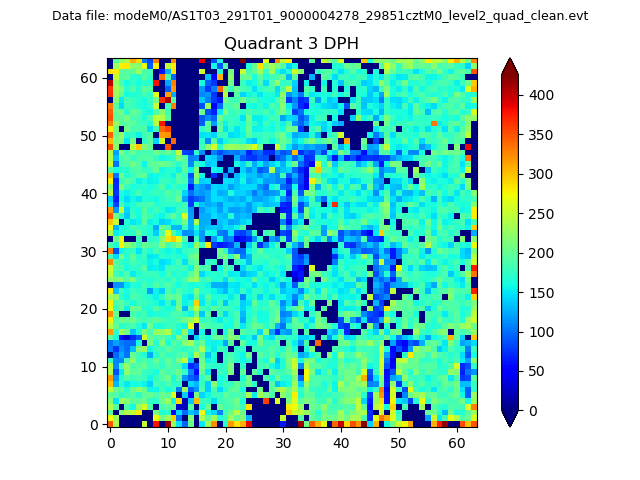

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

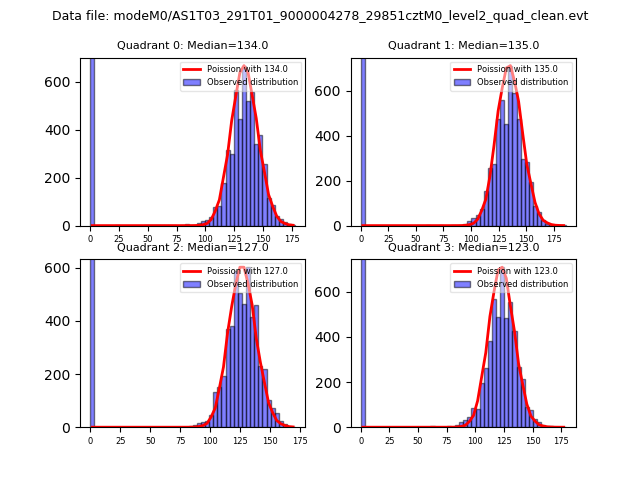

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

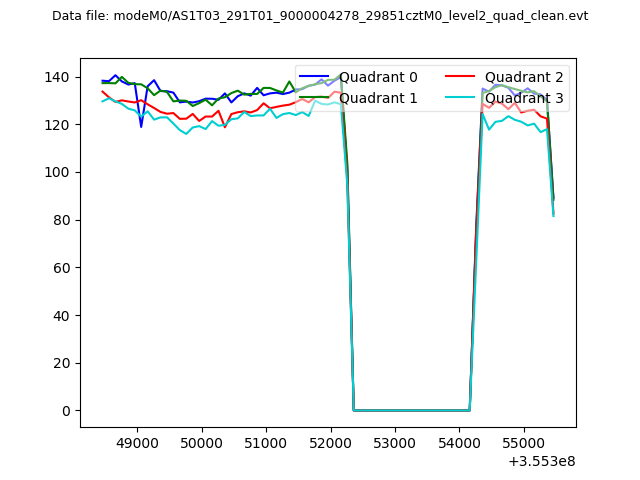

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

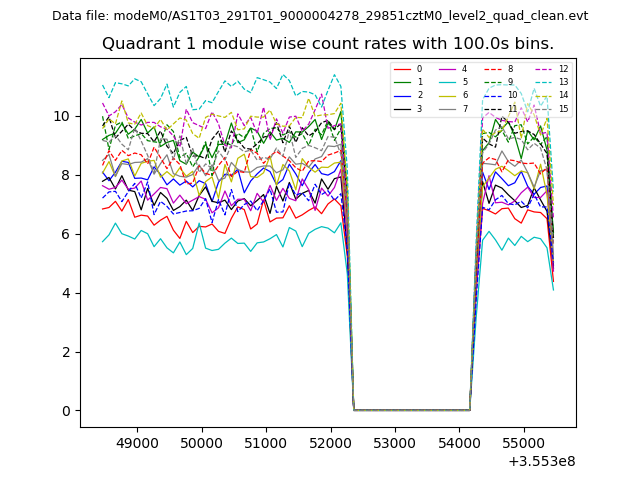

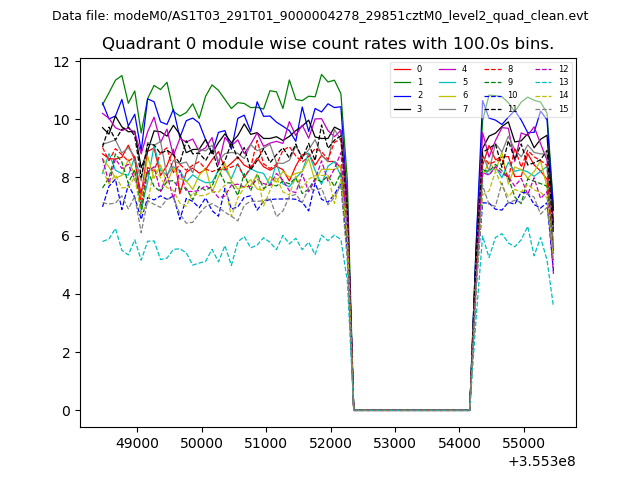

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

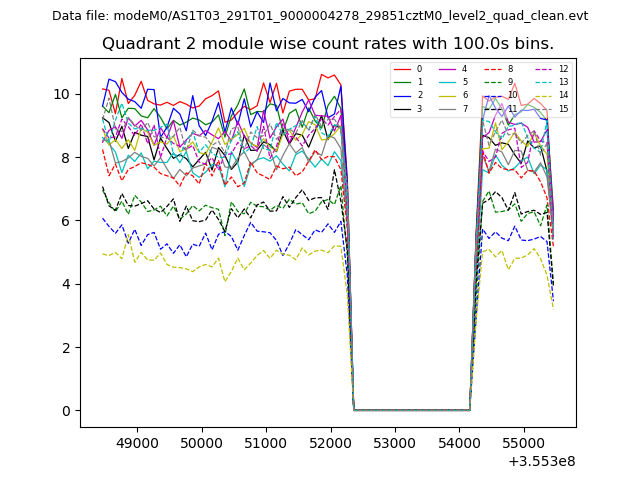

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

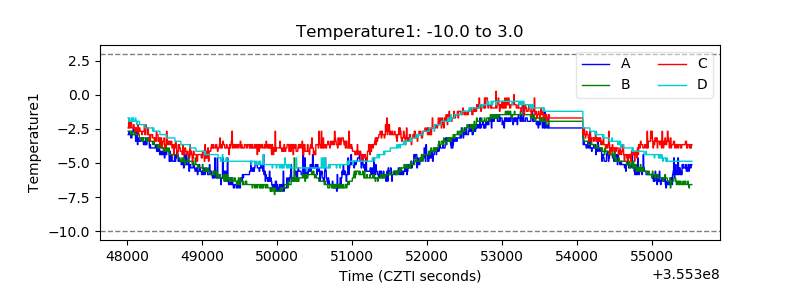

| Temperature 1 |  |

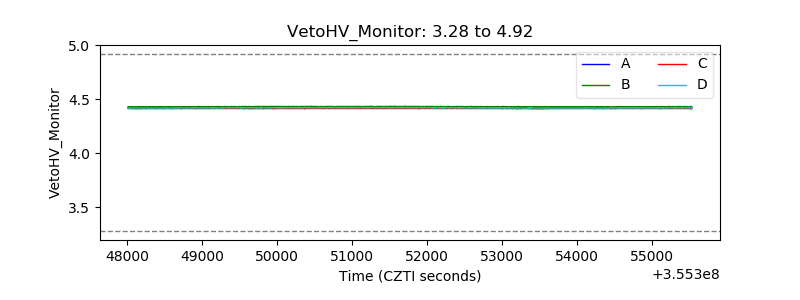

| Veto HV Monitor |  |

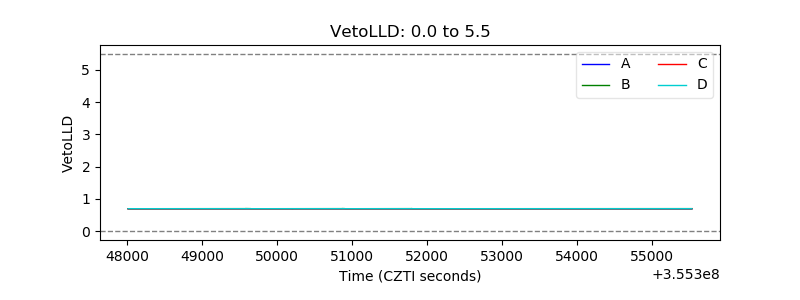

| Veto LLD |  |

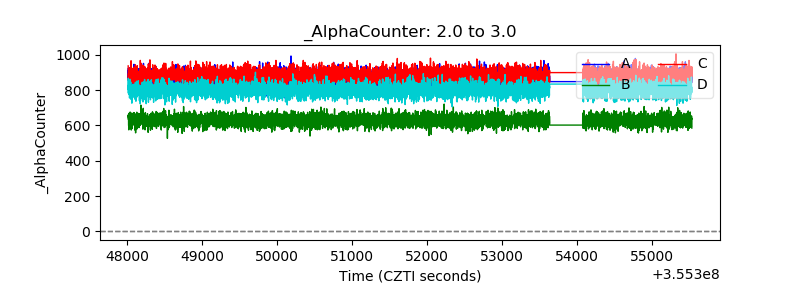

| Alpha Counter |  |

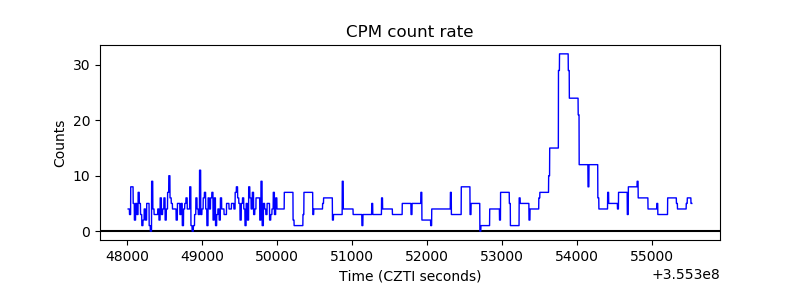

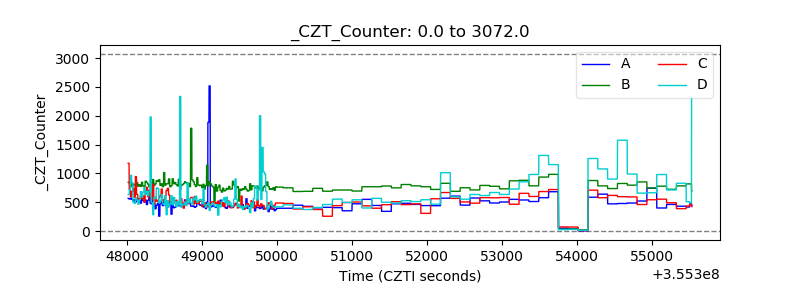

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

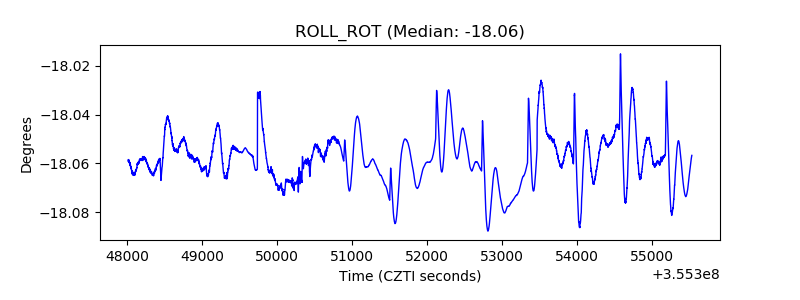

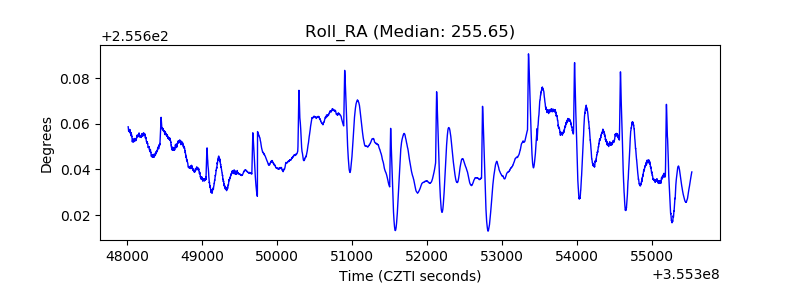

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

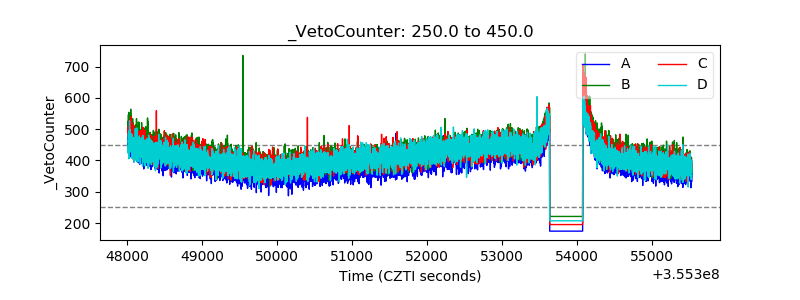

| Veto Counter |  |
