| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29859cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29859cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,542,305,600 | 391,438,080 |
| Size | 2.4 GB | 373.3 MB |
| Events in quadrant A | 14,453,743 | 2,534,262 |
| Events in quadrant B | 22,745,336 | 2,541,204 |
| Events in quadrant C | 20,289,824 | 2,392,929 |
| Events in quadrant D | 17,523,351 | 2,362,193 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 600 | 0 |
| B | 0 | 600 | 0 |
| C | 0 | 600 | 0 |
| D | 0 | 600 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 61851 | 7 |
| B | 0 | 89181 | 7 |
| C | 0 | 80410 | 7 |
| D | 0 | 71143 | 7 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 29461 | 333 | 1.130308% |
| B | 29462 | 571 | 1.938090% |
| C | 29462 | 1077 | 3.655556% |
| D | 29462 | 563 | 1.910936% |

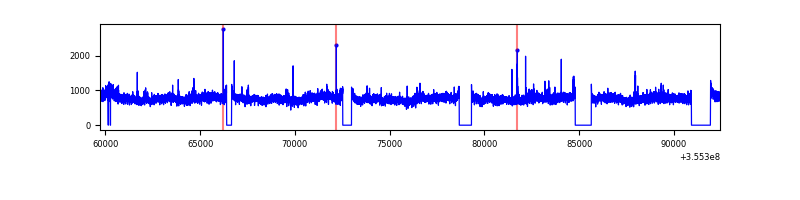

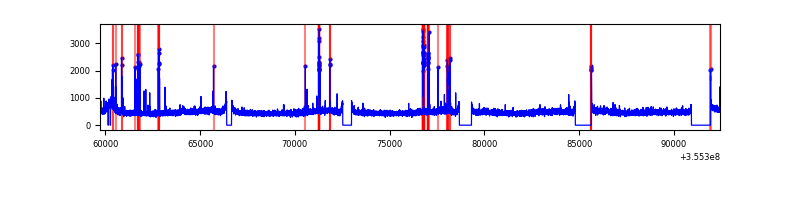

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 32711 | 29467 | 90 | 90 | 0.28% | 0.31% |  |
| B | 32712 | 29468 | 3 | 3 | 0.01% | 0.01% |  |
| C | 32712 | 29468 | 63 | 63 | 0.19% | 0.21% |  |
| D | 32712 | 29468 | 384 | 384 | 1.17% | 1.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 346540 | 475.82 | 3609 | 3532 | 720.9 |
| A | 15 | 174 | 145364 | 196.75 | 3609 | 3532 | 720.9 |
| A | 13 | 254 | 55357 | 71.89 | 3609 | 3532 | 720.9 |
| B | 6 | 159 | 8461793 | 12484.18 | 3570 | 3477 | 677.5 |
| B | 0 | 190 | 189038 | 273.88 | 3570 | 3477 | 677.5 |
| B | 12 | 111 | 85064 | 120.42 | 3570 | 3477 | 677.5 |
| C | 3 | 233 | 5776825 | 7177.21 | 3442 | 3456 | 804.4 |
| C | 14 | 238 | 607031 | 750.34 | 3442 | 3456 | 804.4 |
| C | 10 | 22 | 345784 | 425.57 | 3442 | 3456 | 804.4 |
| D | 7 | 80 | 1850785 | 2234.34 | 3488 | 3397 | 826.8 |
| D | 8 | 195 | 860025 | 1036.05 | 3488 | 3397 | 826.8 |
| D | 12 | 227 | 849139 | 1022.89 | 3488 | 3397 | 826.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

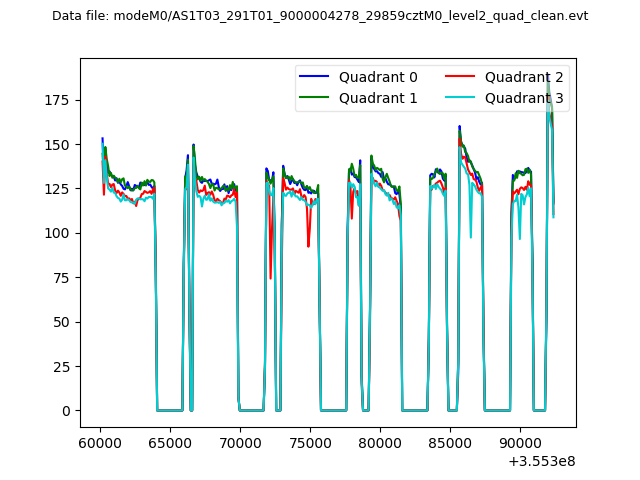

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

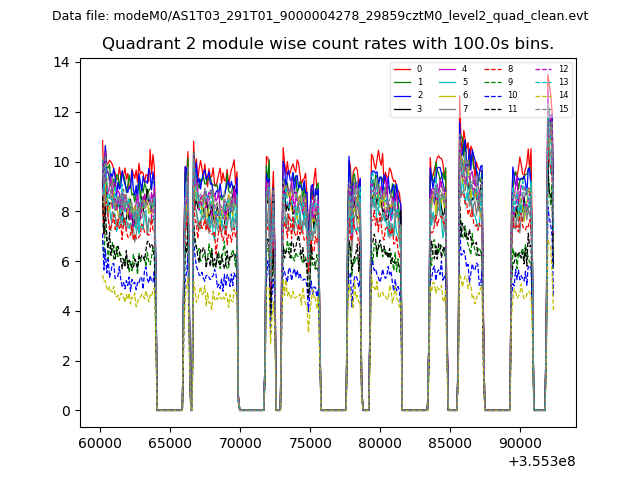

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

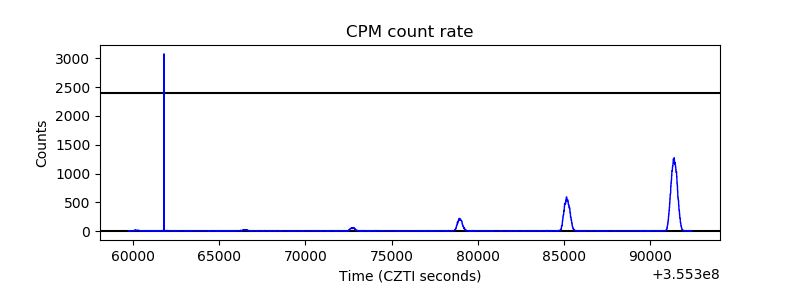

| _CPM_Rate |  |
| CZT Counter |  |

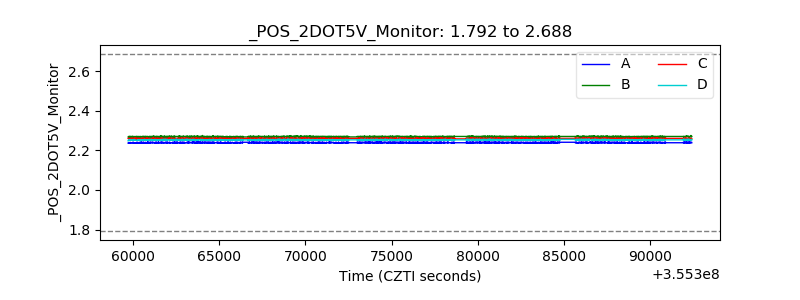

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

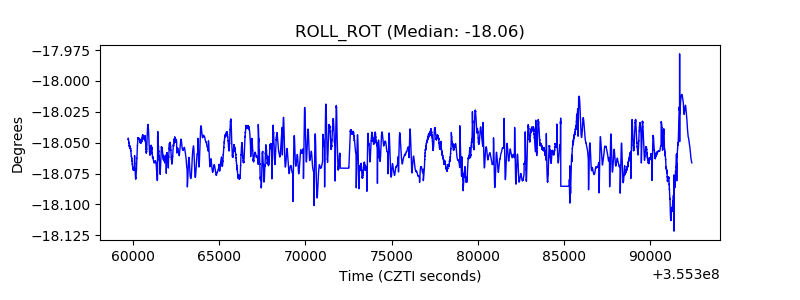

| _ROLL_ROT |  |
| _Roll_DEC |  |

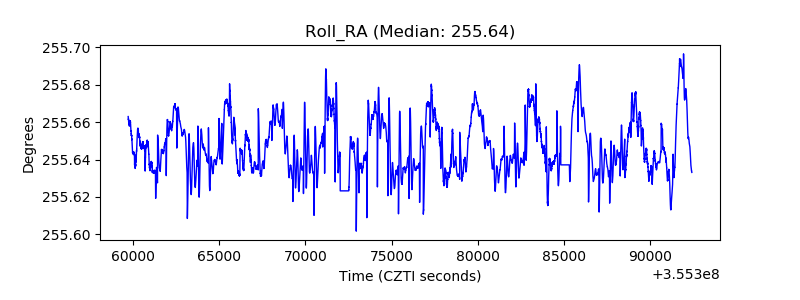

| _Roll_RA |  |
| Veto Counter |  |
