| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29861cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29861cztM0_level2_quad_clean.evt |
| Size (bytes) | 633,191,040 | 69,966,720 |
| Size | 603.9 MB | 66.7 MB |
| Events in quadrant A | 3,642,586 | 438,864 |
| Events in quadrant B | 5,622,031 | 434,700 |
| Events in quadrant C | 5,252,511 | 401,665 |
| Events in quadrant D | 4,234,214 | 403,882 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14938 | 1 |
| B | 0 | 20625 | 1 |
| C | 0 | 20258 | 1 |
| D | 0 | 16847 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6293 | 121 | 1.922771% |
| B | 6294 | 190 | 3.018748% |
| C | 6294 | 283 | 4.496346% |
| D | 6294 | 180 | 2.859867% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7583 | 6294 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7584 | 6295 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7584 | 6295 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7584 | 6295 | 72 | 72 | 0.95% | 1.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 42238 | 231.83 | 923 | 910 | 178.3 |
| A | 15 | 174 | 20386 | 109.25 | 923 | 910 | 178.3 |
| A | 8 | 192 | 13077 | 68.25 | 923 | 910 | 178.3 |
| B | 6 | 159 | 1825077 | 11131.7 | 903 | 886 | 163.9 |
| B | 0 | 190 | 238011 | 1447.0 | 903 | 886 | 163.9 |
| B | 12 | 111 | 18720 | 108.83 | 903 | 886 | 163.9 |
| C | 3 | 233 | 1780126 | 9207.89 | 850 | 859 | 193.2 |
| C | 14 | 238 | 141501 | 727.84 | 850 | 859 | 193.2 |
| C | 2 | 114 | 14993 | 73.14 | 850 | 859 | 193.2 |
| D | 13 | 153 | 291621 | 1440.66 | 872 | 850 | 201.8 |
| D | 7 | 80 | 152445 | 751.1 | 872 | 850 | 201.8 |
| D | 8 | 195 | 146828 | 723.27 | 872 | 850 | 201.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

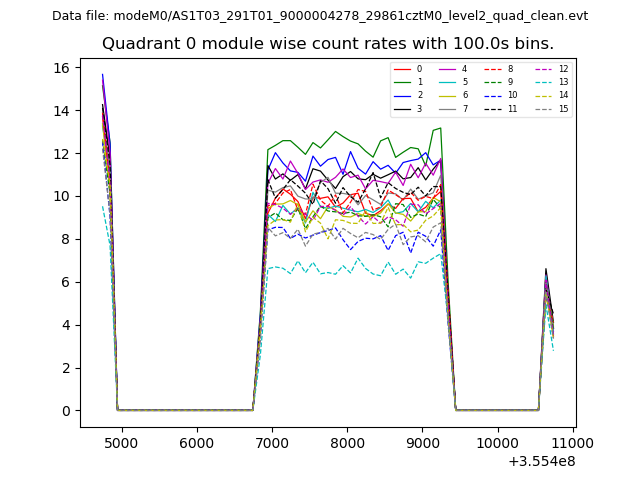

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

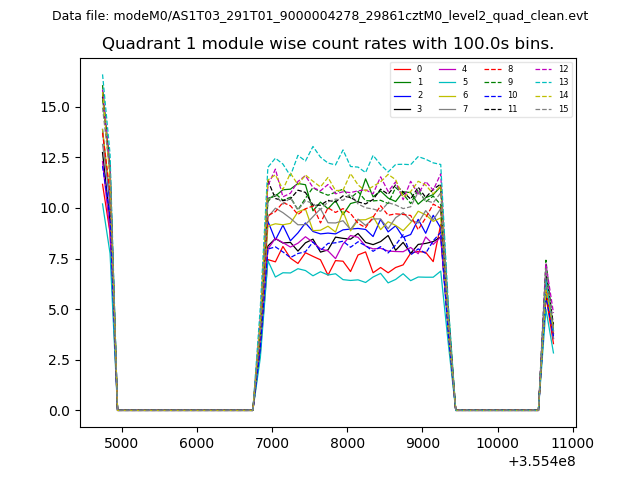

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

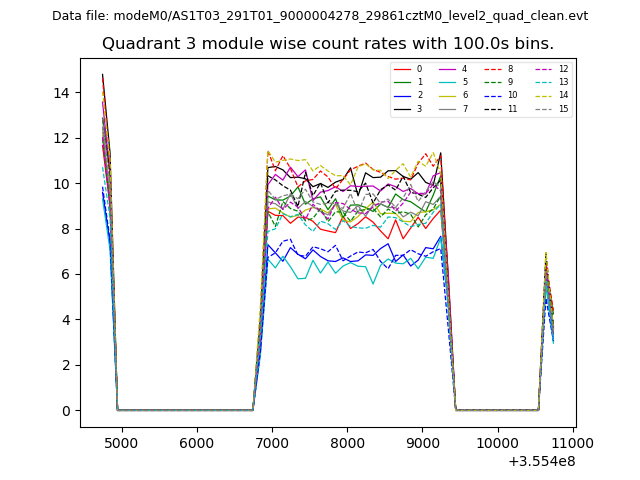

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

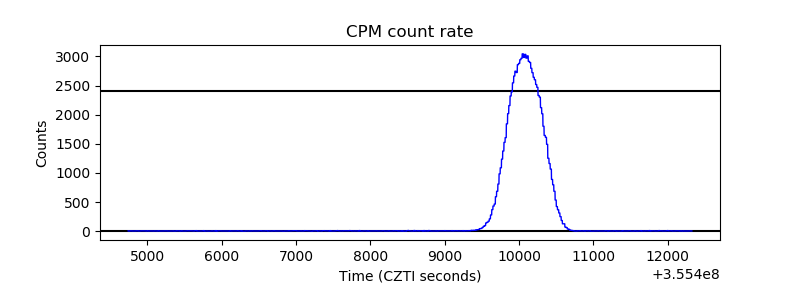

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

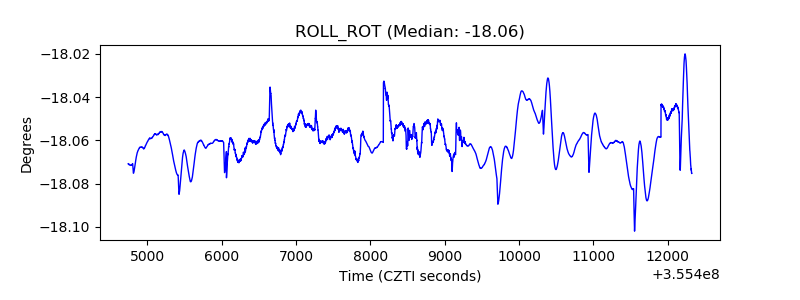

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

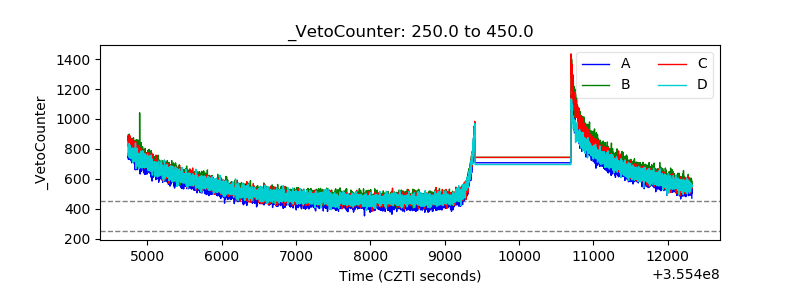

| Veto Counter |  |
