| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_083T01_9000004280_29866cztM0_level2.evt | modeM0/AS1A10_083T01_9000004280_29866cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,609,920 | 72,169,920 |
| Size | 413.5 MB | 68.8 MB |
| Events in quadrant A | 2,563,908 | 470,190 |
| Events in quadrant B | 4,139,189 | 468,402 |
| Events in quadrant C | 3,216,622 | 443,371 |
| Events in quadrant D | 2,857,018 | 436,972 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10899 | 1 |
| B | 0 | 15983 | 2 |
| C | 0 | 12930 | 1 |
| D | 0 | 11885 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5234 | 66 | 1.260986% |
| B | 5233 | 159 | 3.038410% |
| C | 5233 | 162 | 3.095739% |
| D | 5233 | 85 | 1.624307% |

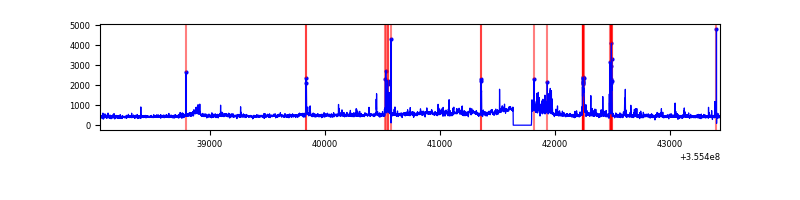

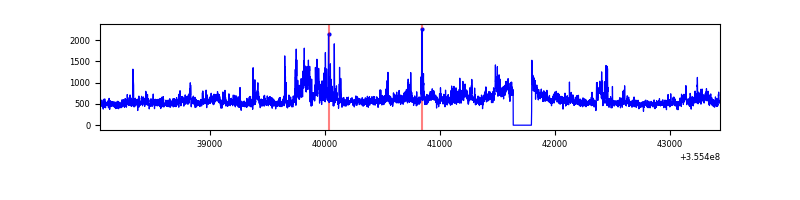

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5394 | 5235 | 3 | 3 | 0.06% | 0.06% |  |
| B | 5393 | 5234 | 0 | 0 | 0.00% | 0.00% |  |
| C | 5393 | 5234 | 2 | 2 | 0.04% | 0.04% |  |
| D | 5393 | 5234 | 28 | 28 | 0.52% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 20985 | 153.33 | 659 | 645 | 132.7 |
| A | 13 | 254 | 10327 | 72.99 | 659 | 645 | 132.7 |
| A | 3 | 137 | 6420 | 43.54 | 659 | 645 | 132.7 |
| B | 6 | 159 | 1534320 | 12441.99 | 649 | 632 | 123.3 |
| B | 0 | 190 | 41598 | 332.34 | 649 | 632 | 123.3 |
| B | 12 | 111 | 14942 | 116.09 | 649 | 632 | 123.3 |
| C | 3 | 233 | 518046 | 3533.27 | 624 | 627 | 146.4 |
| C | 10 | 22 | 154336 | 1049.63 | 624 | 627 | 146.4 |
| C | 14 | 238 | 100014 | 678.68 | 624 | 627 | 146.4 |
| D | 8 | 195 | 148857 | 978.71 | 634 | 616 | 151.5 |
| D | 13 | 153 | 140815 | 925.62 | 634 | 616 | 151.5 |
| D | 2 | 250 | 68281 | 446.74 | 634 | 616 | 151.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

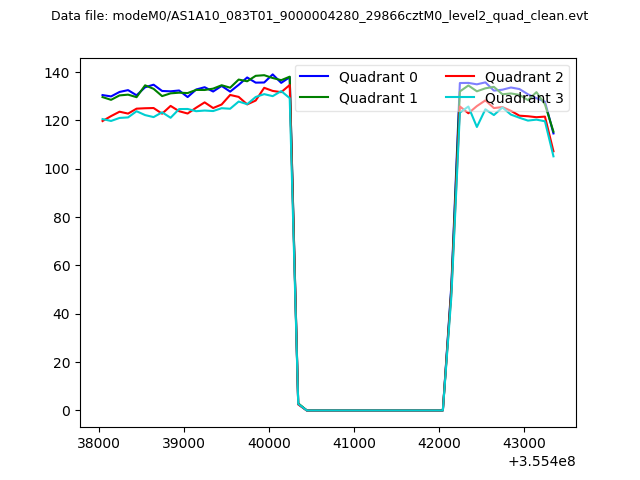

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

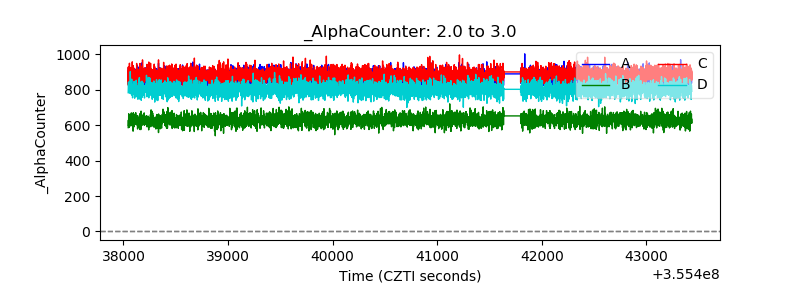

| Alpha Counter |  |

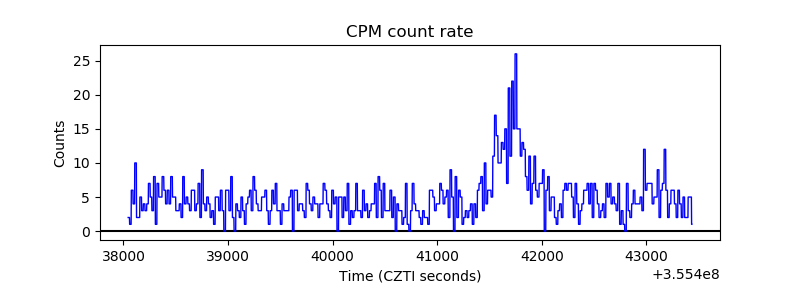

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

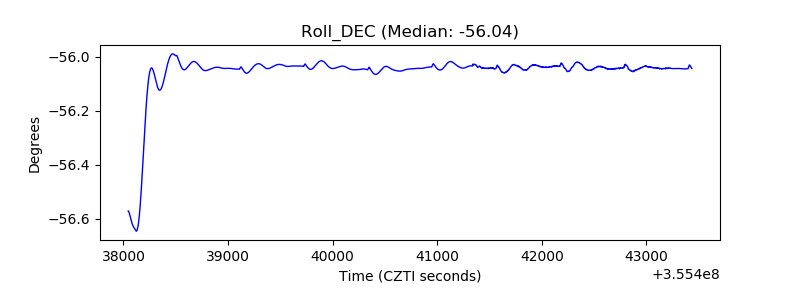

| _Roll_DEC |  |

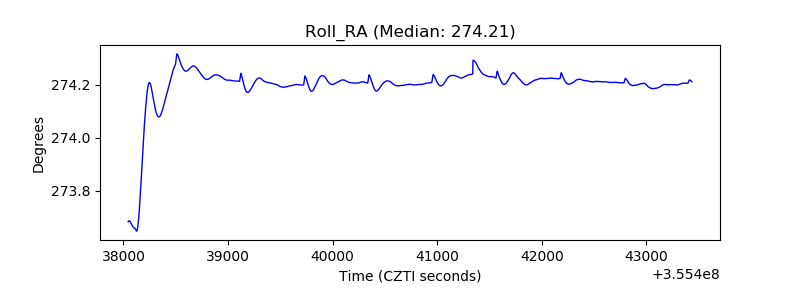

| _Roll_RA |  |

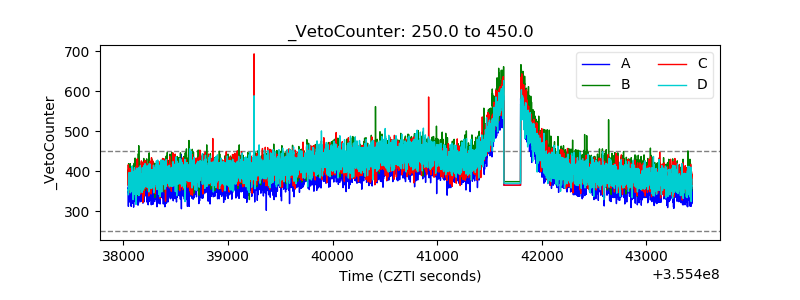

| Veto Counter |  |
