| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T10_9000004282_29876cztM0_level2.evt | modeM0/AS1A10_102T10_9000004282_29876cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,551,680 | 118,324,800 |
| Size | 465.9 MB | 112.8 MB |
| Events in quadrant A | 3,038,083 | 832,322 |
| Events in quadrant B | 4,613,382 | 817,454 |
| Events in quadrant C | 3,433,727 | 777,051 |
| Events in quadrant D | 3,334,178 | 768,376 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12495 | 1 |
| B | 0 | 17150 | 1 |
| C | 0 | 13741 | 1 |
| D | 0 | 13545 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5552 | 97 | 1.747118% |
| B | 5553 | 149 | 2.683234% |
| C | 5553 | 144 | 2.593193% |
| D | 5553 | 74 | 1.332613% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6882 | 5553 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6883 | 5554 | 1 | 1 | 0.01% | 0.02% |  |
| C | 6883 | 5554 | 1 | 1 | 0.01% | 0.02% |  |
| D | 6883 | 5554 | 12 | 12 | 0.17% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 13279 | 81.2 | 782 | 769 | 154.1 |
| A | 13 | 254 | 10630 | 64.0 | 782 | 769 | 154.1 |
| A | 3 | 137 | 6791 | 39.09 | 782 | 769 | 154.1 |
| B | 6 | 159 | 1564757 | 11053.7 | 758 | 740 | 141.5 |
| B | 0 | 190 | 67787 | 473.86 | 758 | 740 | 141.5 |
| B | 12 | 111 | 15916 | 107.26 | 758 | 740 | 141.5 |
| C | 3 | 233 | 385941 | 2288.09 | 740 | 746 | 168.3 |
| C | 14 | 238 | 122748 | 724.7 | 740 | 746 | 168.3 |
| C | 10 | 22 | 26432 | 152.58 | 740 | 746 | 168.3 |
| D | 8 | 195 | 226226 | 1289.86 | 757 | 741 | 174.8 |
| D | 2 | 250 | 53279 | 300.54 | 757 | 741 | 174.8 |
| D | 7 | 80 | 52040 | 293.45 | 757 | 741 | 174.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

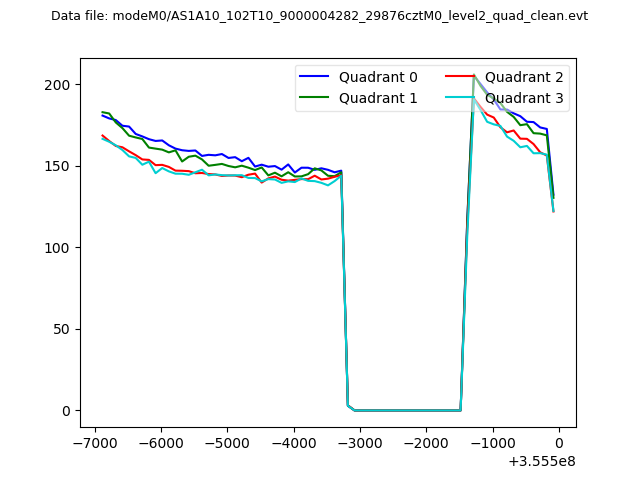

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

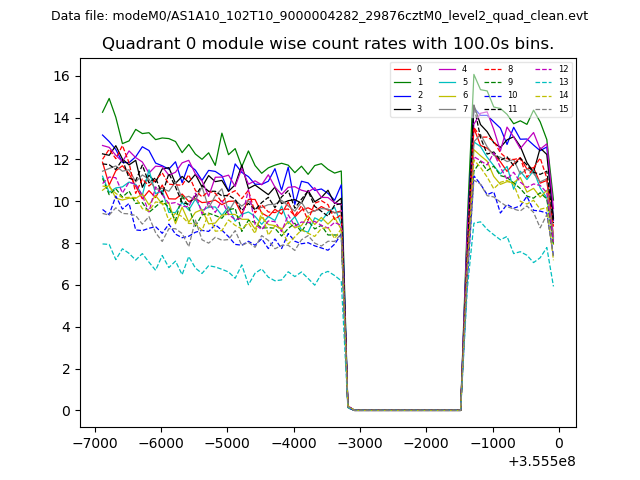

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

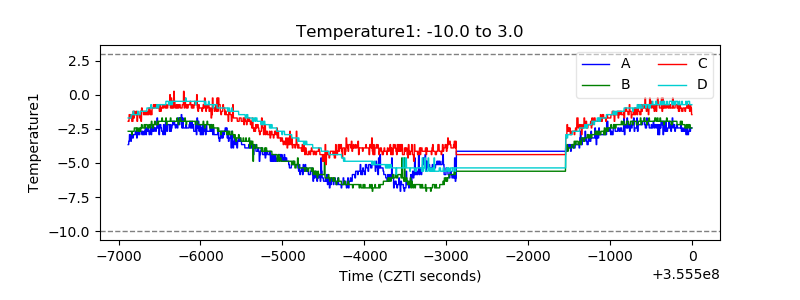

| Temperature 1 |  |
| Veto HV Monitor |  |

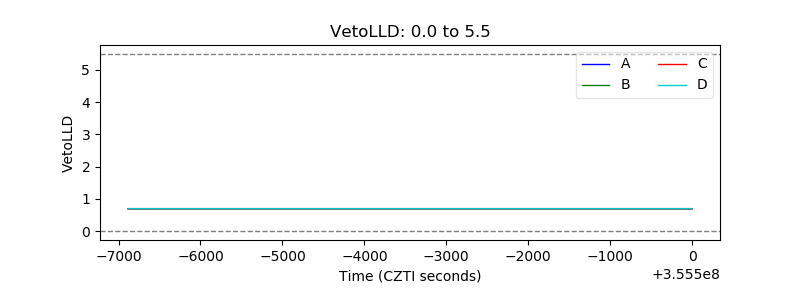

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

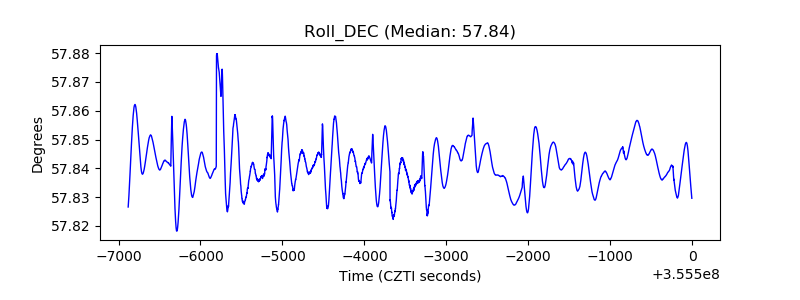

| _Roll_DEC |  |
| _Roll_RA |  |

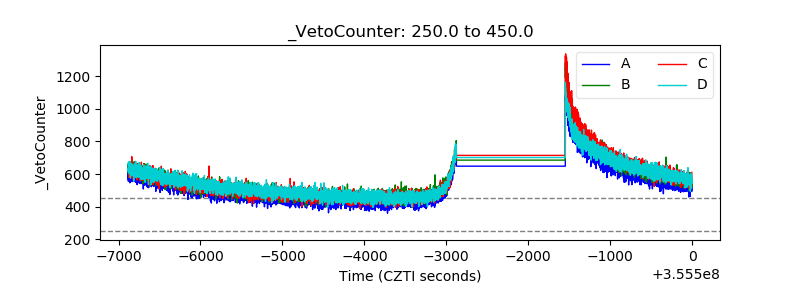

| Veto Counter |  |
