| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T10_9000004282_29877cztM0_level2.evt | modeM0/AS1A10_102T10_9000004282_29877cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,639,040 | 114,816,960 |
| Size | 477.4 MB | 109.5 MB |
| Events in quadrant A | 3,040,127 | 798,066 |
| Events in quadrant B | 4,680,309 | 784,949 |
| Events in quadrant C | 3,272,977 | 760,671 |
| Events in quadrant D | 3,782,779 | 735,970 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12512 | 1 |
| B | 0 | 17544 | 1 |
| C | 0 | 13423 | 1 |
| D | 0 | 15043 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5690 | 132 | 2.319859% |
| B | 5691 | 175 | 3.075031% |
| C | 5690 | 156 | 2.741652% |
| D | 5690 | 188 | 3.304042% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6985 | 5691 | 1 | 1 | 0.01% | 0.02% |  |
| B | 6986 | 5692 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6985 | 5691 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6985 | 5691 | 81 | 81 | 1.16% | 1.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 16841 | 104.82 | 778 | 764 | 153.4 |
| A | 1 | 113 | 12398 | 75.85 | 778 | 764 | 153.4 |
| A | 13 | 254 | 10941 | 66.35 | 778 | 764 | 153.4 |
| B | 6 | 159 | 1632836 | 11645.6 | 757 | 740 | 140.1 |
| B | 0 | 190 | 61856 | 436.08 | 757 | 740 | 140.1 |
| B | 12 | 111 | 15939 | 108.45 | 757 | 740 | 140.1 |
| C | 3 | 233 | 229120 | 1343.9 | 745 | 751 | 169.9 |
| C | 14 | 238 | 124684 | 729.32 | 745 | 751 | 169.9 |
| C | 2 | 114 | 13912 | 77.45 | 745 | 751 | 169.9 |
| D | 8 | 195 | 345699 | 1968.01 | 752 | 736 | 175.3 |
| D | 7 | 238 | 152988 | 868.59 | 752 | 736 | 175.3 |
| D | 13 | 153 | 125652 | 712.64 | 752 | 736 | 175.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

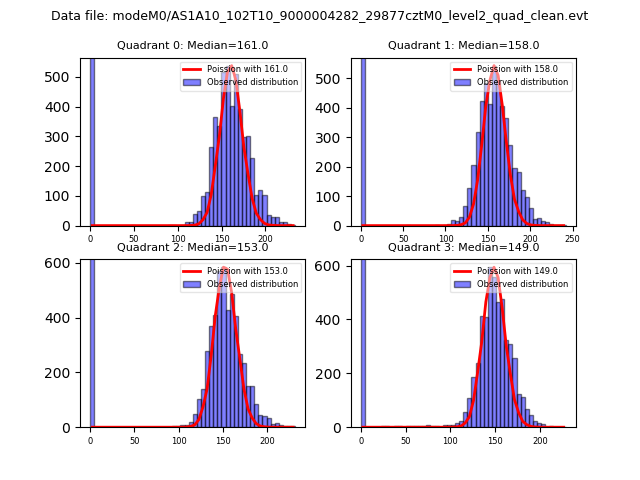

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

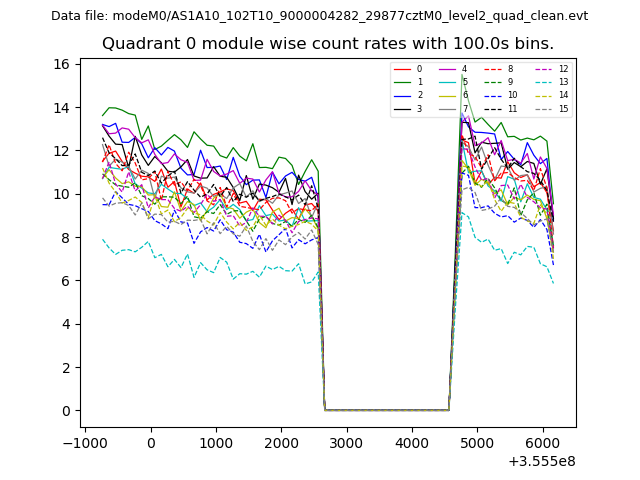

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

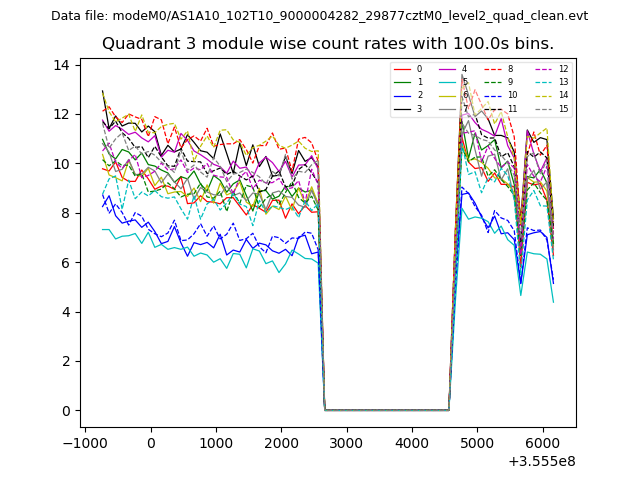

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

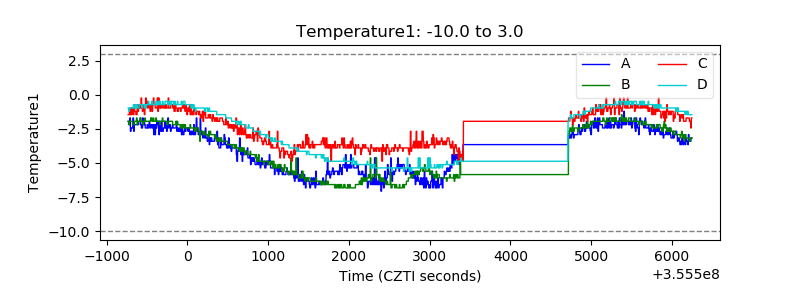

| Temperature 1 |  |
| Veto HV Monitor |  |

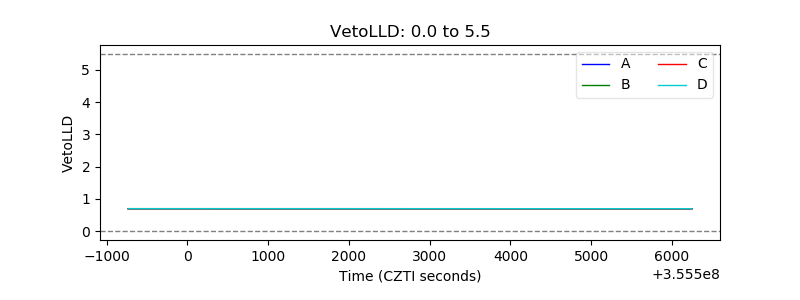

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

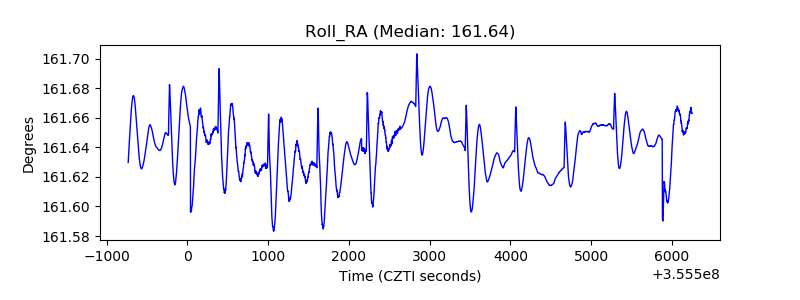

| _Roll_RA |  |
| Veto Counter |  |
