| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T10_9000004282_29878cztM0_level2.evt | modeM0/AS1A10_102T10_9000004282_29878cztM0_level2_quad_clean.evt |
| Size (bytes) | 625,743,360 | 116,979,840 |
| Size | 596.8 MB | 111.6 MB |
| Events in quadrant A | 3,389,480 | 801,820 |
| Events in quadrant B | 5,256,819 | 793,123 |
| Events in quadrant C | 5,192,602 | 757,354 |
| Events in quadrant D | 4,673,082 | 737,713 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14149 | 2 |
| B | 0 | 19887 | 2 |
| C | 0 | 19875 | 2 |
| D | 0 | 18546 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6493 | 119 | 1.832743% |
| B | 6493 | 158 | 2.433390% |
| C | 6493 | 372 | 5.729247% |
| D | 6493 | 271 | 4.173726% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7653 | 6494 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7653 | 6494 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7653 | 6494 | 20 | 20 | 0.26% | 0.31% |  |
| D | 7653 | 6494 | 162 | 162 | 2.12% | 2.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 31936 | 180.73 | 868 | 854 | 172.0 |
| A | 13 | 254 | 11994 | 64.78 | 868 | 854 | 172.0 |
| A | 3 | 137 | 7857 | 40.72 | 868 | 854 | 172.0 |
| B | 6 | 159 | 1907246 | 12092.71 | 847 | 827 | 157.7 |
| B | 0 | 190 | 28326 | 174.43 | 847 | 827 | 157.7 |
| B | 12 | 111 | 18608 | 112.79 | 847 | 827 | 157.7 |
| C | 3 | 233 | 1826505 | 9671.7 | 822 | 828 | 188.8 |
| C | 14 | 238 | 136591 | 719.22 | 822 | 828 | 188.8 |
| C | 2 | 114 | 15725 | 78.92 | 822 | 828 | 188.8 |
| D | 8 | 195 | 543574 | 2766.66 | 835 | 814 | 196.2 |
| D | 7 | 223 | 338975 | 1723.74 | 835 | 814 | 196.2 |
| D | 13 | 153 | 230680 | 1171.72 | 835 | 814 | 196.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

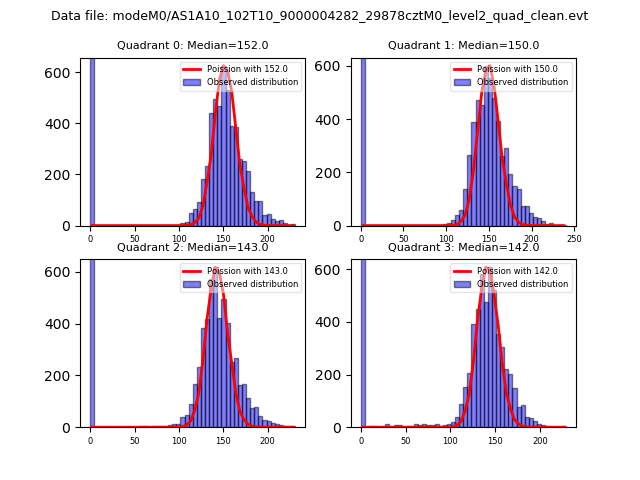

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

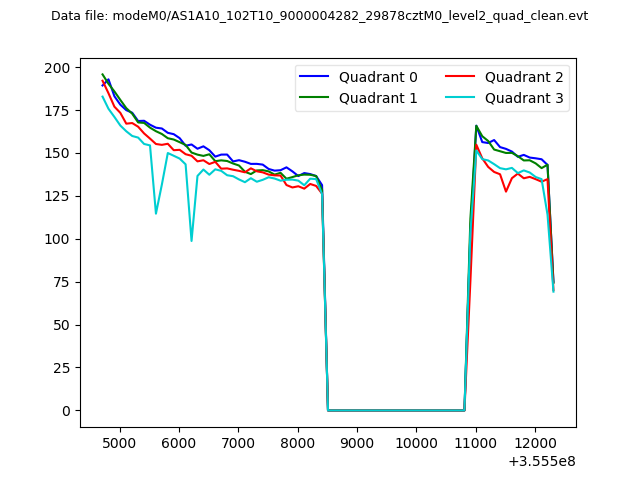

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
