| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T10_9000004282_29881cztM0_level2.evt | modeM0/AS1A10_102T10_9000004282_29881cztM0_level2_quad_clean.evt |
| Size (bytes) | 745,562,880 | 117,233,280 |
| Size | 711.0 MB | 111.8 MB |
| Events in quadrant A | 3,700,830 | 789,382 |
| Events in quadrant B | 5,995,436 | 782,965 |
| Events in quadrant C | 5,395,352 | 744,692 |
| Events in quadrant D | 6,965,704 | 695,263 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16223 | 2 |
| B | 0 | 23592 | 3 |
| C | 0 | 21413 | 2 |
| D | 0 | 25798 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7742 | 75 | 0.968742% |
| B | 7741 | 186 | 2.402790% |
| C | 7741 | 359 | 4.637644% |
| D | 7741 | 826 | 10.670456% |

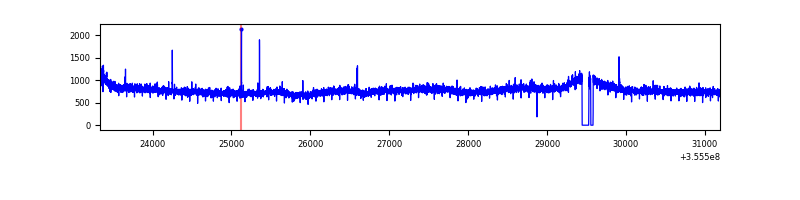

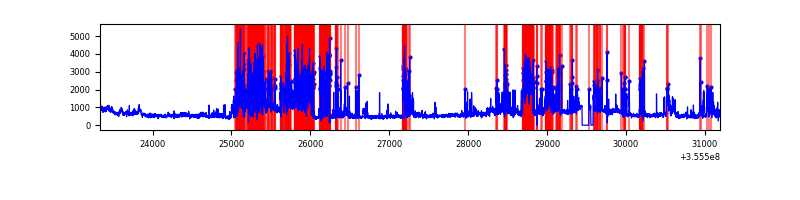

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7858 | 7745 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7857 | 7744 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7857 | 7744 | 4 | 4 | 0.05% | 0.05% |  |
| D | 7857 | 7743 | 659 | 659 | 8.39% | 8.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 32955 | 167.4 | 949 | 929 | 191.3 |
| A | 13 | 254 | 14380 | 70.31 | 949 | 929 | 191.3 |
| A | 3 | 137 | 9423 | 44.4 | 949 | 929 | 191.3 |
| B | 6 | 159 | 2276085 | 12666.54 | 939 | 915 | 179.6 |
| B | 12 | 111 | 22589 | 120.67 | 939 | 915 | 179.6 |
| B | 11 | 111 | 19902 | 105.71 | 939 | 915 | 179.6 |
| C | 3 | 233 | 1677387 | 7877.53 | 910 | 913 | 212.8 |
| C | 14 | 238 | 148742 | 694.63 | 910 | 913 | 212.8 |
| C | 2 | 114 | 18883 | 84.44 | 910 | 913 | 212.8 |
| D | 7 | 80 | 2618549 | 12477.94 | 883 | 859 | 209.8 |
| D | 8 | 195 | 611084 | 2908.81 | 883 | 859 | 209.8 |
| D | 7 | 238 | 176999 | 839.62 | 883 | 859 | 209.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

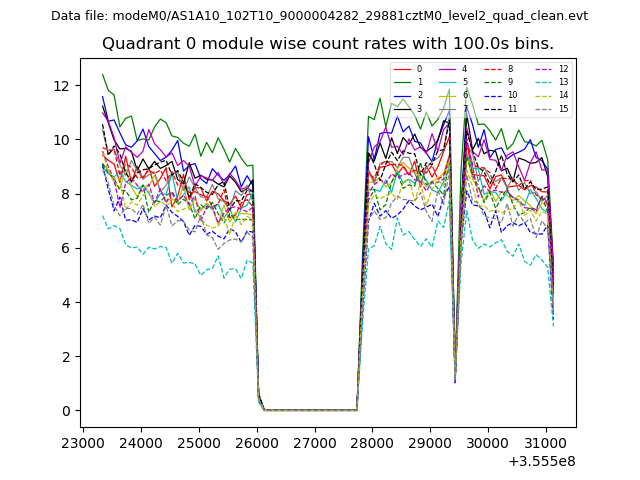

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
