| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T10_9000004282_29882cztM0_level2.evt | modeM0/AS1A10_102T10_9000004282_29882cztM0_level2_quad_clean.evt |
| Size (bytes) | 766,494,720 | 128,197,440 |
| Size | 731.0 MB | 122.3 MB |
| Events in quadrant A | 3,980,463 | 856,883 |
| Events in quadrant B | 6,407,160 | 850,948 |
| Events in quadrant C | 6,933,852 | 800,084 |
| Events in quadrant D | 5,331,608 | 797,895 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17435 | 3 |
| B | 0 | 25241 | 3 |
| C | 0 | 26557 | 3 |
| D | 0 | 21442 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8305 | 96 | 1.155930% |
| B | 8306 | 213 | 2.564411% |
| C | 8306 | 544 | 6.549482% |
| D | 8306 | 247 | 2.973754% |

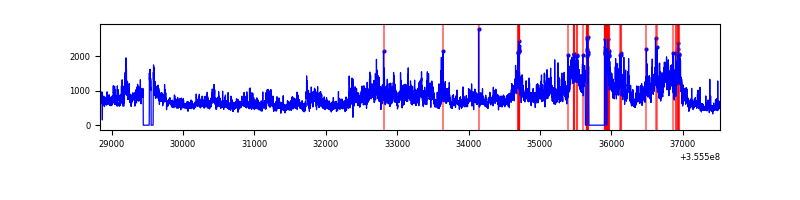

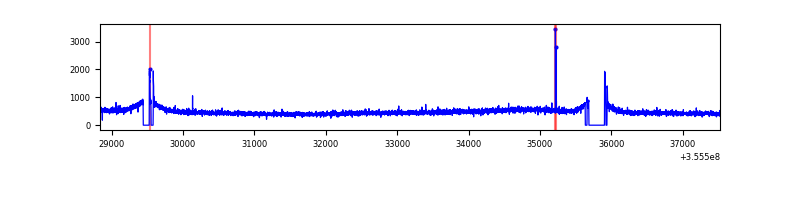

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8681 | 8311 | 3 | 3 | 0.03% | 0.04% |  |
| B | 8682 | 8312 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8682 | 8312 | 62 | 62 | 0.71% | 0.75% |  |
| D | 8682 | 8311 | 122 | 122 | 1.41% | 1.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 41953 | 200.13 | 1017 | 994 | 204.7 |
| A | 13 | 254 | 15487 | 70.81 | 1017 | 994 | 204.7 |
| A | 5 | 168 | 11472 | 51.2 | 1017 | 994 | 204.7 |
| B | 6 | 159 | 2435307 | 12512.87 | 1009 | 981 | 194.5 |
| B | 12 | 111 | 24370 | 120.22 | 1009 | 981 | 194.5 |
| B | 11 | 111 | 22100 | 108.56 | 1009 | 981 | 194.5 |
| C | 3 | 233 | 2928700 | 12984.16 | 967 | 971 | 225.5 |
| C | 14 | 238 | 159064 | 701.13 | 967 | 971 | 225.5 |
| C | 10 | 22 | 31459 | 135.21 | 967 | 971 | 225.5 |
| D | 8 | 195 | 705714 | 3001.64 | 982 | 953 | 234.8 |
| D | 7 | 80 | 590466 | 2510.79 | 982 | 953 | 234.8 |
| D | 7 | 238 | 121163 | 511.99 | 982 | 953 | 234.8 |

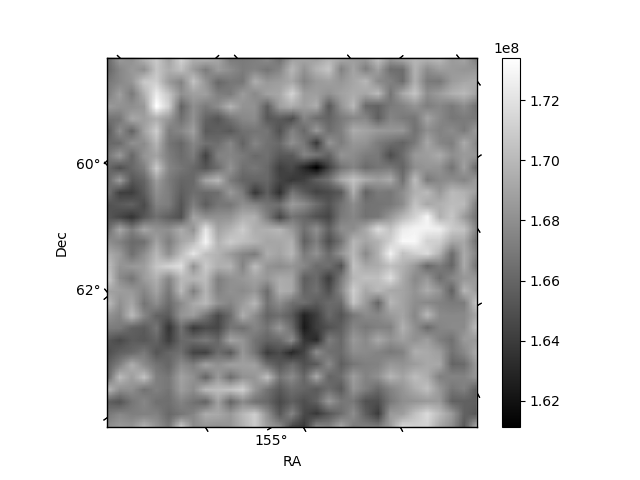

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

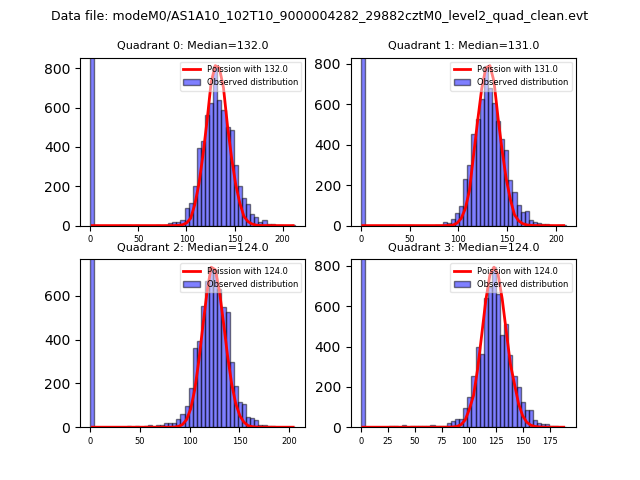

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

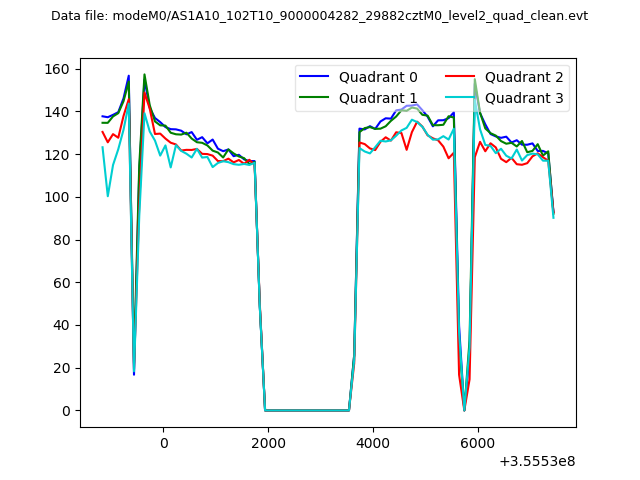

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

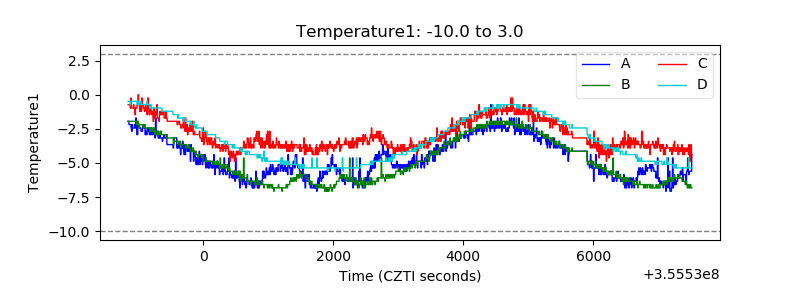

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

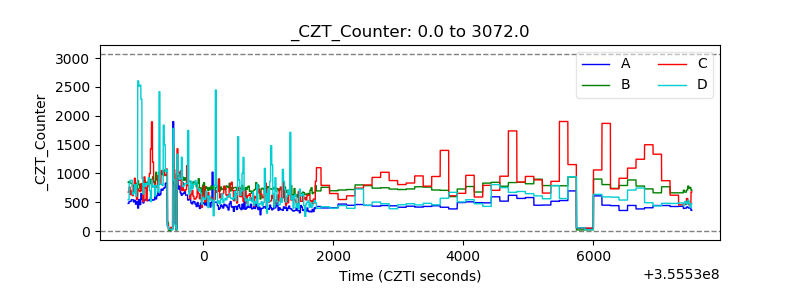

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

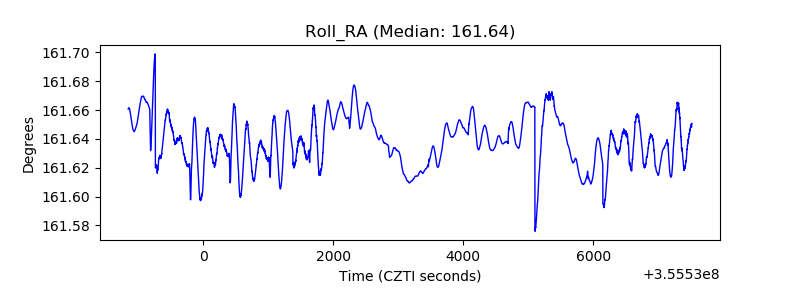

| _Roll_RA |  |
| Veto Counter |  |
