| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T12_9000004284_29896cztM0_level2.evt | modeM0/AS1A10_102T12_9000004284_29896cztM0_level2_quad_clean.evt |
| Size (bytes) | 823,276,800 | 111,133,440 |
| Size | 785.1 MB | 106.0 MB |
| Events in quadrant A | 3,999,068 | 730,065 |
| Events in quadrant B | 6,152,832 | 729,857 |
| Events in quadrant C | 5,689,532 | 703,216 |
| Events in quadrant D | 8,560,553 | 654,566 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16979 | 3 |
| B | 0 | 24161 | 3 |
| C | 0 | 22379 | 3 |
| D | 0 | 30637 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7875 | 166 | 2.107937% |
| B | 7876 | 398 | 5.053327% |
| C | 7876 | 423 | 5.370747% |
| D | 7876 | 1667 | 21.165566% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8135 | 7878 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8136 | 7879 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8136 | 7879 | 14 | 14 | 0.17% | 0.18% |  |
| D | 8136 | 7879 | 1139 | 1139 | 14.00% | 14.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 113 | 69084 | 331.81 | 1011 | 988 | 205.2 |
| A | 8 | 192 | 29051 | 136.74 | 1011 | 988 | 205.2 |
| A | 13 | 254 | 14065 | 63.72 | 1011 | 988 | 205.2 |
| B | 6 | 159 | 2209134 | 11223.01 | 999 | 975 | 196.8 |
| B | 12 | 111 | 25206 | 123.15 | 999 | 975 | 196.8 |
| B | 11 | 111 | 22959 | 111.73 | 999 | 975 | 196.8 |
| C | 3 | 233 | 1671446 | 7263.93 | 969 | 980 | 230.0 |
| C | 14 | 238 | 154417 | 667.21 | 969 | 980 | 230.0 |
| C | 10 | 22 | 37758 | 159.93 | 969 | 980 | 230.0 |
| D | 7 | 80 | 4459881 | 20208.89 | 910 | 886 | 220.6 |
| D | 8 | 195 | 314425 | 1421.01 | 910 | 886 | 220.6 |
| D | 12 | 2 | 124256 | 559.13 | 910 | 886 | 220.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

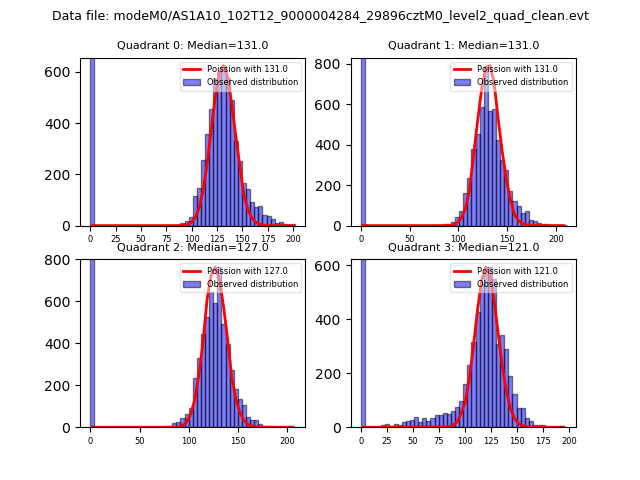

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

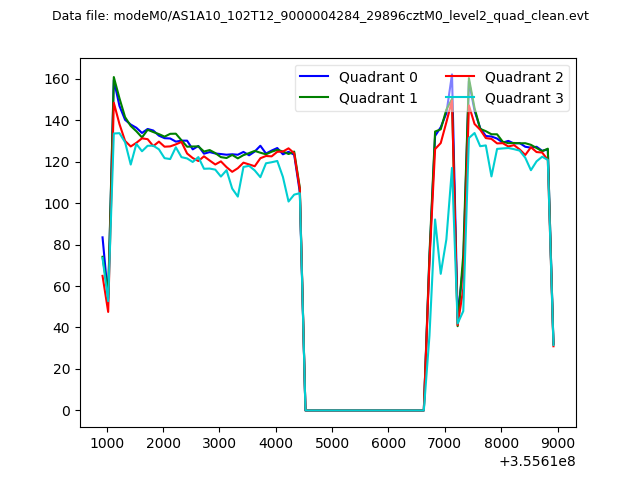

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

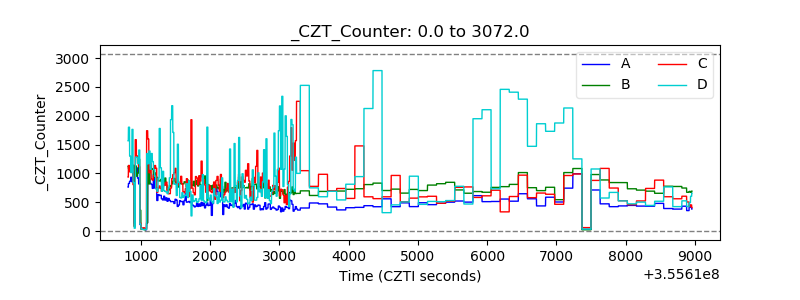

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

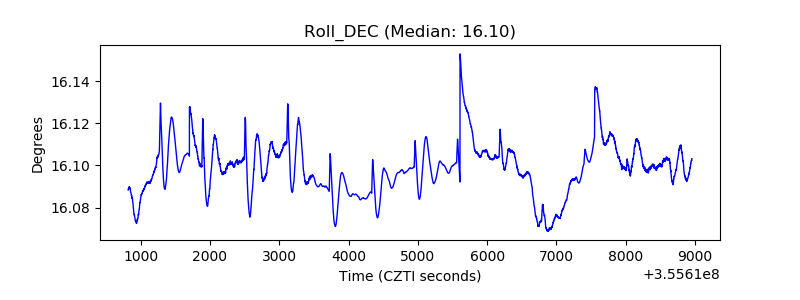

| _Roll_DEC |  |

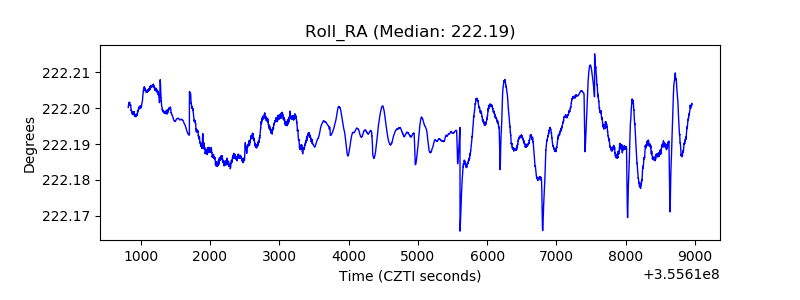

| _Roll_RA |  |
| Veto Counter |  |
