| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T01_9000004298_29937cztM0_level2.evt | modeM0/AS1A10_058T01_9000004298_29937cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,966,400 | 73,768,320 |
| Size | 500.6 MB | 70.4 MB |
| Events in quadrant A | 3,246,999 | 462,071 |
| Events in quadrant B | 5,160,960 | 452,365 |
| Events in quadrant C | 3,428,462 | 431,288 |
| Events in quadrant D | 3,619,027 | 431,998 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13544 | 1 |
| B | 0 | 19788 | 1 |
| C | 0 | 13911 | 1 |
| D | 0 | 14673 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6533 | 87 | 1.331701% |
| B | 6534 | 140 | 2.142639% |
| C | 6534 | 134 | 2.050811% |
| D | 6533 | 64 | 0.979642% |

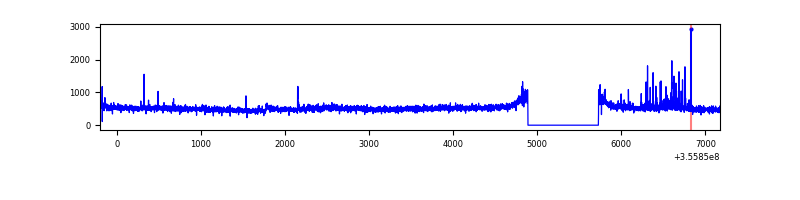

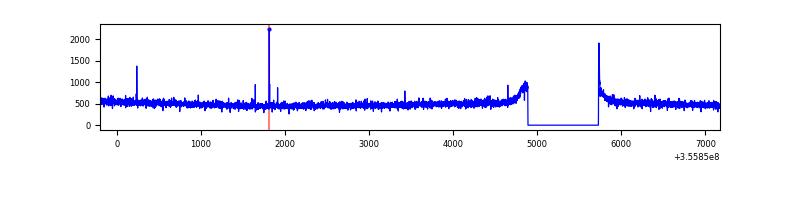

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7373 | 6534 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7374 | 6535 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7374 | 6535 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7373 | 6534 | 13 | 13 | 0.18% | 0.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13377 | 74.55 | 836 | 819 | 168.4 |
| A | 8 | 192 | 13044 | 72.58 | 836 | 819 | 168.4 |
| A | 3 | 137 | 7897 | 42.02 | 836 | 819 | 168.4 |
| B | 6 | 159 | 1915100 | 12404.97 | 818 | 800 | 154.3 |
| B | 0 | 190 | 24313 | 152.37 | 818 | 800 | 154.3 |
| B | 12 | 111 | 18463 | 114.46 | 818 | 800 | 154.3 |
| C | 14 | 238 | 132421 | 722.15 | 788 | 794 | 182.3 |
| C | 3 | 233 | 130041 | 709.09 | 788 | 794 | 182.3 |
| C | 15 | 208 | 61784 | 334.61 | 788 | 794 | 182.3 |
| D | 8 | 195 | 412051 | 2156.44 | 805 | 785 | 190.7 |
| D | 2 | 250 | 70255 | 364.26 | 805 | 785 | 190.7 |
| D | 2 | 234 | 30308 | 154.8 | 805 | 785 | 190.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

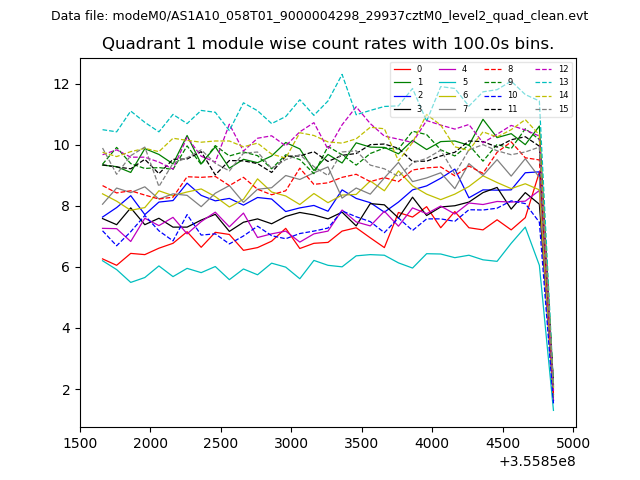

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

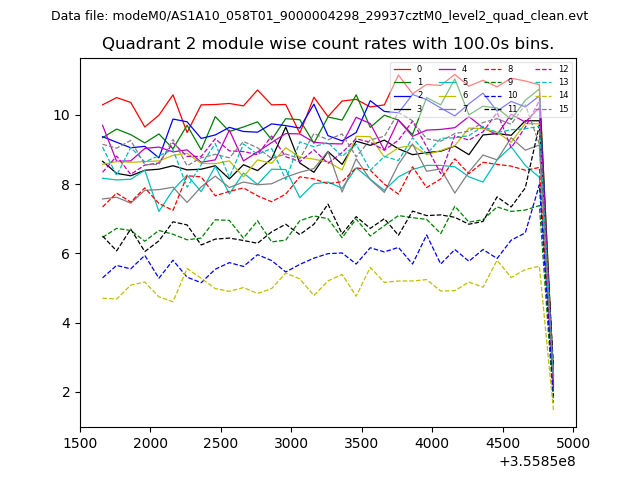

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

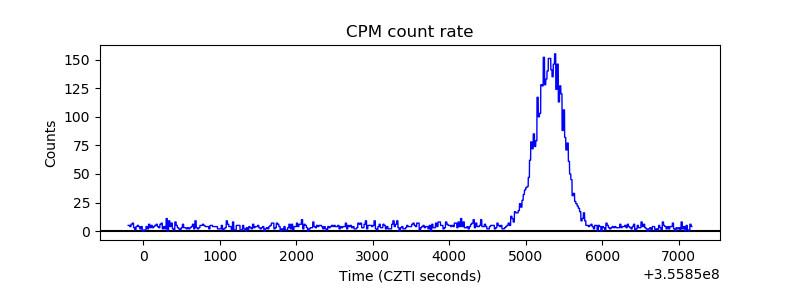

| _CPM_Rate |  |

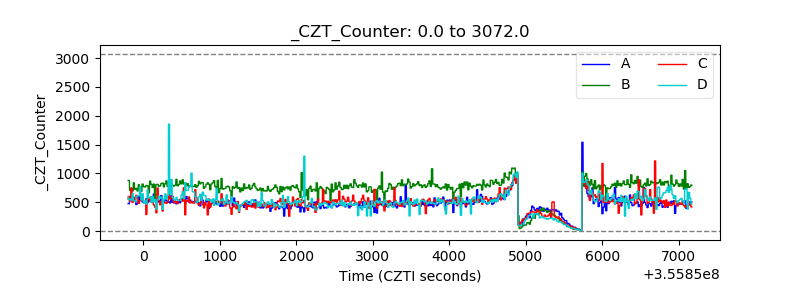

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

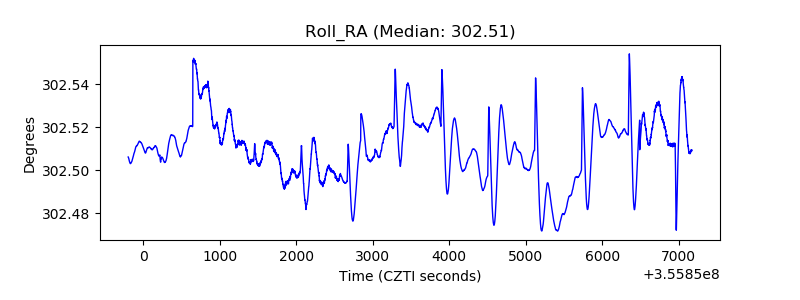

| _Roll_RA |  |

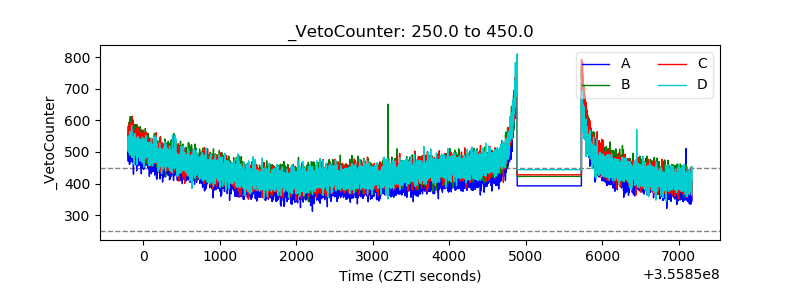

| Veto Counter |  |
