| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T01_9000004298_29938cztM0_level2.evt | modeM0/AS1A10_058T01_9000004298_29938cztM0_level2_quad_clean.evt |
| Size (bytes) | 602,524,800 | 88,090,560 |
| Size | 574.6 MB | 84.0 MB |
| Events in quadrant A | 3,613,554 | 556,732 |
| Events in quadrant B | 5,877,757 | 550,737 |
| Events in quadrant C | 3,966,161 | 523,865 |
| Events in quadrant D | 4,291,698 | 524,089 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15340 | 3 |
| B | 0 | 22557 | 2 |
| C | 0 | 16291 | 2 |
| D | 0 | 17417 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7355 | 118 | 1.604351% |
| B | 7355 | 211 | 2.868797% |
| C | 7355 | 298 | 4.051666% |
| D | 7355 | 96 | 1.305235% |

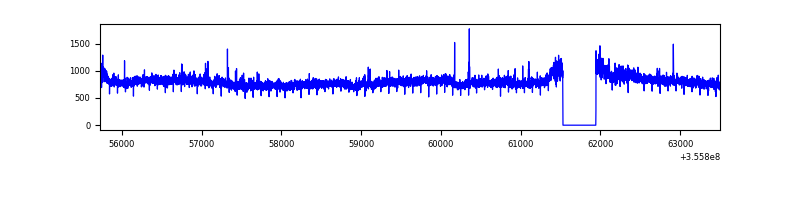

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7770 | 7356 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7770 | 7356 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7770 | 7356 | 4 | 4 | 0.05% | 0.05% |  |
| D | 7770 | 7356 | 48 | 48 | 0.62% | 0.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 25103 | 130.06 | 926 | 906 | 186.0 |
| A | 13 | 254 | 15449 | 78.17 | 926 | 906 | 186.0 |
| A | 3 | 137 | 9330 | 45.28 | 926 | 906 | 186.0 |
| B | 6 | 159 | 2214801 | 12880.71 | 906 | 884 | 171.9 |
| B | 0 | 190 | 71098 | 408.51 | 906 | 884 | 171.9 |
| B | 12 | 111 | 20922 | 116.58 | 906 | 884 | 171.9 |
| C | 14 | 238 | 215787 | 1066.77 | 867 | 873 | 201.5 |
| C | 3 | 233 | 126424 | 623.2 | 867 | 873 | 201.5 |
| C | 14 | 254 | 103216 | 508.0 | 867 | 873 | 201.5 |
| D | 8 | 195 | 466419 | 2219.05 | 889 | 867 | 209.8 |
| D | 2 | 250 | 155217 | 735.71 | 889 | 867 | 209.8 |
| D | 7 | 80 | 122716 | 580.79 | 889 | 867 | 209.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

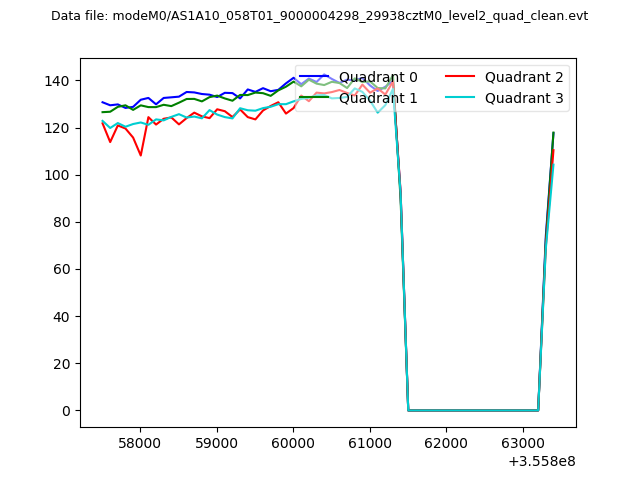

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

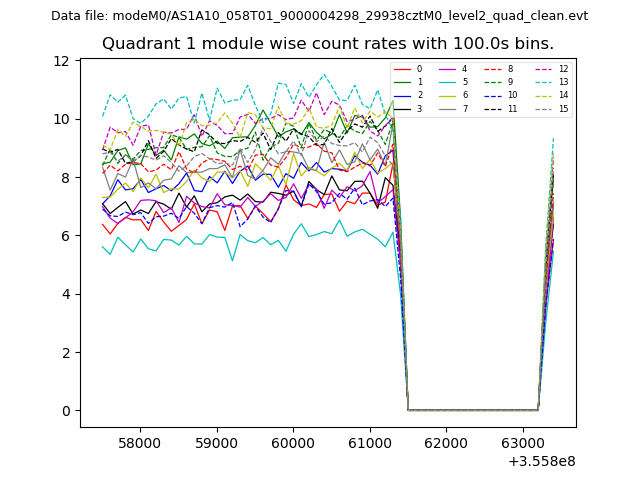

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

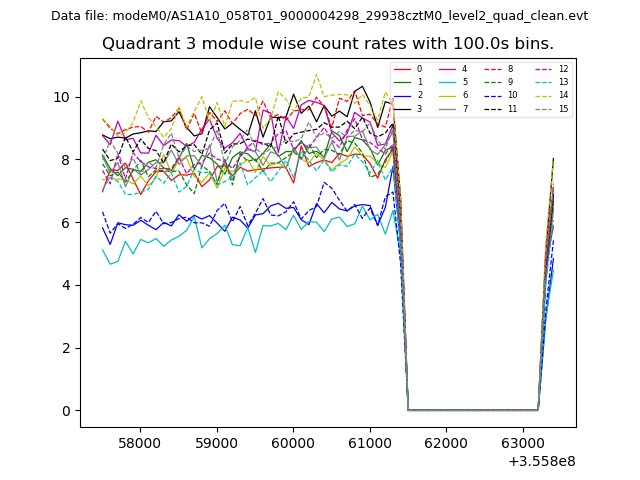

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

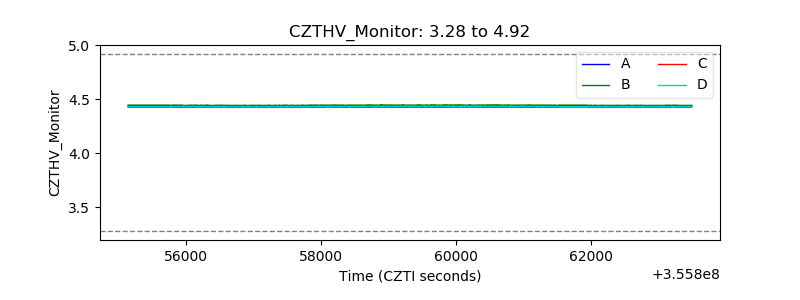

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

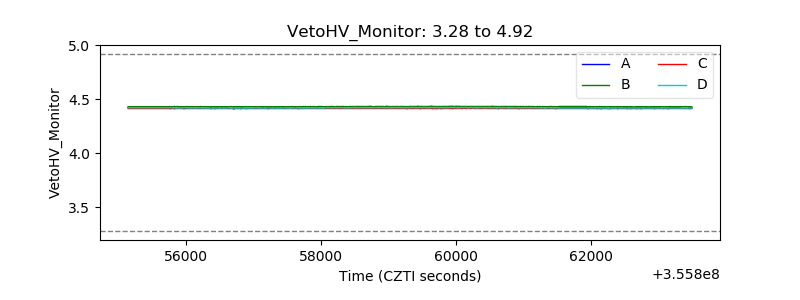

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

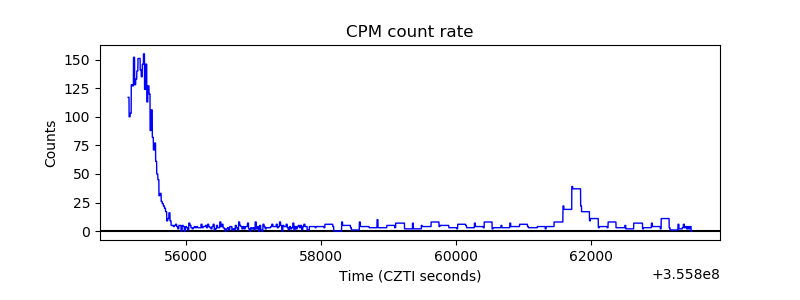

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

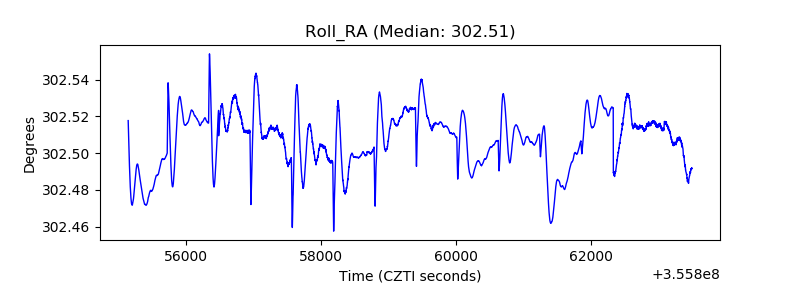

| _Roll_RA |  |
| Veto Counter |  |
