| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T01_9000004298_29943cztM0_level2.evt | modeM0/AS1A10_058T01_9000004298_29943cztM0_level2_quad_clean.evt |
| Size (bytes) | 884,208,960 | 142,793,280 |
| Size | 843.2 MB | 136.2 MB |
| Events in quadrant A | 4,863,258 | 932,572 |
| Events in quadrant B | 7,897,034 | 922,251 |
| Events in quadrant C | 6,850,062 | 884,792 |
| Events in quadrant D | 6,474,419 | 873,193 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20945 | 2 |
| B | 0 | 30971 | 2 |
| C | 0 | 27176 | 2 |
| D | 0 | 25753 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 212 | 0 |
| B | 0 | 212 | 0 |
| C | 0 | 212 | 0 |
| D | 0 | 212 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10267 | 63 | 0.613616% |
| B | 10267 | 143 | 1.392812% |
| C | 10267 | 334 | 3.253141% |
| D | 10268 | 273 | 2.658746% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

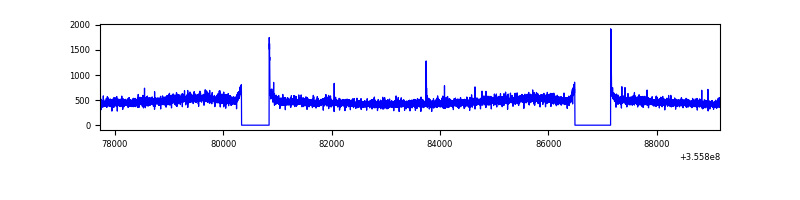

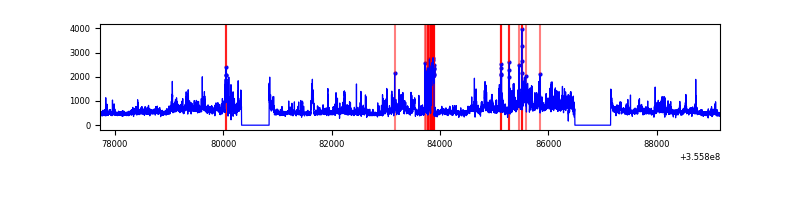

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11437 | 10267 | 0 | 0 | 0.00% | 0.00% |  |
| B | 11437 | 10267 | 0 | 0 | 0.00% | 0.00% |  |
| C | 11437 | 10266 | 66 | 66 | 0.58% | 0.64% |  |
| D | 11438 | 10268 | 192 | 192 | 1.68% | 1.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 27221 | 103.67 | 1250 | 1221 | 250.8 |
| A | 13 | 254 | 20738 | 77.82 | 1250 | 1221 | 250.8 |
| A | 3 | 137 | 12688 | 45.72 | 1250 | 1221 | 250.8 |
| B | 6 | 159 | 2969483 | 12563.72 | 1232 | 1200 | 236.3 |
| B | 15 | 33 | 51717 | 213.82 | 1232 | 1200 | 236.3 |
| B | 12 | 111 | 29262 | 118.78 | 1232 | 1200 | 236.3 |
| C | 3 | 233 | 1931487 | 6886.28 | 1190 | 1198 | 280.3 |
| C | 14 | 238 | 206547 | 732.58 | 1190 | 1198 | 280.3 |
| C | 2 | 114 | 24482 | 83.07 | 1190 | 1198 | 280.3 |
| D | 7 | 80 | 876870 | 3089.41 | 1204 | 1171 | 283.5 |
| D | 8 | 195 | 729686 | 2570.15 | 1204 | 1171 | 283.5 |
| D | 2 | 250 | 233299 | 818.93 | 1204 | 1171 | 283.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

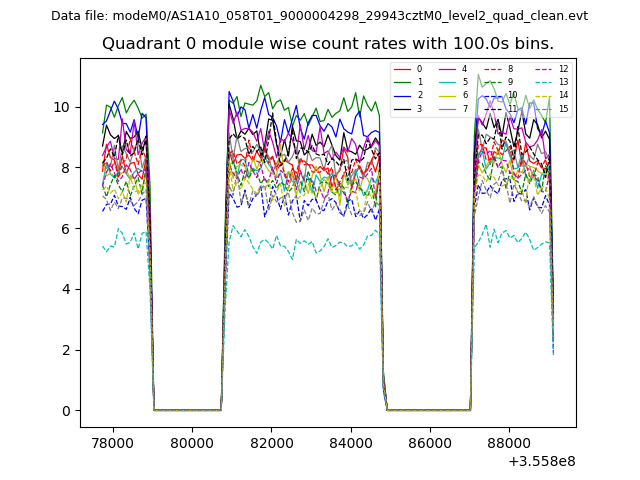

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

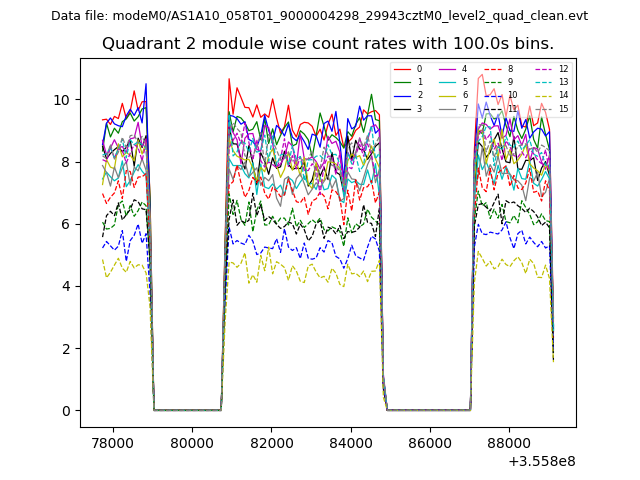

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

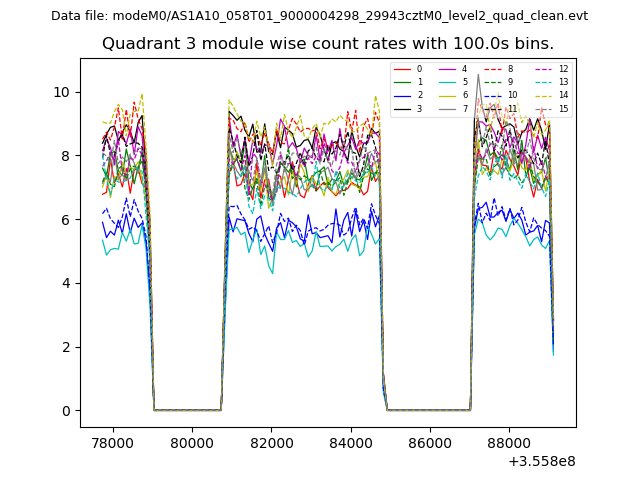

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

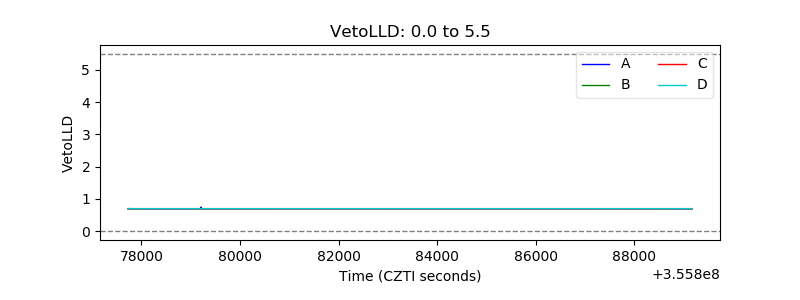

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

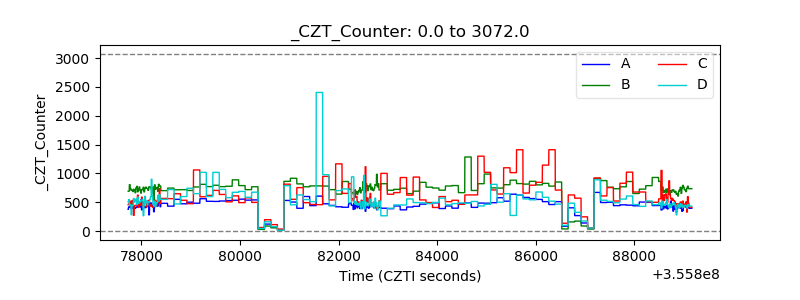

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

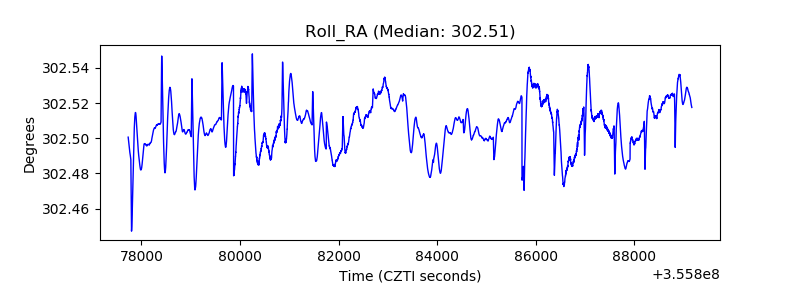

| _Roll_RA |  |
| Veto Counter |  |
