| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T01_9000004298_29953cztM0_level2.evt | modeM0/AS1A10_058T01_9000004298_29953cztM0_level2_quad_clean.evt |
| Size (bytes) | 616,291,200 | 86,356,800 |
| Size | 587.7 MB | 82.4 MB |
| Events in quadrant A | 3,446,307 | 551,588 |
| Events in quadrant B | 5,818,438 | 542,752 |
| Events in quadrant C | 4,266,368 | 510,530 |
| Events in quadrant D | 4,650,779 | 513,801 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14787 | 1 |
| B | 0 | 22388 | 1 |
| C | 0 | 17077 | 1 |
| D | 0 | 18458 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7120 | 155 | 2.176966% |
| B | 7120 | 362 | 5.084270% |
| C | 7120 | 348 | 4.887640% |
| D | 7120 | 304 | 4.269663% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7290 | 7121 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7290 | 7121 | 39 | 39 | 0.53% | 0.55% |  |
| C | 7290 | 7121 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7290 | 7121 | 140 | 140 | 1.92% | 1.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14703 | 77.84 | 888 | 869 | 177.7 |
| A | 8 | 192 | 10954 | 56.74 | 888 | 869 | 177.7 |
| A | 3 | 137 | 9048 | 46.02 | 888 | 869 | 177.7 |
| B | 6 | 159 | 2109032 | 12728.18 | 865 | 845 | 165.6 |
| B | 3 | 64 | 279153 | 1680.28 | 865 | 845 | 165.6 |
| B | 5 | 172 | 24406 | 142.25 | 865 | 845 | 165.6 |
| C | 3 | 233 | 790560 | 4076.74 | 829 | 836 | 193.7 |
| C | 14 | 238 | 166441 | 854.89 | 829 | 836 | 193.7 |
| C | 14 | 254 | 46772 | 237.13 | 829 | 836 | 193.7 |
| D | 8 | 195 | 535757 | 2663.07 | 849 | 827 | 200.9 |
| D | 12 | 233 | 493716 | 2453.78 | 849 | 827 | 200.9 |
| D | 8 | 230 | 200803 | 995.55 | 849 | 827 | 200.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

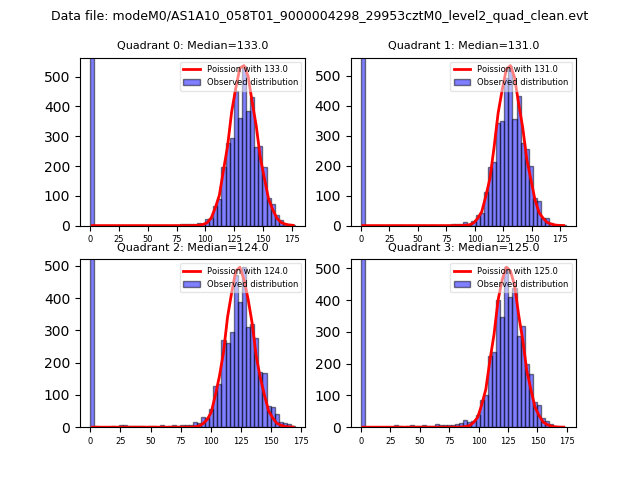

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
