| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T01_9000004298_29954cztM0_level2.evt | modeM0/AS1A10_058T01_9000004298_29954cztM0_level2_quad_clean.evt |
| Size (bytes) | 660,297,600 | 95,869,440 |
| Size | 629.7 MB | 91.4 MB |
| Events in quadrant A | 3,455,468 | 621,440 |
| Events in quadrant B | 6,073,915 | 608,561 |
| Events in quadrant C | 5,443,736 | 579,444 |
| Events in quadrant D | 4,528,088 | 583,051 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14998 | 2 |
| B | 0 | 23293 | 4 |
| C | 0 | 21126 | 2 |
| D | 0 | 18240 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7335 | 50 | 0.681663% |
| B | 7334 | 268 | 3.654213% |
| C | 7334 | 316 | 4.308699% |
| D | 7334 | 127 | 1.731661% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7620 | 7337 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7619 | 7336 | 70 | 70 | 0.92% | 0.95% |  |
| C | 7619 | 7336 | 52 | 52 | 0.68% | 0.71% |  |
| D | 7619 | 7336 | 83 | 83 | 1.09% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 15681 | 82.88 | 889 | 871 | 178.7 |
| A | 8 | 192 | 14538 | 76.48 | 889 | 871 | 178.7 |
| A | 12 | 96 | 9149 | 46.32 | 889 | 871 | 178.7 |
| B | 6 | 159 | 2147706 | 12829.27 | 867 | 843 | 167.3 |
| B | 3 | 64 | 462222 | 2757.12 | 867 | 843 | 167.3 |
| B | 5 | 172 | 21133 | 121.25 | 867 | 843 | 167.3 |
| C | 3 | 233 | 2013502 | 10346.78 | 835 | 840 | 194.5 |
| C | 14 | 238 | 136031 | 695.0 | 835 | 840 | 194.5 |
| C | 2 | 114 | 17100 | 83.59 | 835 | 840 | 194.5 |
| D | 8 | 195 | 522407 | 2623.82 | 849 | 826 | 198.8 |
| D | 2 | 250 | 174165 | 871.98 | 849 | 826 | 198.8 |
| D | 12 | 233 | 172654 | 864.38 | 849 | 826 | 198.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

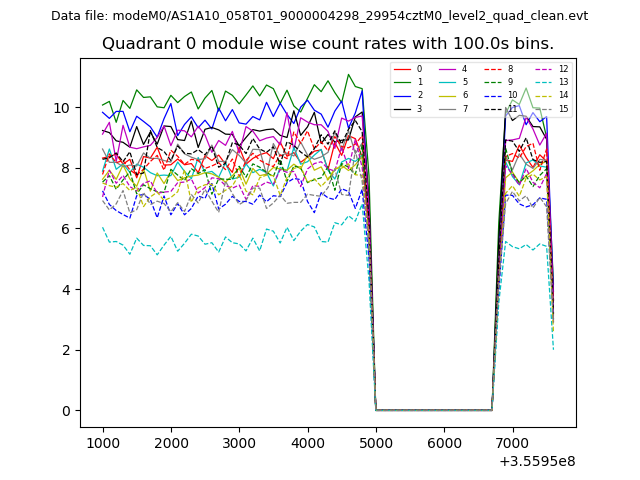

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

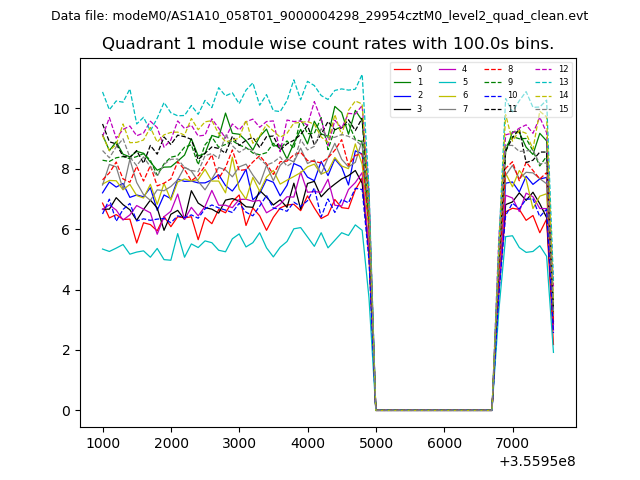

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

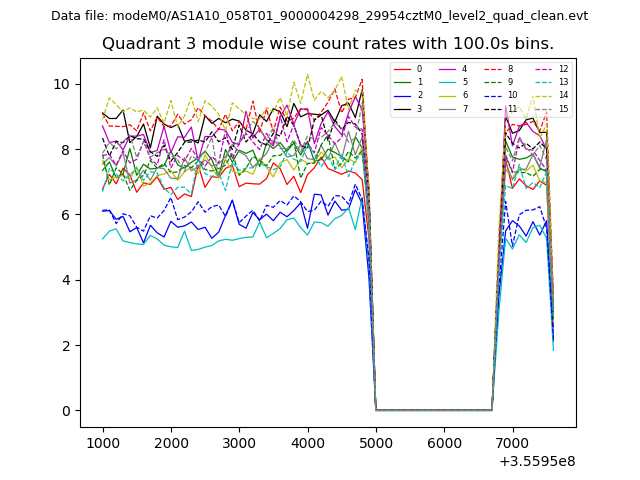

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

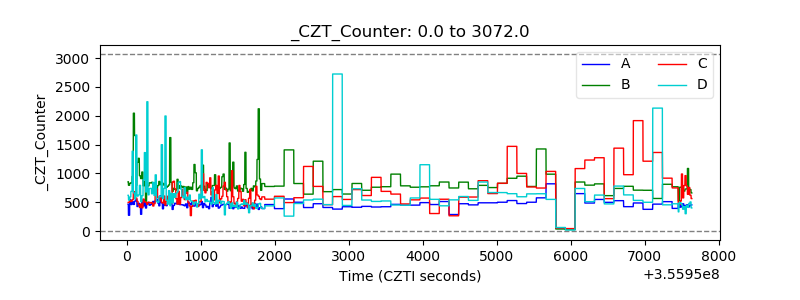

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
