| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T01_9000004298_29963cztM0_level2.evt | modeM0/AS1A10_058T01_9000004298_29963cztM0_level2_quad_clean.evt |
| Size (bytes) | 733,357,440 | 96,782,400 |
| Size | 699.4 MB | 92.3 MB |
| Events in quadrant A | 3,331,095 | 662,075 |
| Events in quadrant B | 5,032,786 | 653,535 |
| Events in quadrant C | 9,647,008 | 572,278 |
| Events in quadrant D | 3,787,745 | 616,790 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13553 | 1 |
| B | 0 | 18825 | 3 |
| C | 0 | 32908 | 1 |
| D | 0 | 15063 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6099 | 81 | 1.328087% |
| B | 6099 | 129 | 2.115101% |
| C | 6099 | 1935 | 31.726513% |
| D | 6099 | 146 | 2.393835% |

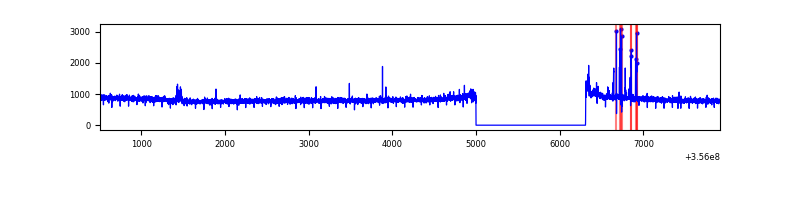

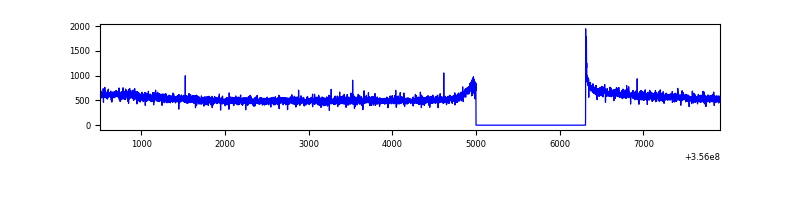

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7409 | 6100 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7409 | 6100 | 9 | 9 | 0.12% | 0.15% |  |
| C | 7409 | 6100 | 1338 | 1338 | 18.06% | 21.93% |  |
| D | 7409 | 6100 | 74 | 74 | 1.00% | 1.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 13556 | 76.25 | 855 | 840 | 166.8 |
| A | 13 | 254 | 12025 | 67.07 | 855 | 840 | 166.8 |
| A | 8 | 192 | 11515 | 64.01 | 855 | 840 | 166.8 |
| B | 6 | 159 | 1715141 | 11137.99 | 826 | 808 | 153.9 |
| B | 4 | 80 | 57747 | 369.93 | 826 | 808 | 153.9 |
| B | 12 | 111 | 17622 | 109.24 | 826 | 808 | 153.9 |
| C | 3 | 233 | 6556946 | 37924.72 | 757 | 765 | 172.9 |
| C | 14 | 238 | 122956 | 706.82 | 757 | 765 | 172.9 |
| C | 2 | 114 | 13588 | 74.18 | 757 | 765 | 172.9 |
| D | 12 | 233 | 355676 | 1857.49 | 827 | 811 | 191.0 |
| D | 8 | 195 | 200110 | 1043.2 | 827 | 811 | 191.0 |
| D | 7 | 80 | 46919 | 241.35 | 827 | 811 | 191.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

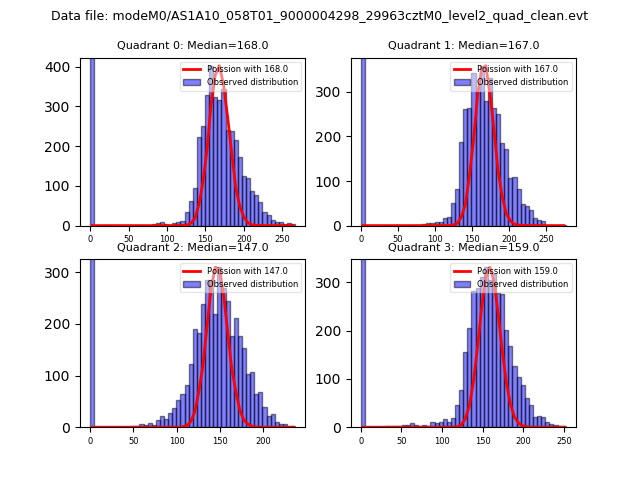

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

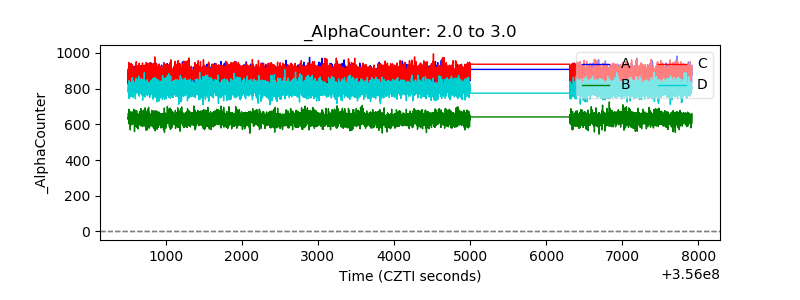

| Alpha Counter |  |
| _CPM_Rate |  |

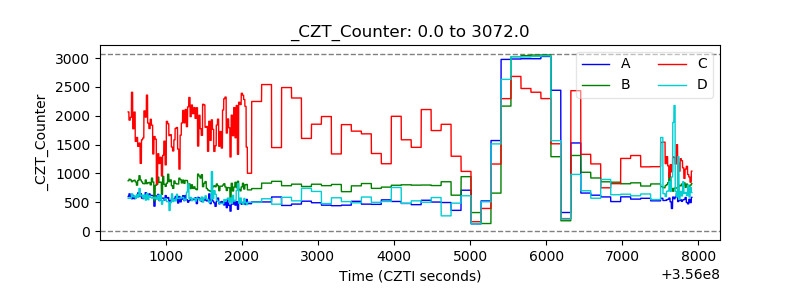

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

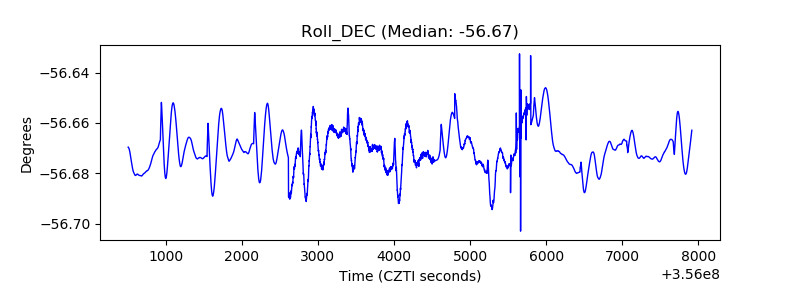

| _Roll_DEC |  |

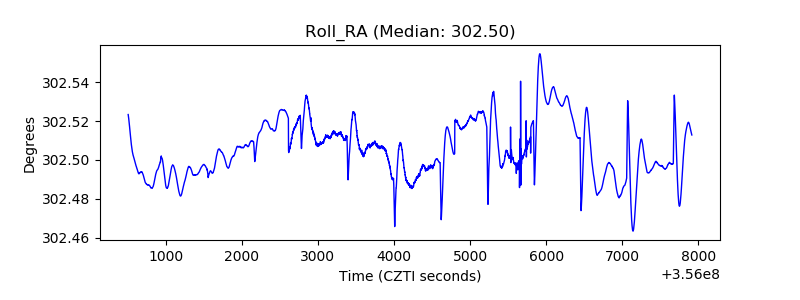

| _Roll_RA |  |
| Veto Counter |  |
