| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T06_9000004300_29969cztM0_level2.evt | modeM0/AS1A10_053T06_9000004300_29969cztM0_level2_quad_clean.evt |
| Size (bytes) | 574,986,240 | 91,488,960 |
| Size | 548.3 MB | 87.3 MB |
| Events in quadrant A | 3,581,979 | 582,407 |
| Events in quadrant B | 5,644,849 | 573,456 |
| Events in quadrant C | 3,528,010 | 553,571 |
| Events in quadrant D | 4,160,548 | 549,177 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15309 | 1 |
| B | 0 | 22187 | 2 |
| C | 0 | 14983 | 1 |
| D | 0 | 17076 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7352 | 44 | 0.598477% |
| B | 7351 | 95 | 1.292341% |
| C | 7351 | 61 | 0.829819% |
| D | 7352 | 76 | 1.033732% |

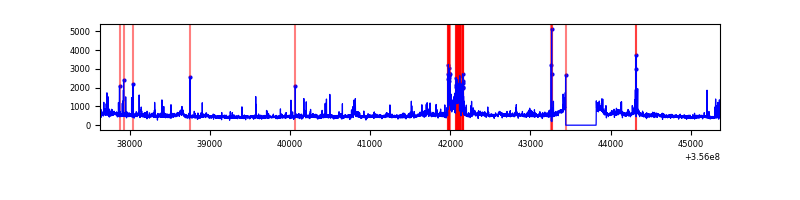

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7732 | 7353 | 4 | 4 | 0.05% | 0.05% |  |
| B | 7731 | 7352 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7731 | 7352 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7732 | 7352 | 49 | 49 | 0.63% | 0.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 110806 | 617.34 | 888 | 870 | 178.1 |
| A | 8 | 192 | 15150 | 80.19 | 888 | 870 | 178.1 |
| A | 13 | 254 | 14247 | 75.12 | 888 | 870 | 178.1 |
| B | 6 | 159 | 2167320 | 12939.27 | 872 | 852 | 167.4 |
| B | 12 | 111 | 20817 | 119.24 | 872 | 852 | 167.4 |
| B | 11 | 111 | 18948 | 108.08 | 872 | 852 | 167.4 |
| C | 14 | 238 | 136139 | 685.32 | 842 | 846 | 197.4 |
| C | 3 | 233 | 95731 | 480.64 | 842 | 846 | 197.4 |
| C | 2 | 114 | 17308 | 83.39 | 842 | 846 | 197.4 |
| D | 12 | 233 | 342237 | 1652.21 | 856 | 830 | 206.6 |
| D | 8 | 195 | 313437 | 1512.83 | 856 | 830 | 206.6 |
| D | 7 | 80 | 116326 | 558.93 | 856 | 830 | 206.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

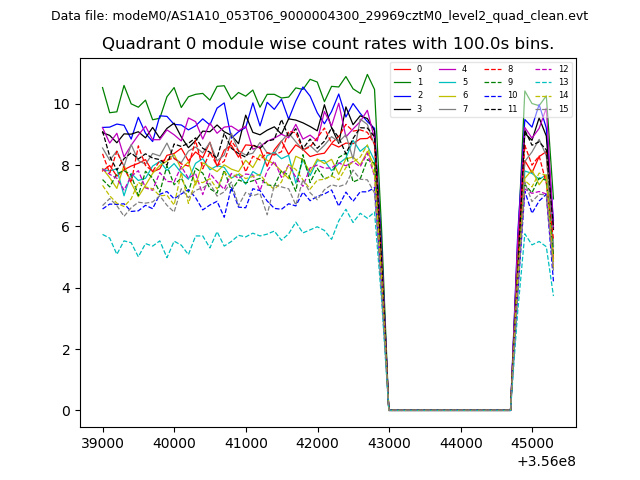

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

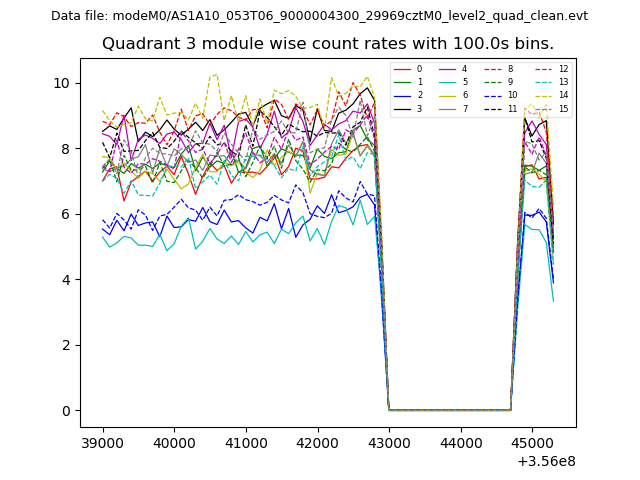

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

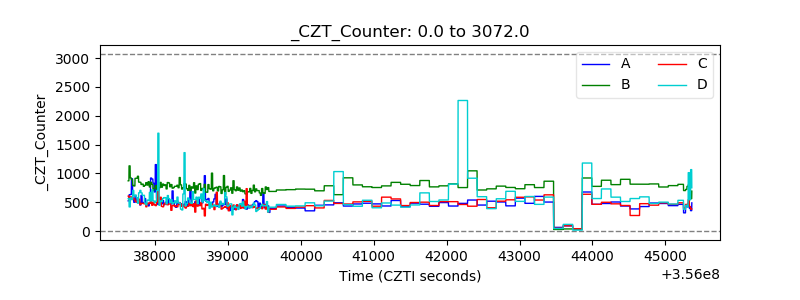

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

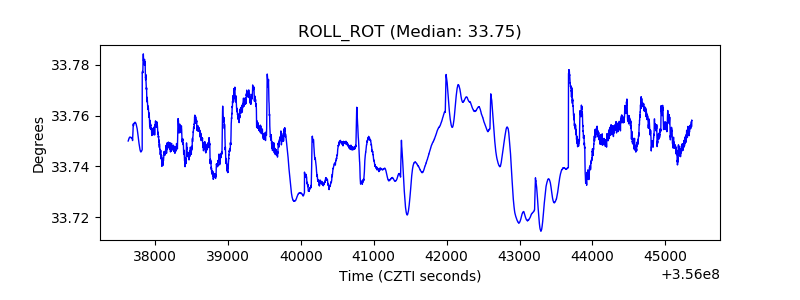

| _ROLL_ROT |  |
| _Roll_DEC |  |

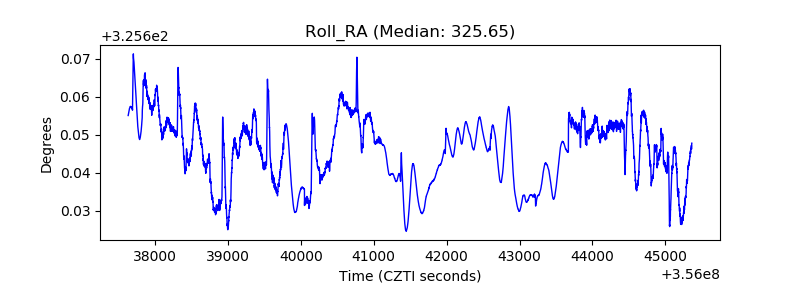

| _Roll_RA |  |

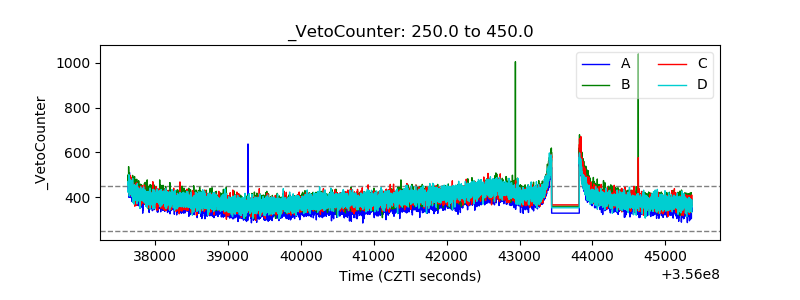

| Veto Counter |  |
