| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T05_9000004308_29986cztM0_level2.evt | modeM0/AS1A10_071T05_9000004308_29986cztM0_level2_quad_clean.evt |
| Size (bytes) | 808,128,000 | 130,003,200 |
| Size | 770.7 MB | 124.0 MB |
| Events in quadrant A | 5,085,390 | 814,794 |
| Events in quadrant B | 8,152,890 | 812,339 |
| Events in quadrant C | 5,167,782 | 787,435 |
| Events in quadrant D | 5,341,542 | 778,648 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22052 | 2 |
| B | 0 | 32249 | 2 |
| C | 0 | 22185 | 2 |
| D | 0 | 23022 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 220 | 0 |
| B | 0 | 220 | 0 |
| C | 0 | 220 | 0 |
| D | 0 | 220 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10738 | 74 | 0.689141% |
| B | 10738 | 141 | 1.313094% |
| C | 10738 | 137 | 1.275843% |
| D | 10738 | 55 | 0.512200% |

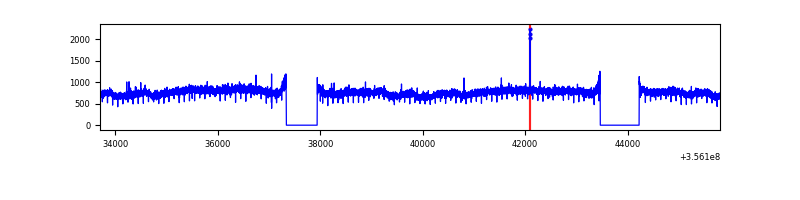

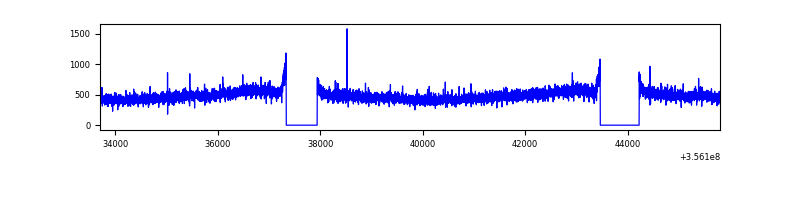

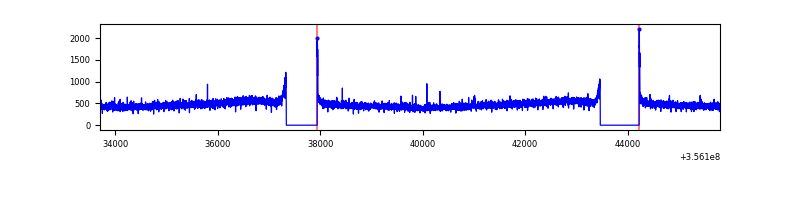

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

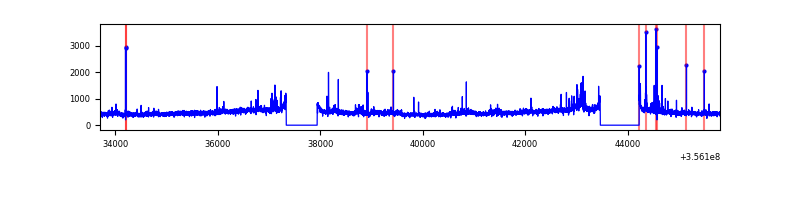

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12103 | 10740 | 2 | 2 | 0.02% | 0.02% |  |
| B | 12103 | 10740 | 3 | 3 | 0.02% | 0.03% |  |
| C | 12103 | 10740 | 0 | 0 | 0.00% | 0.00% |  |
| D | 12103 | 10740 | 10 | 10 | 0.08% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 28258 | 103.22 | 1304 | 1279 | 261.4 |
| A | 3 | 1 | 26860 | 97.87 | 1304 | 1279 | 261.4 |
| A | 13 | 254 | 18980 | 67.73 | 1304 | 1279 | 261.4 |
| B | 6 | 159 | 3081273 | 12436.08 | 1283 | 1249 | 247.7 |
| B | 12 | 111 | 31857 | 123.58 | 1283 | 1249 | 247.7 |
| B | 11 | 111 | 28989 | 112.0 | 1283 | 1249 | 247.7 |
| C | 14 | 238 | 201624 | 680.14 | 1251 | 1259 | 294.6 |
| C | 3 | 233 | 65592 | 218.38 | 1251 | 1259 | 294.6 |
| C | 2 | 114 | 25212 | 81.31 | 1251 | 1259 | 294.6 |
| D | 8 | 195 | 349118 | 1167.56 | 1259 | 1226 | 298.0 |
| D | 2 | 250 | 114054 | 378.66 | 1259 | 1226 | 298.0 |
| D | 12 | 33 | 42825 | 139.61 | 1259 | 1226 | 298.0 |

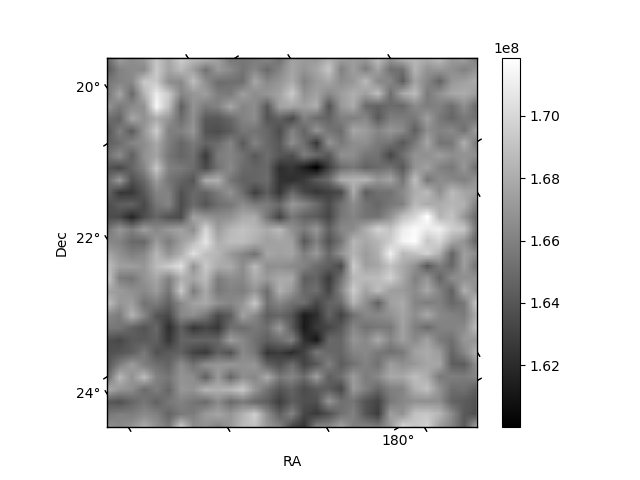

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

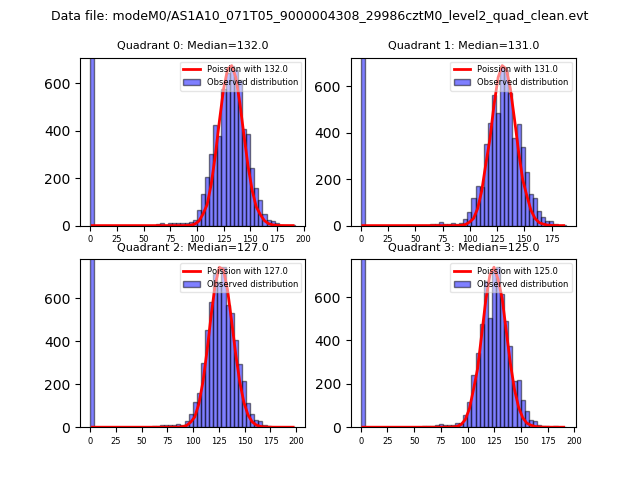

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

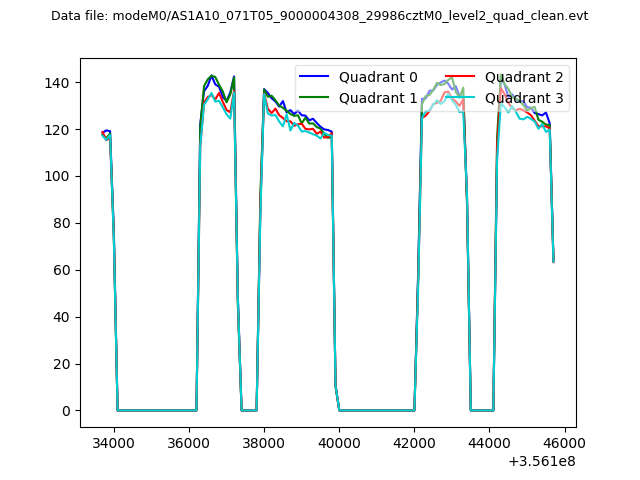

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

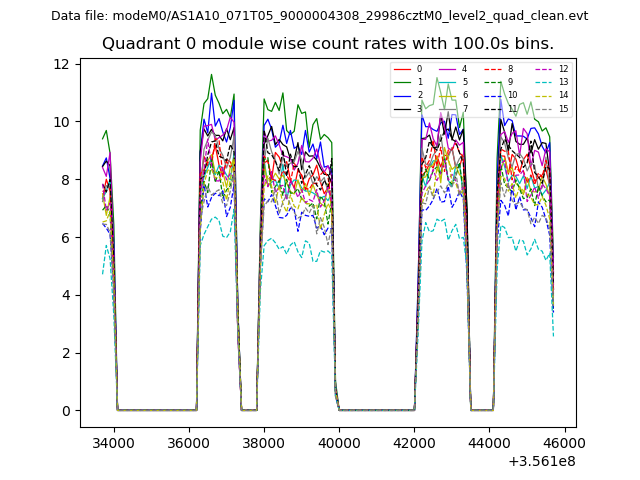

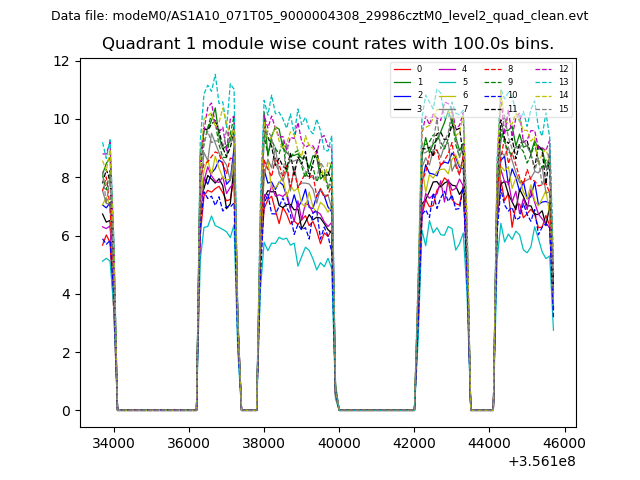

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

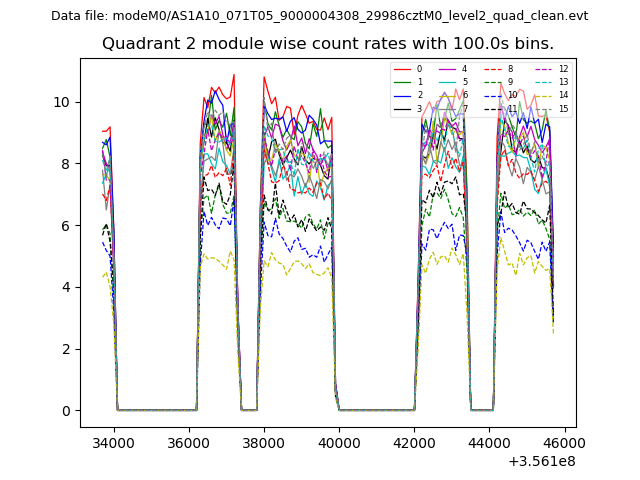

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

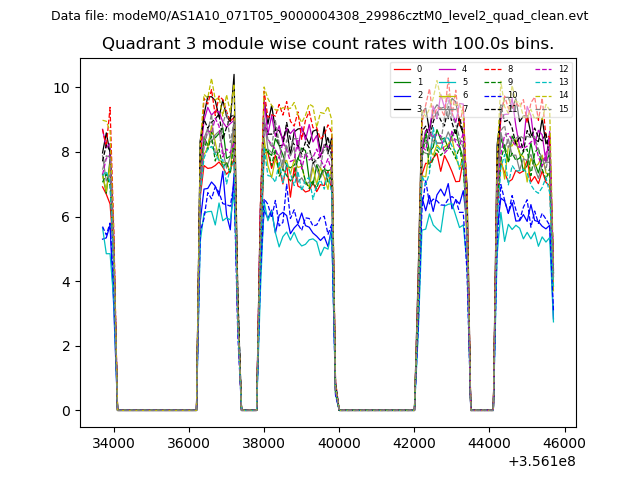

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

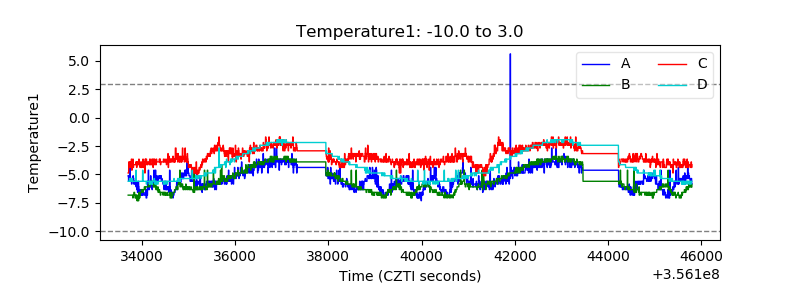

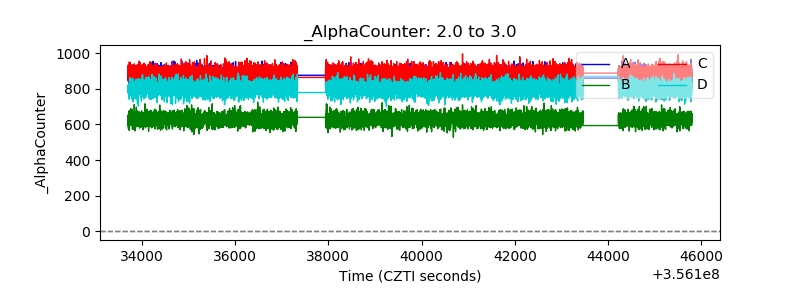

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

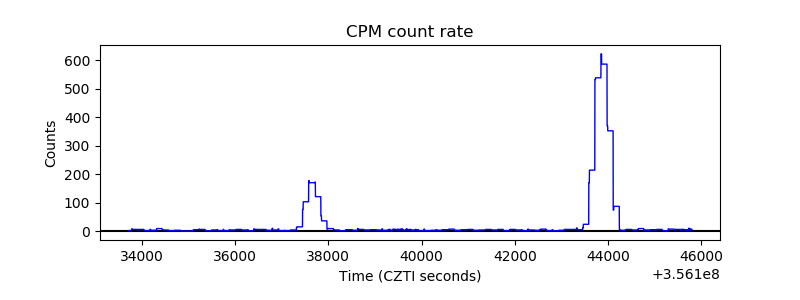

| _CPM_Rate |  |

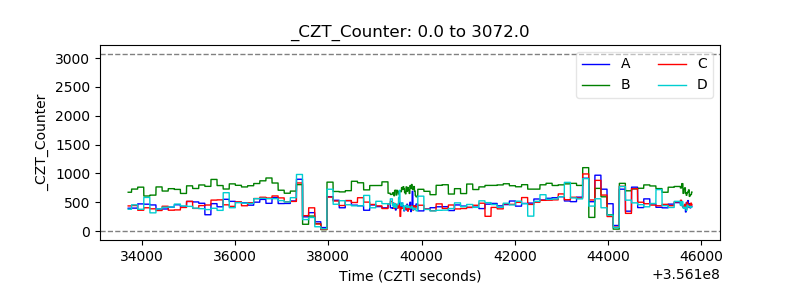

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

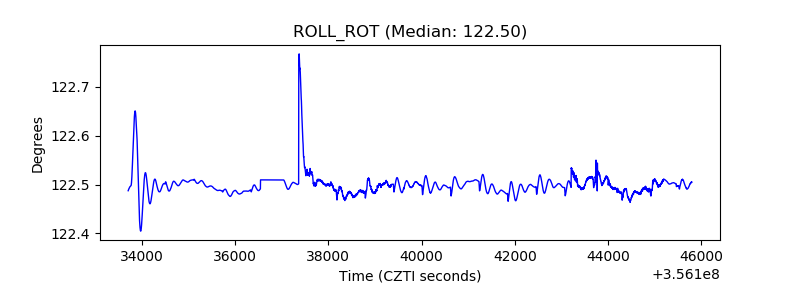

| _ROLL_ROT |  |

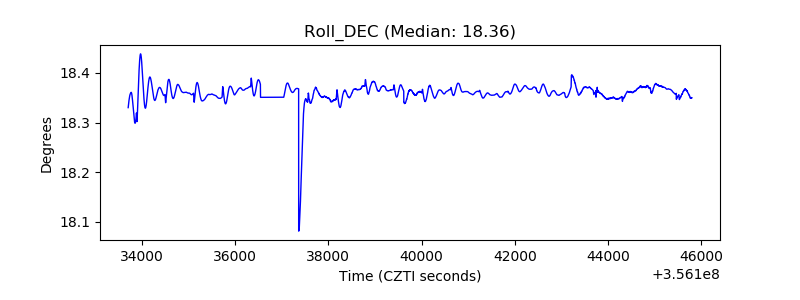

| _Roll_DEC |  |

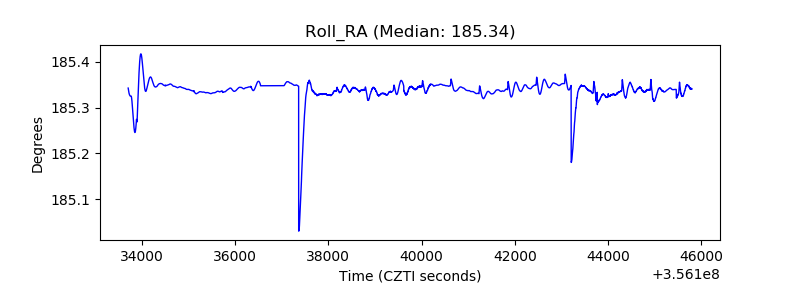

| _Roll_RA |  |

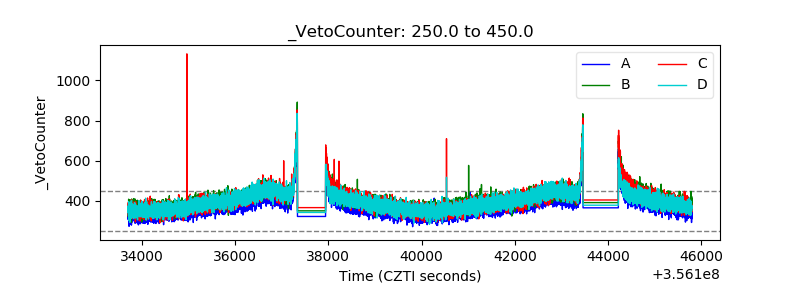

| Veto Counter |  |
