| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T05_9000004308_29987cztM0_level2.evt | modeM0/AS1A10_071T05_9000004308_29987cztM0_level2_quad_clean.evt |
| Size (bytes) | 663,350,400 | 86,117,760 |
| Size | 632.6 MB | 82.1 MB |
| Events in quadrant A | 3,251,637 | 567,623 |
| Events in quadrant B | 5,099,262 | 569,945 |
| Events in quadrant C | 3,403,331 | 547,341 |
| Events in quadrant D | 7,874,106 | 447,331 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13950 | 2 |
| B | 0 | 20393 | 3 |
| C | 0 | 14305 | 2 |
| D | 0 | 28146 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6812 | 36 | 0.528479% |
| B | 6811 | 47 | 0.690060% |
| C | 6811 | 95 | 1.394803% |
| D | 6811 | 1695 | 24.886213% |

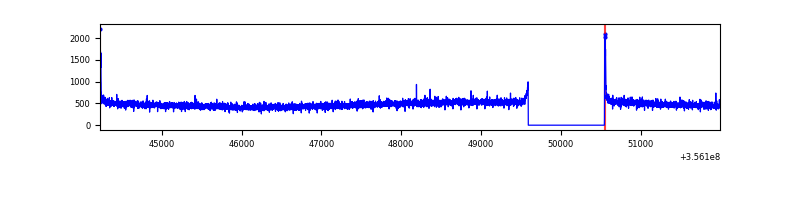

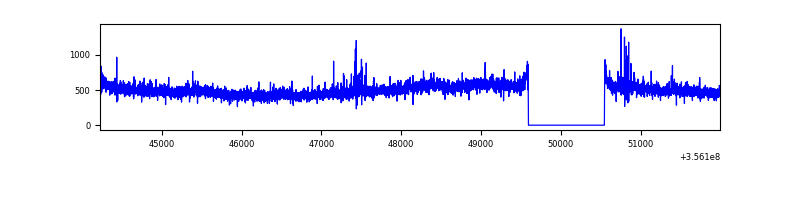

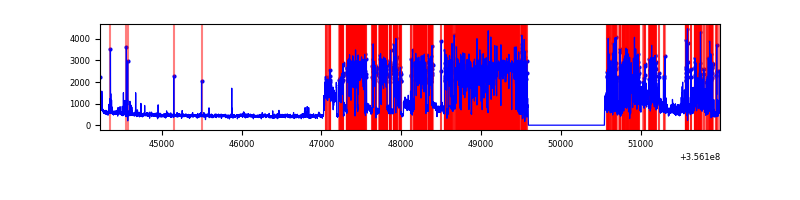

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7767 | 6813 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7766 | 6812 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7766 | 6812 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7766 | 6812 | 1543 | 1543 | 19.87% | 22.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 32523 | 190.15 | 831 | 815 | 166.8 |
| A | 3 | 1 | 12542 | 70.33 | 831 | 815 | 166.8 |
| A | 13 | 254 | 11178 | 62.15 | 831 | 815 | 166.8 |
| B | 6 | 159 | 1873104 | 11932.24 | 820 | 799 | 156.9 |
| B | 12 | 111 | 20183 | 123.53 | 820 | 799 | 156.9 |
| B | 11 | 111 | 18160 | 110.64 | 820 | 799 | 156.9 |
| C | 14 | 238 | 143647 | 760.7 | 795 | 799 | 187.8 |
| C | 3 | 233 | 124213 | 657.21 | 795 | 799 | 187.8 |
| C | 14 | 254 | 22306 | 114.53 | 795 | 799 | 187.8 |
| D | 7 | 80 | 4923338 | 28976.37 | 705 | 685 | 169.9 |
| D | 8 | 195 | 183684 | 1077.19 | 705 | 685 | 169.9 |
| D | 2 | 250 | 46028 | 266.9 | 705 | 685 | 169.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

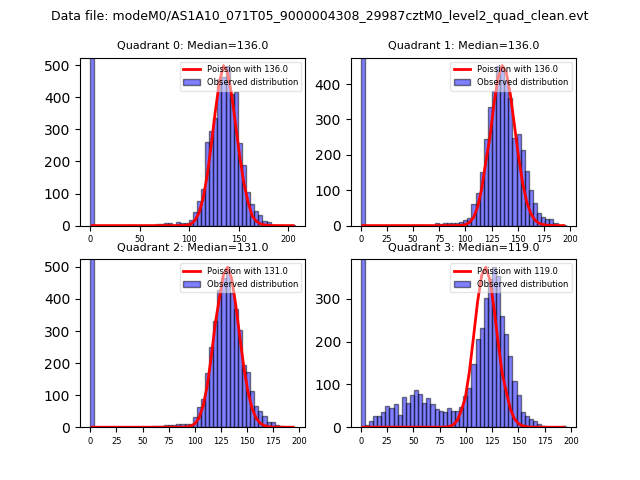

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

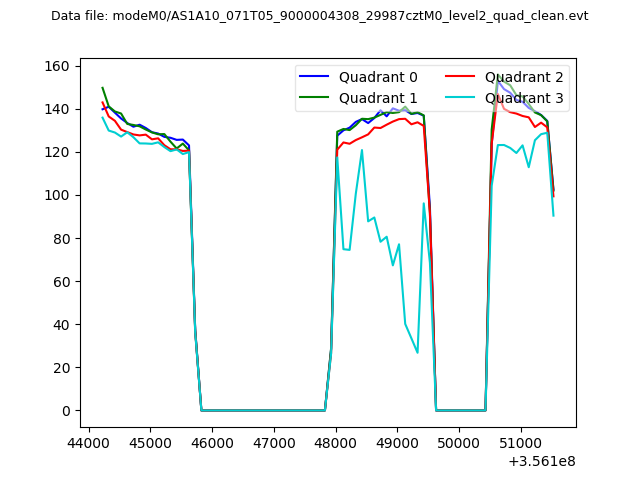

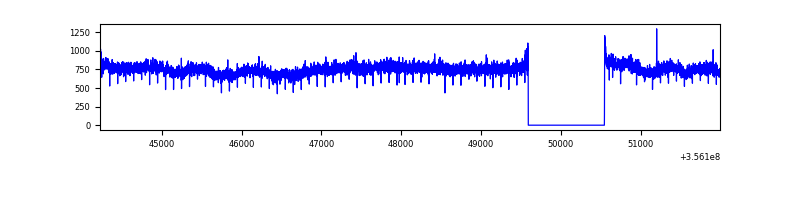

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

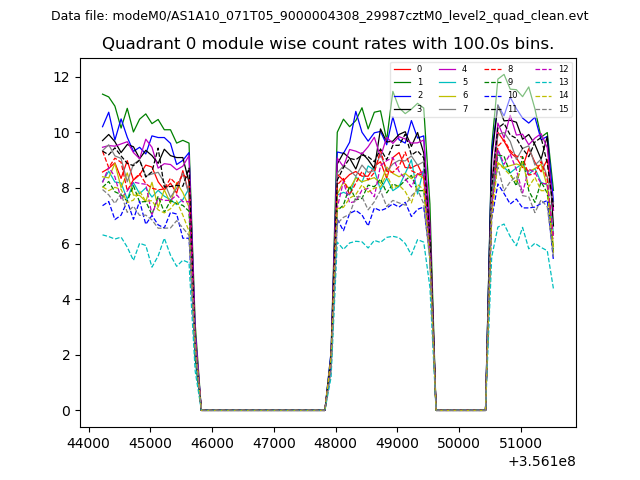

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

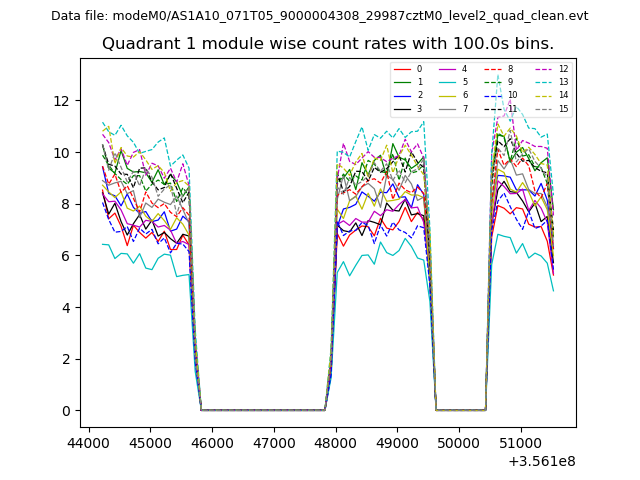

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

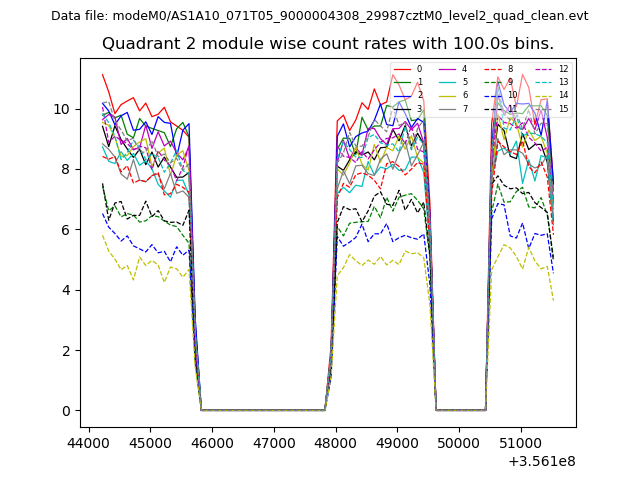

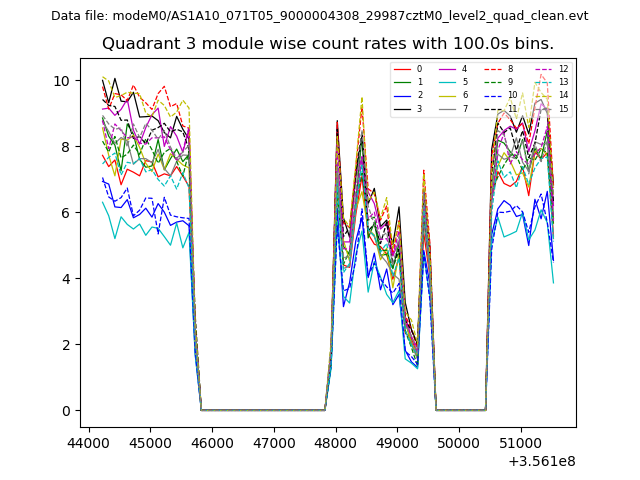

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

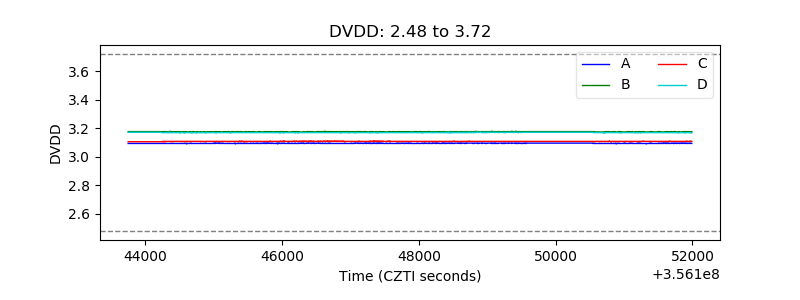

| D_VDD |  |

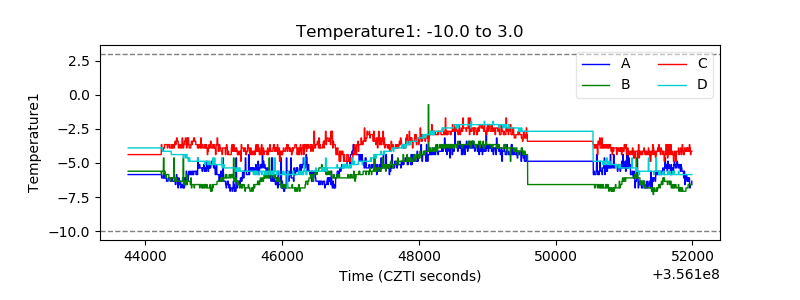

| Temperature 1 |  |

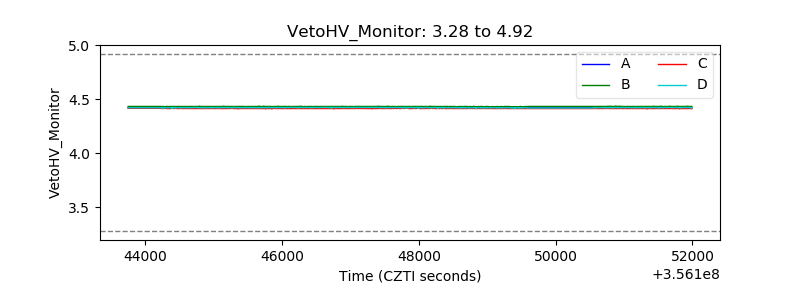

| Veto HV Monitor |  |
| Veto LLD |  |

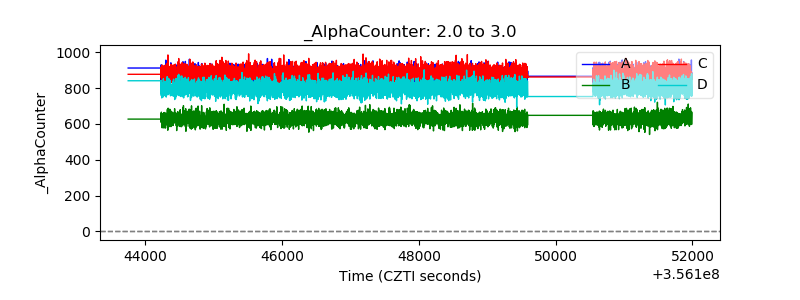

| Alpha Counter |  |

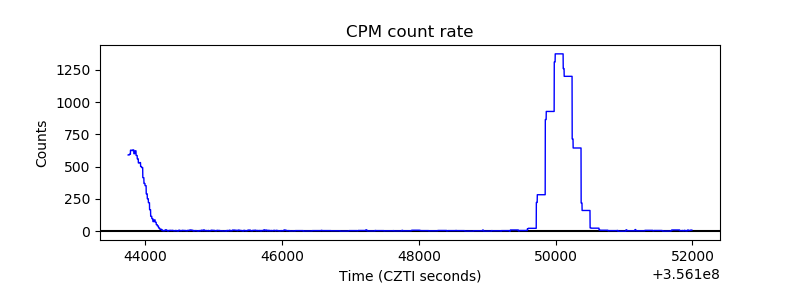

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

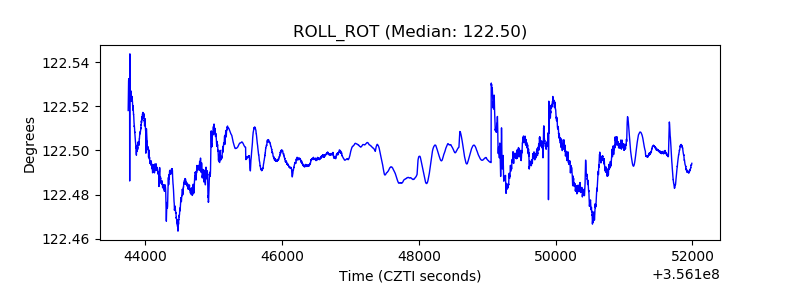

| _ROLL_ROT |  |

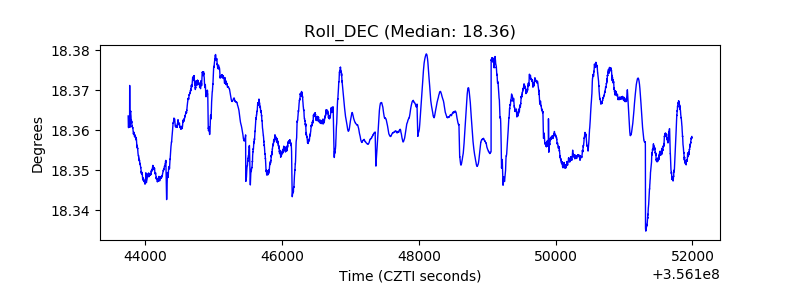

| _Roll_DEC |  |
| _Roll_RA |  |

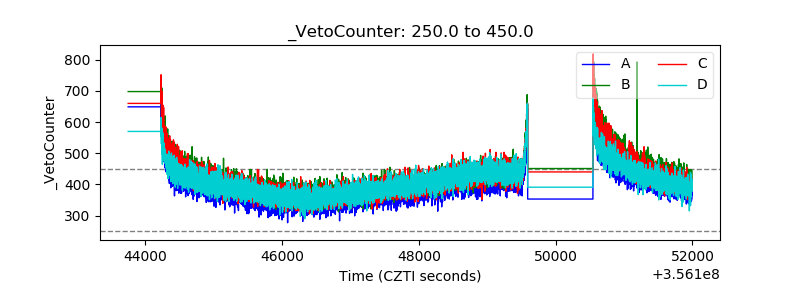

| Veto Counter |  |
