| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T05_9000004308_29995cztM0_level2.evt | modeM0/AS1A10_071T05_9000004308_29995cztM0_level2_quad_clean.evt |
| Size (bytes) | 199,768,320 | 32,065,920 |
| Size | 190.5 MB | 30.6 MB |
| Events in quadrant A | 1,175,921 | 230,091 |
| Events in quadrant B | 1,573,362 | 193,979 |
| Events in quadrant C | 1,214,303 | 224,285 |
| Events in quadrant D | 1,935,121 | 163,605 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8660 | 3785 |
| B | 0 | 12588 | 6430 |
| C | 0 | 8632 | 3629 |
| D | 0 | 14907 | 7880 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 81 | 35 |
| B | 0 | 84 | 34 |
| C | 0 | 83 | 43 |
| D | 0 | 84 | 32 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 1 |
| B | 0 | 5 | 1 |
| C | 0 | 4 | 2 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2333 | 6 | 0.257180% |
| B | 2046 | 31 | 1.515152% |
| C | 2396 | 26 | 1.085142% |
| D | 1908 | 148 | 7.756813% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3767 | 2965 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3526 | 2709 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3764 | 2993 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3692 | 2583 | 73 | 73 | 1.98% | 2.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 5327 | 81.35 | 302 | 297 | 61.8 |
| A | 3 | 1 | 4872 | 73.99 | 302 | 297 | 61.8 |
| A | 13 | 254 | 4251 | 63.95 | 302 | 297 | 61.8 |
| B | 6 | 159 | 544251 | 10590.69 | 259 | 253 | 51.4 |
| B | 0 | 183 | 7358 | 138.32 | 259 | 253 | 51.4 |
| B | 12 | 111 | 6079 | 113.42 | 259 | 253 | 51.4 |
| C | 14 | 238 | 50438 | 715.82 | 295 | 297 | 70.0 |
| C | 2 | 114 | 5654 | 76.48 | 295 | 297 | 70.0 |
| C | 14 | 254 | 3968 | 52.41 | 295 | 297 | 70.0 |
| D | 7 | 80 | 1026908 | 17916.4 | 235 | 228 | 57.3 |
| D | 8 | 195 | 12111 | 207.37 | 235 | 228 | 57.3 |
| D | 2 | 234 | 6803 | 114.74 | 235 | 228 | 57.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

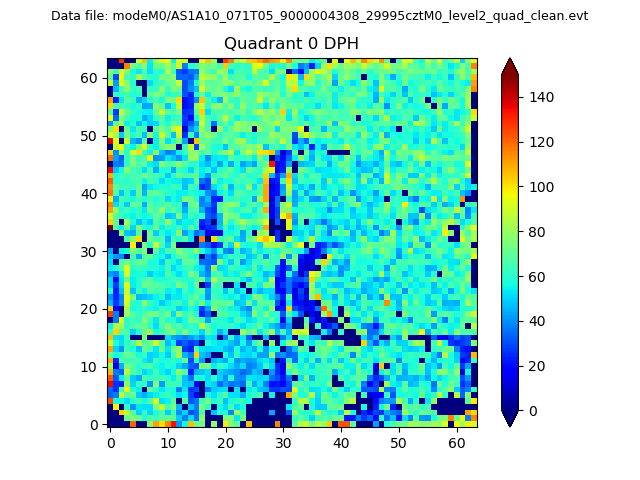

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

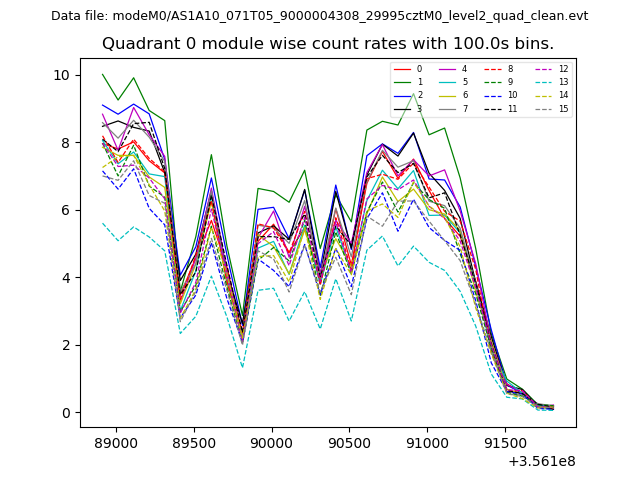

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

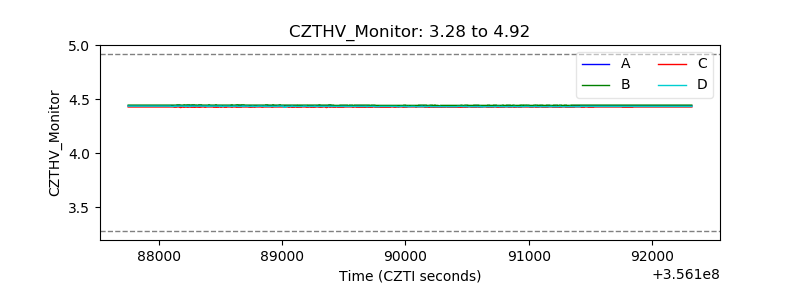

| CZT HV Monitor |  |
| D_VDD |  |

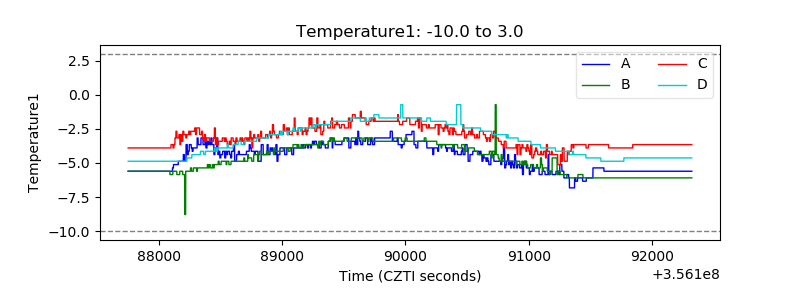

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

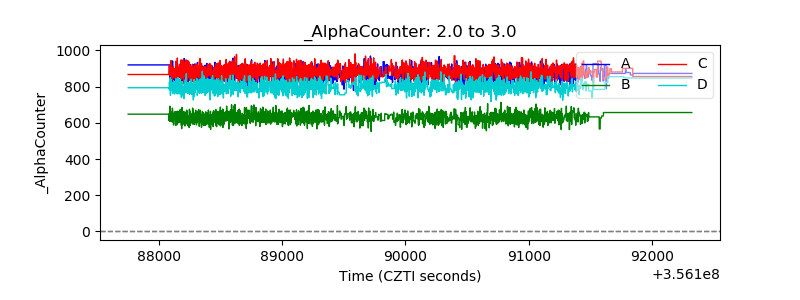

| Alpha Counter |  |
| _CPM_Rate |  |

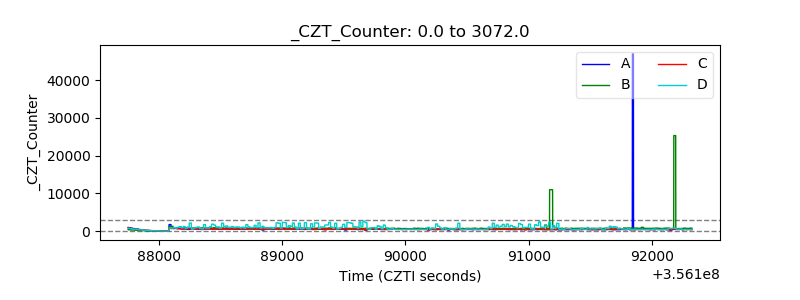

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

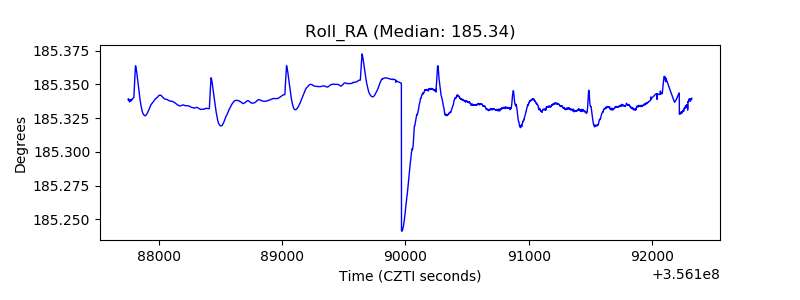

| _Roll_RA |  |

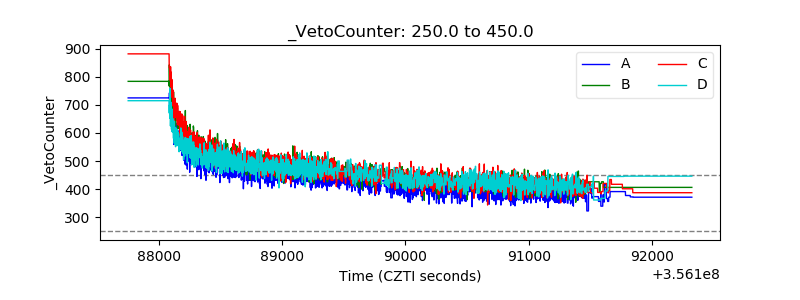

| Veto Counter |  |
