| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_083T01_9000004306_29982cztM0_level2.evt | modeM0/AS1A10_083T01_9000004306_29982cztM0_level2_quad_clean.evt |
| Size (bytes) | 404,009,280 | 71,124,480 |
| Size | 385.3 MB | 67.8 MB |
| Events in quadrant A | 2,484,264 | 463,127 |
| Events in quadrant B | 4,087,336 | 456,271 |
| Events in quadrant C | 2,578,065 | 438,954 |
| Events in quadrant D | 2,737,859 | 436,615 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10647 | 2 |
| B | 0 | 15691 | 1 |
| C | 0 | 10835 | 1 |
| D | 0 | 11331 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5120 | 105 | 2.050781% |
| B | 5120 | 195 | 3.808594% |
| C | 5120 | 114 | 2.226562% |
| D | 5120 | 59 | 1.152344% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5390 | 5121 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5390 | 5121 | 6 | 6 | 0.11% | 0.12% |  |
| C | 5390 | 5121 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5390 | 5121 | 13 | 13 | 0.24% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 13525 | 99.7 | 639 | 625 | 129.4 |
| A | 13 | 254 | 9379 | 67.66 | 639 | 625 | 129.4 |
| A | 3 | 137 | 6384 | 44.51 | 639 | 625 | 129.4 |
| B | 6 | 159 | 1507793 | 12280.64 | 628 | 609 | 122.7 |
| B | 6 | 36 | 95564 | 773.7 | 628 | 609 | 122.7 |
| B | 12 | 111 | 14919 | 116.6 | 628 | 609 | 122.7 |
| C | 14 | 238 | 97983 | 671.46 | 612 | 616 | 145.0 |
| C | 3 | 233 | 84909 | 581.3 | 612 | 616 | 145.0 |
| C | 2 | 114 | 12315 | 80.68 | 612 | 616 | 145.0 |
| D | 8 | 195 | 170626 | 1134.96 | 623 | 606 | 149.8 |
| D | 7 | 80 | 126639 | 841.33 | 623 | 606 | 149.8 |
| D | 2 | 250 | 37901 | 248.96 | 623 | 606 | 149.8 |

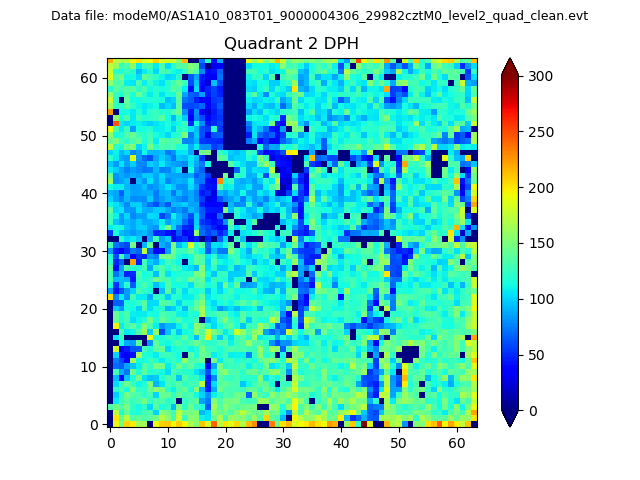

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

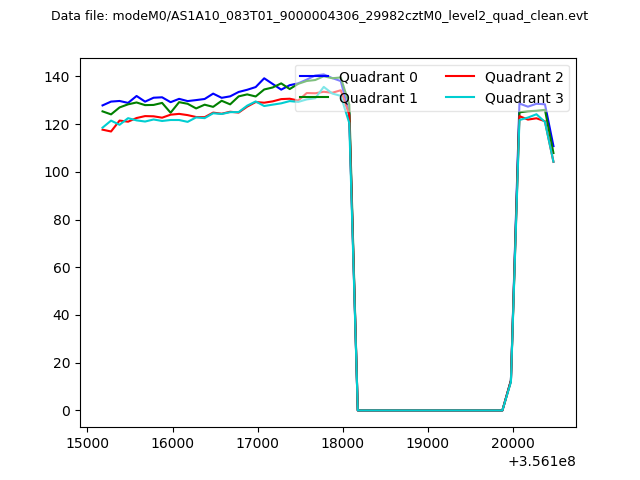

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

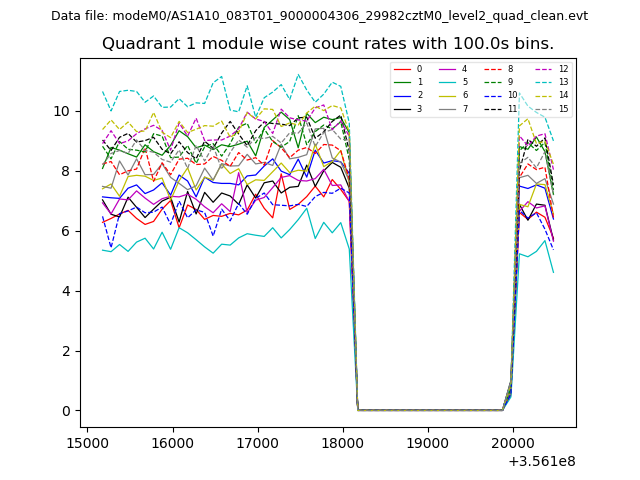

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

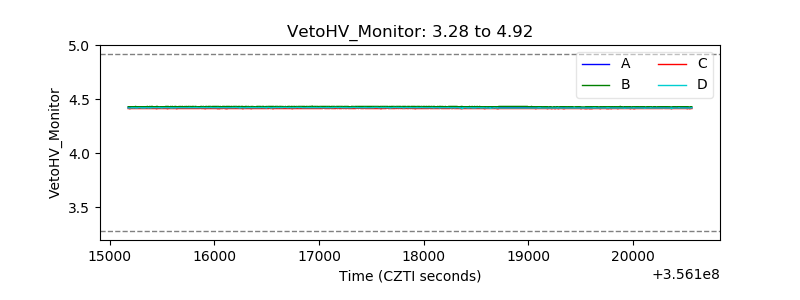

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

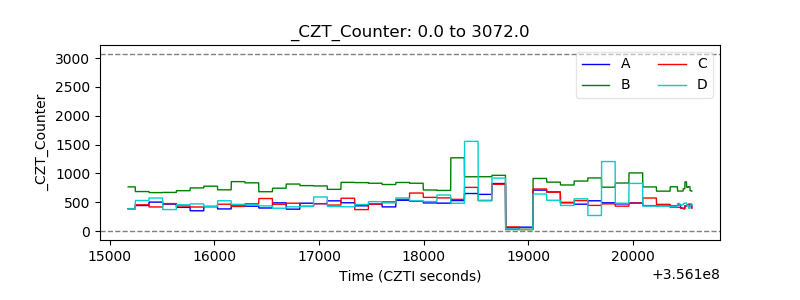

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

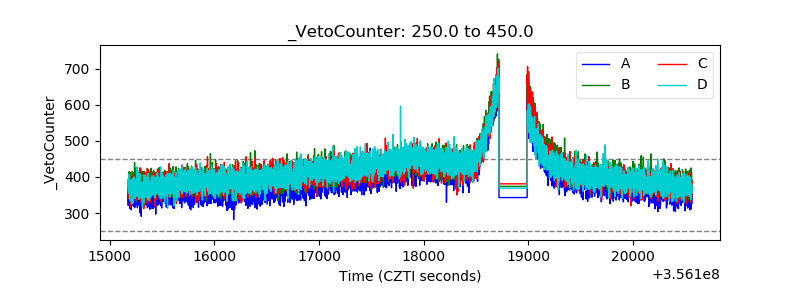

| Veto Counter |  |
