| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T01_9000004310_29996cztM0_level2.evt | modeM0/AS1A10_071T01_9000004310_29996cztM0_level2_quad_clean.evt |
| Size (bytes) | 332,781,120 | 45,118,080 |
| Size | 317.4 MB | 43.0 MB |
| Events in quadrant A | 2,135,452 | 277,867 |
| Events in quadrant B | 3,217,072 | 276,381 |
| Events in quadrant C | 2,165,573 | 264,568 |
| Events in quadrant D | 2,282,805 | 260,246 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 86 | 0 |
| B | 0 | 86 | 0 |
| C | 0 | 86 | 0 |
| D | 0 | 86 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8770 | 1 |
| B | 0 | 12517 | 1 |
| C | 0 | 8859 | 1 |
| D | 0 | 9335 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4059 | 184 | 4.533136% |
| B | 4058 | 305 | 7.516018% |
| C | 4058 | 243 | 5.988172% |
| D | 4058 | 174 | 4.287827% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

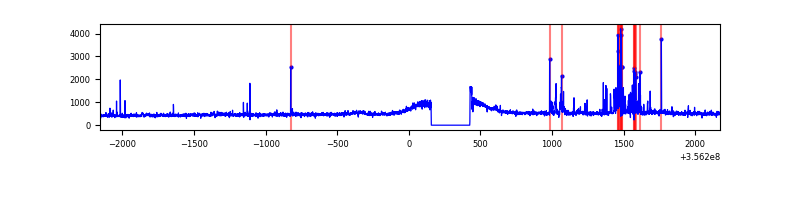

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4329 | 4060 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4328 | 4059 | 1 | 1 | 0.02% | 0.02% |  |
| C | 4328 | 4059 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4328 | 4059 | 18 | 18 | 0.42% | 0.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 9928 | 82.32 | 550 | 537 | 114.1 |
| A | 13 | 254 | 7269 | 59.01 | 550 | 537 | 114.1 |
| A | 3 | 137 | 5844 | 46.52 | 550 | 537 | 114.1 |
| B | 6 | 159 | 1093281 | 10210.11 | 536 | 522 | 107.0 |
| B | 12 | 111 | 13765 | 123.73 | 536 | 522 | 107.0 |
| B | 11 | 111 | 12636 | 113.19 | 536 | 522 | 107.0 |
| C | 14 | 238 | 82863 | 655.37 | 522 | 525 | 125.6 |
| C | 3 | 233 | 38120 | 299.24 | 522 | 525 | 125.6 |
| C | 2 | 114 | 9769 | 73.58 | 522 | 525 | 125.6 |
| D | 7 | 80 | 180049 | 1300.12 | 529 | 518 | 138.1 |
| D | 8 | 195 | 58068 | 416.76 | 529 | 518 | 138.1 |
| D | 2 | 234 | 17190 | 120.73 | 529 | 518 | 138.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

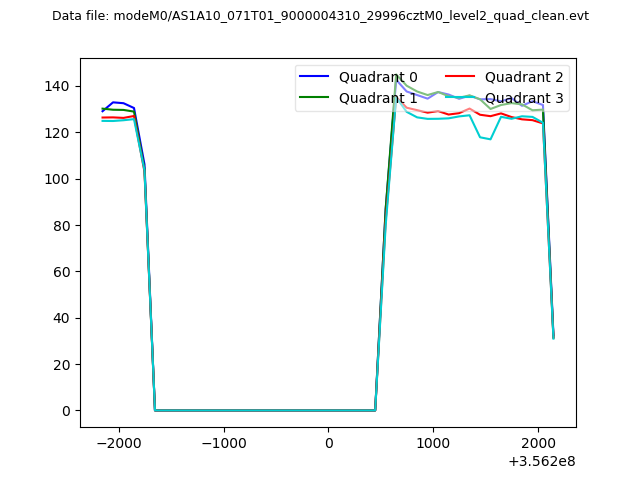

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

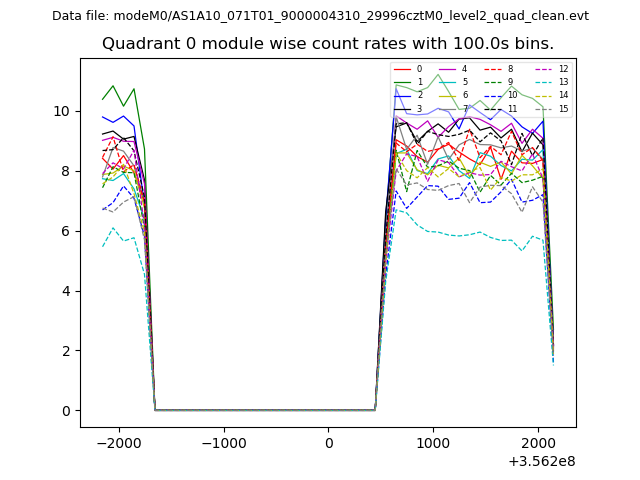

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

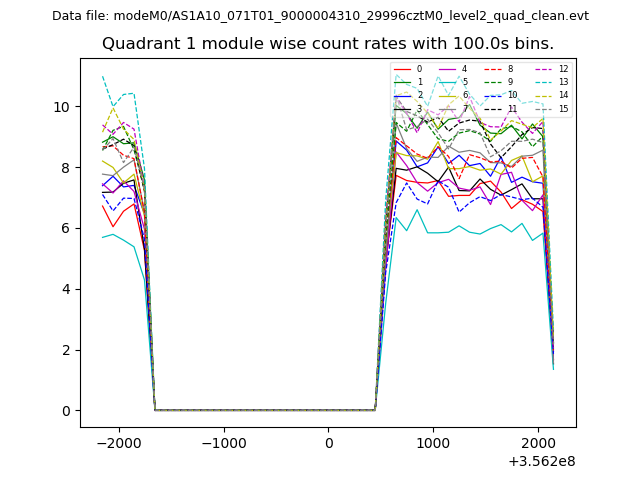

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

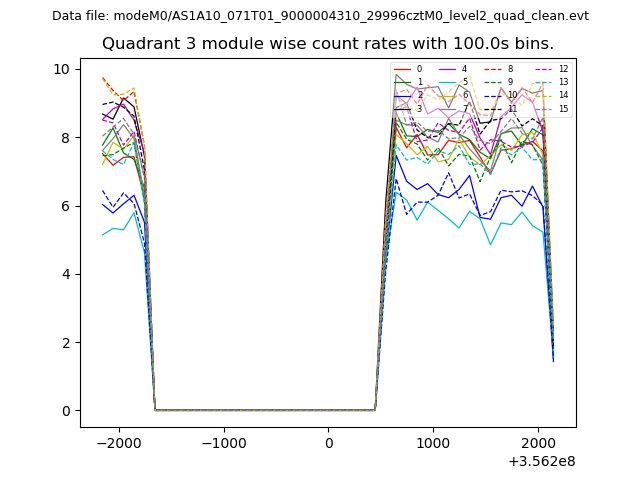

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

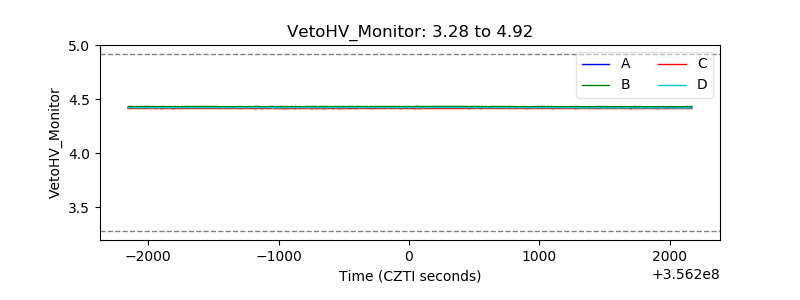

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

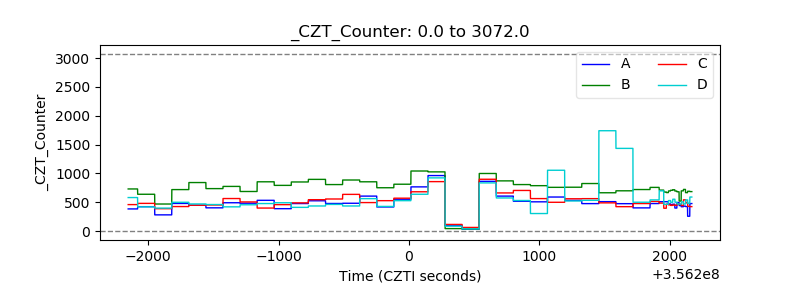

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

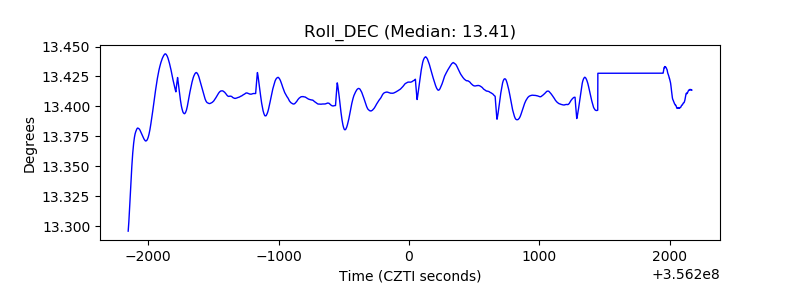

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
