| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T03_9000004314_30020cztM0_level2.evt | modeM0/AS1A10_071T03_9000004314_30020cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,019,840 | 68,342,400 |
| Size | 511.2 MB | 65.2 MB |
| Events in quadrant A | 3,493,014 | 416,079 |
| Events in quadrant B | 5,175,117 | 420,722 |
| Events in quadrant C | 3,486,833 | 396,026 |
| Events in quadrant D | 3,648,443 | 393,362 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13996 | 2 |
| B | 0 | 19523 | 2 |
| C | 0 | 14100 | 2 |
| D | 0 | 14691 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6346 | 59 | 0.929720% |
| B | 6346 | 107 | 1.686101% |
| C | 6346 | 72 | 1.134573% |
| D | 6346 | 79 | 1.244879% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7626 | 6347 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7626 | 6347 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7626 | 6347 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7626 | 6347 | 55 | 55 | 0.72% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 203 | 28671 | 156.93 | 891 | 878 | 177.1 |
| A | 8 | 192 | 22757 | 123.53 | 891 | 878 | 177.1 |
| A | 13 | 254 | 11295 | 58.82 | 891 | 878 | 177.1 |
| B | 6 | 159 | 1686402 | 10154.93 | 879 | 863 | 166.0 |
| B | 12 | 111 | 20064 | 115.68 | 879 | 863 | 166.0 |
| B | 11 | 111 | 18371 | 105.48 | 879 | 863 | 166.0 |
| C | 14 | 238 | 140485 | 724.2 | 835 | 842 | 192.8 |
| C | 3 | 233 | 45280 | 230.46 | 835 | 842 | 192.8 |
| C | 14 | 67 | 27510 | 138.3 | 835 | 842 | 192.8 |
| D | 8 | 195 | 217083 | 1100.29 | 832 | 815 | 196.6 |
| D | 7 | 80 | 187416 | 949.36 | 832 | 815 | 196.6 |
| D | 7 | 238 | 87060 | 438.78 | 832 | 815 | 196.6 |

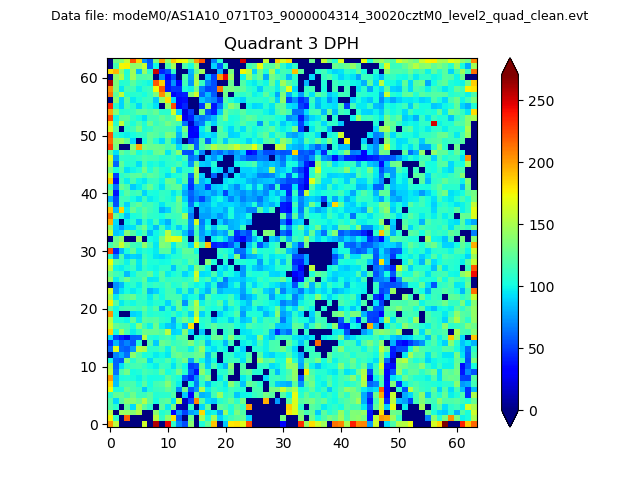

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
