| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T04_9000004316_30027cztM0_level2.evt | modeM0/AS1A10_071T04_9000004316_30027cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,320,320 | 102,326,400 |
| Size | 540.1 MB | 97.6 MB |
| Events in quadrant A | 3,533,157 | 662,580 |
| Events in quadrant B | 5,509,853 | 659,157 |
| Events in quadrant C | 3,672,361 | 632,277 |
| Events in quadrant D | 3,936,166 | 631,999 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15226 | 1 |
| B | 0 | 22241 | 1 |
| C | 0 | 15508 | 1 |
| D | 0 | 16470 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7369 | 72 | 0.977066% |
| B | 7369 | 165 | 2.239110% |
| C | 7370 | 156 | 2.116689% |
| D | 7369 | 91 | 1.234903% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7729 | 7371 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7729 | 7371 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7730 | 7372 | 5 | 5 | 0.06% | 0.07% |  |
| D | 7729 | 7371 | 36 | 36 | 0.47% | 0.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14181 | 71.69 | 911 | 892 | 185.4 |
| A | 8 | 192 | 12792 | 64.19 | 911 | 892 | 185.4 |
| A | 3 | 137 | 9479 | 46.32 | 911 | 892 | 185.4 |
| B | 6 | 159 | 1979722 | 11258.33 | 895 | 871 | 175.8 |
| B | 12 | 111 | 22076 | 120.64 | 895 | 871 | 175.8 |
| B | 11 | 111 | 20179 | 109.85 | 895 | 871 | 175.8 |
| C | 14 | 238 | 142919 | 692.83 | 869 | 874 | 205.0 |
| C | 3 | 233 | 67650 | 325.7 | 869 | 874 | 205.0 |
| C | 2 | 16 | 47652 | 228.16 | 869 | 874 | 205.0 |
| D | 7 | 80 | 336543 | 1574.14 | 882 | 864 | 213.2 |
| D | 8 | 195 | 198124 | 925.03 | 882 | 864 | 213.2 |
| D | 2 | 250 | 56905 | 262.8 | 882 | 864 | 213.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

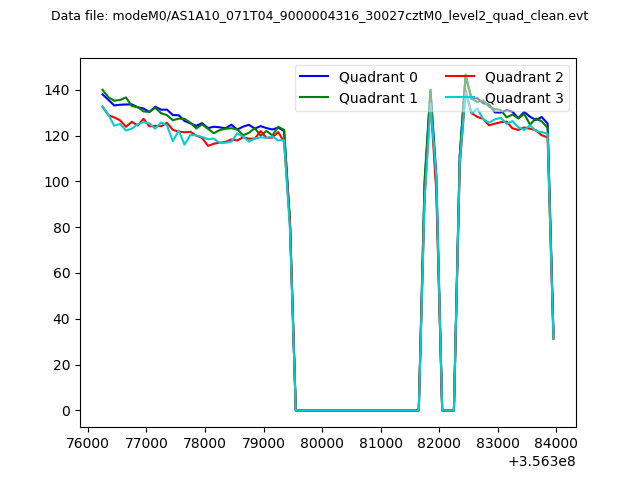

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

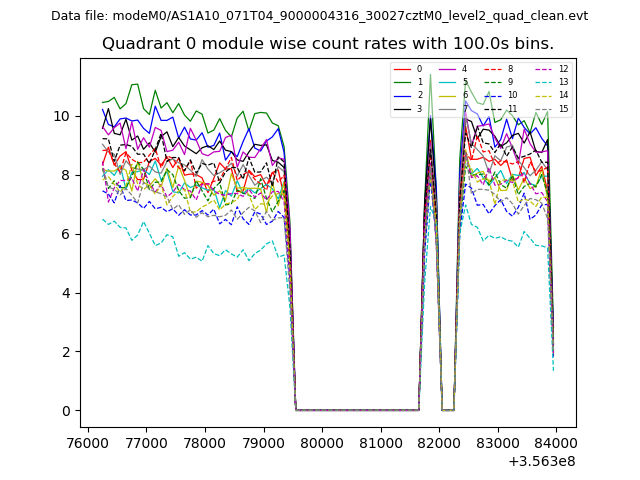

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

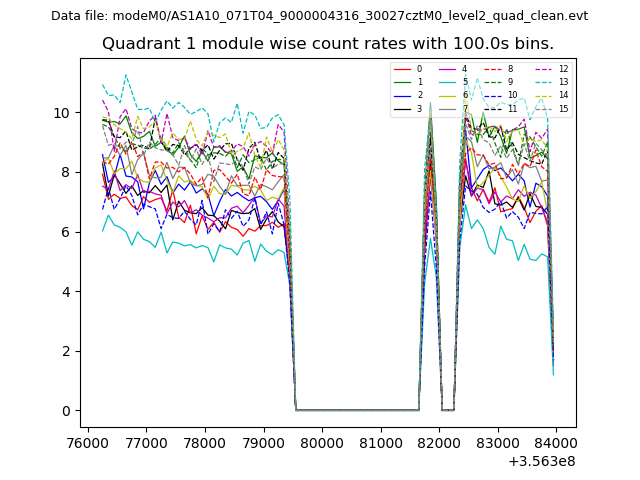

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

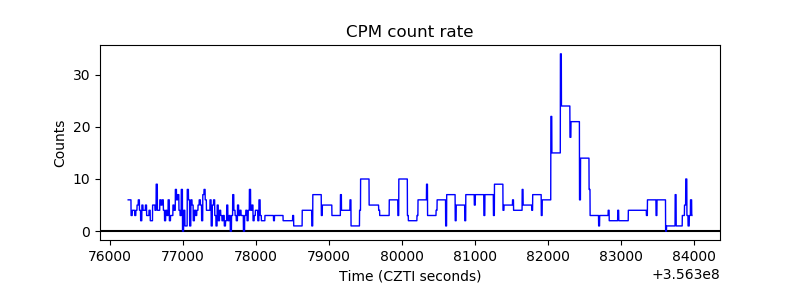

| _CPM_Rate |  |

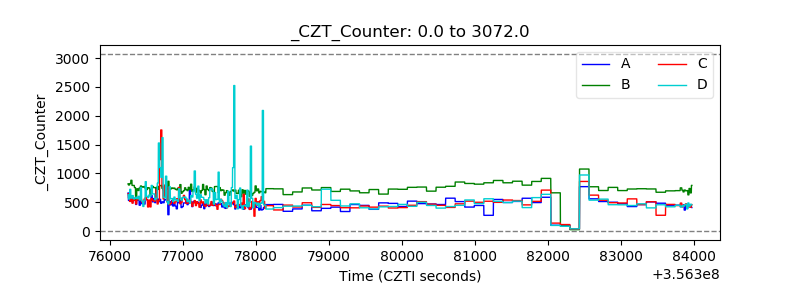

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
