| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T04_9000004316_30029cztM0_level2.evt | modeM0/AS1A10_071T04_9000004316_30029cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,016,593,920 | 172,935,360 |
| Size | 969.5 MB | 164.9 MB |
| Events in quadrant A | 6,223,084 | 1,111,611 |
| Events in quadrant B | 9,883,768 | 1,102,343 |
| Events in quadrant C | 6,621,453 | 1,057,805 |
| Events in quadrant D | 7,174,716 | 1,060,816 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 268 | 0 |
| B | 0 | 268 | 0 |
| C | 0 | 268 | 0 |
| D | 0 | 268 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27131 | 4 |
| B | 0 | 39489 | 3 |
| C | 0 | 28116 | 3 |
| D | 0 | 30166 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13094 | 116 | 0.885902% |
| B | 13095 | 241 | 1.840397% |
| C | 13095 | 307 | 2.344406% |
| D | 13095 | 84 | 0.641466% |

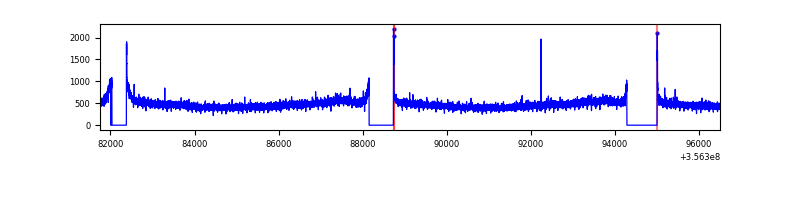

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14754 | 13098 | 3 | 3 | 0.02% | 0.02% |  |
| B | 14755 | 13099 | 0 | 0 | 0.00% | 0.00% |  |
| C | 14755 | 13099 | 17 | 17 | 0.12% | 0.13% |  |
| D | 14755 | 13099 | 13 | 13 | 0.09% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 40238 | 119.69 | 1600 | 1565 | 323.1 |
| A | 13 | 254 | 25051 | 72.69 | 1600 | 1565 | 323.1 |
| A | 3 | 137 | 16741 | 46.97 | 1600 | 1565 | 323.1 |
| B | 6 | 159 | 3687375 | 12026.65 | 1575 | 1530 | 306.5 |
| B | 12 | 111 | 39030 | 122.36 | 1575 | 1530 | 306.5 |
| B | 11 | 111 | 35771 | 111.73 | 1575 | 1530 | 306.5 |
| C | 3 | 233 | 295614 | 815.18 | 1528 | 1537 | 360.8 |
| C | 14 | 238 | 269695 | 743.33 | 1528 | 1537 | 360.8 |
| C | 15 | 208 | 39966 | 106.53 | 1528 | 1537 | 360.8 |
| D | 7 | 80 | 445497 | 1219.69 | 1547 | 1516 | 364.0 |
| D | 1 | 52 | 413006 | 1130.43 | 1547 | 1516 | 364.0 |
| D | 8 | 195 | 325307 | 889.51 | 1547 | 1516 | 364.0 |

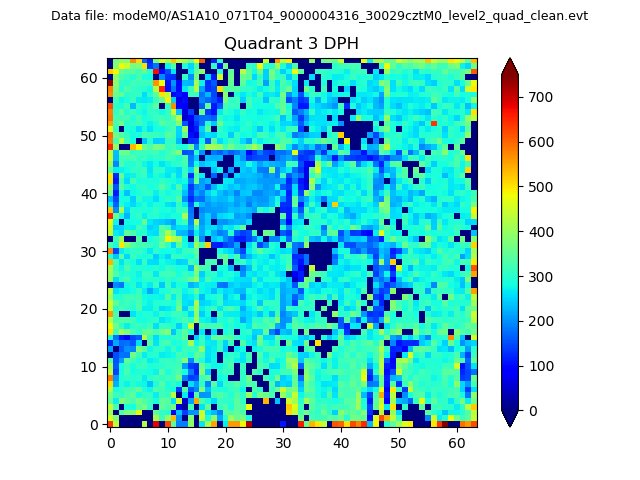

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

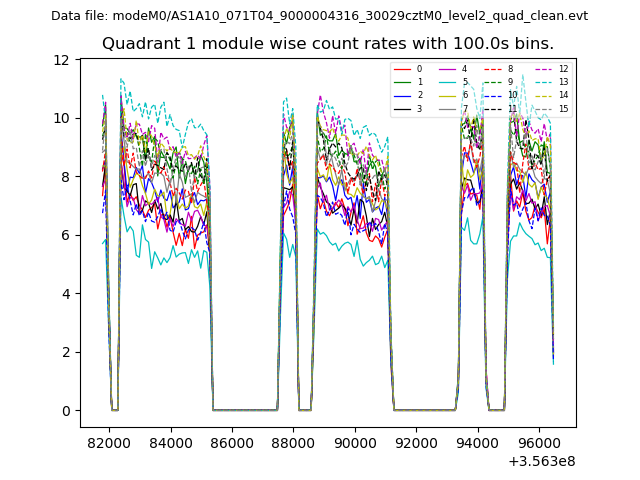

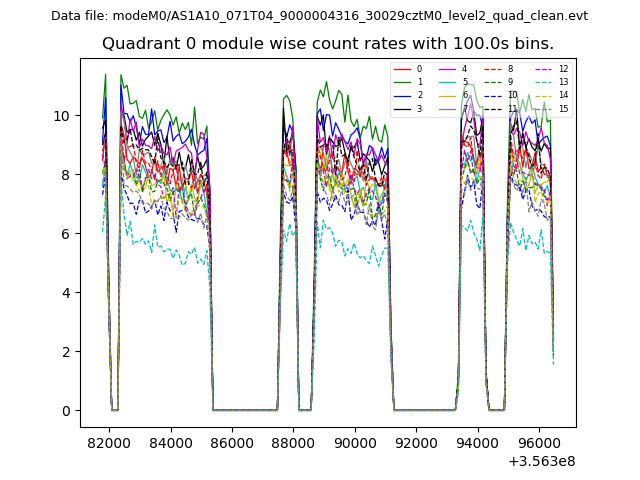

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

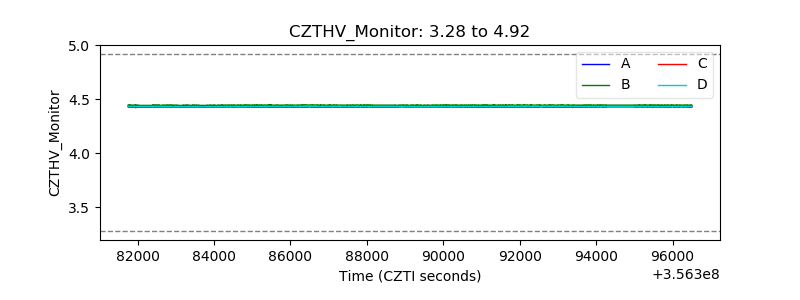

| CZT HV Monitor |  |
| D_VDD |  |

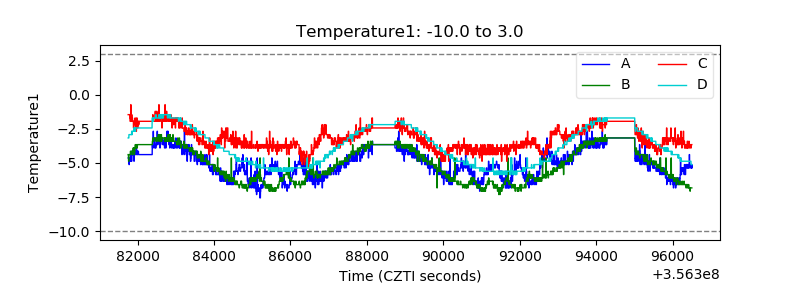

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

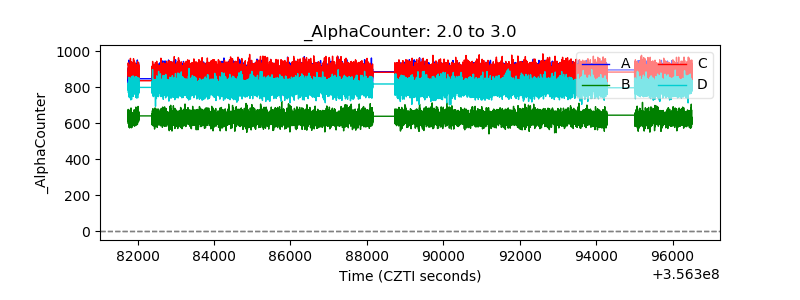

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

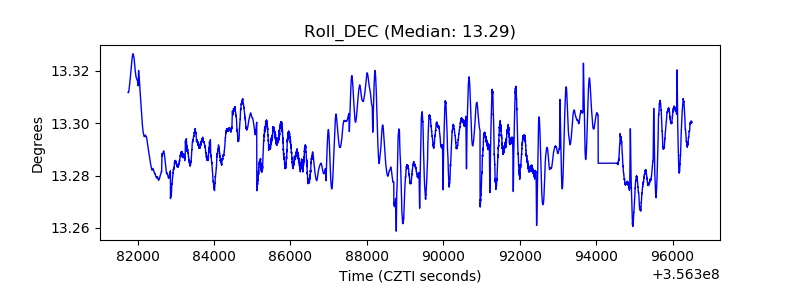

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
