| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T04_9000004316_30030cztM0_level2.evt | modeM0/AS1A10_071T04_9000004316_30030cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,452,800 | 93,173,760 |
| Size | 497.3 MB | 88.9 MB |
| Events in quadrant A | 3,195,460 | 601,306 |
| Events in quadrant B | 5,112,706 | 602,031 |
| Events in quadrant C | 3,516,790 | 572,188 |
| Events in quadrant D | 3,507,010 | 573,013 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13920 | 2 |
| B | 0 | 20356 | 2 |
| C | 0 | 14799 | 2 |
| D | 0 | 15022 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6781 | 47 | 0.693113% |
| B | 6781 | 61 | 0.899572% |
| C | 6781 | 152 | 2.241557% |
| D | 6780 | 29 | 0.427729% |

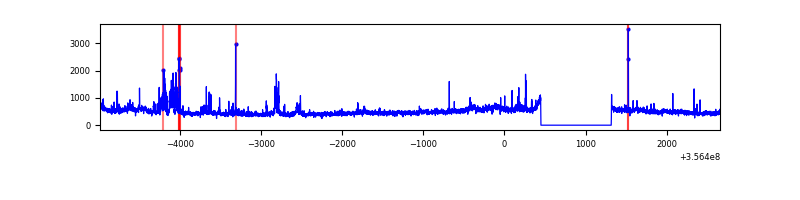

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7651 | 6782 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7651 | 6782 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7651 | 6782 | 15 | 15 | 0.20% | 0.22% |  |
| D | 7650 | 6781 | 9 | 9 | 0.12% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 25776 | 151.0 | 820 | 803 | 165.4 |
| A | 13 | 254 | 13122 | 74.49 | 820 | 803 | 165.4 |
| A | 3 | 137 | 8371 | 45.76 | 820 | 803 | 165.4 |
| B | 6 | 159 | 1915538 | 12122.09 | 809 | 785 | 158.0 |
| B | 12 | 111 | 20136 | 122.51 | 809 | 785 | 158.0 |
| B | 11 | 111 | 18156 | 109.97 | 809 | 785 | 158.0 |
| C | 3 | 233 | 247069 | 1335.02 | 783 | 789 | 184.5 |
| C | 14 | 238 | 146651 | 790.68 | 783 | 789 | 184.5 |
| C | 14 | 254 | 29248 | 154.27 | 783 | 789 | 184.5 |
| D | 7 | 80 | 235303 | 1247.68 | 790 | 770 | 188.0 |
| D | 8 | 195 | 213343 | 1130.86 | 790 | 770 | 188.0 |
| D | 2 | 234 | 25214 | 130.04 | 790 | 770 | 188.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

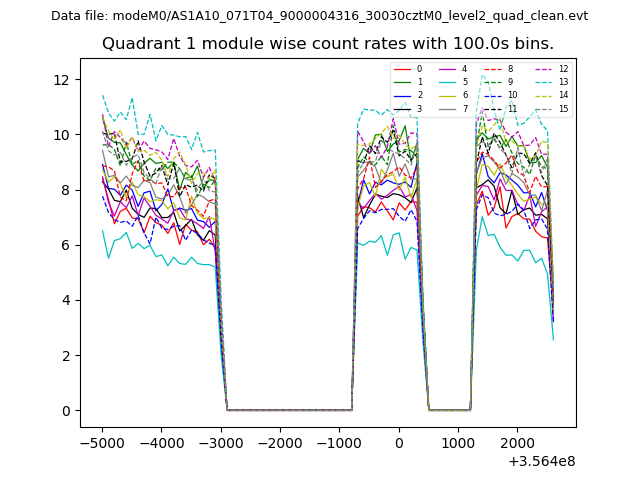

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

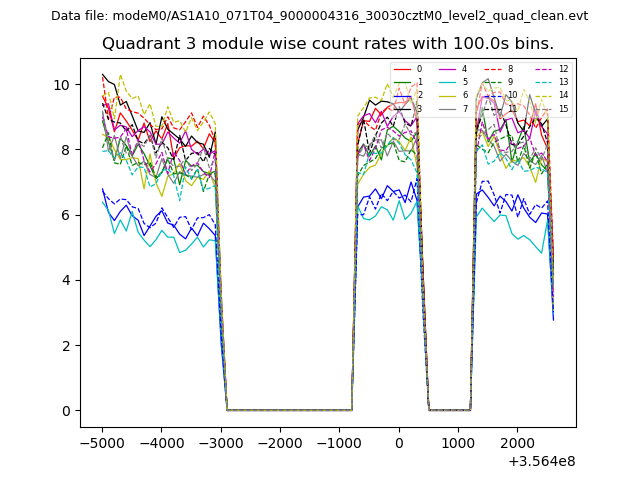

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

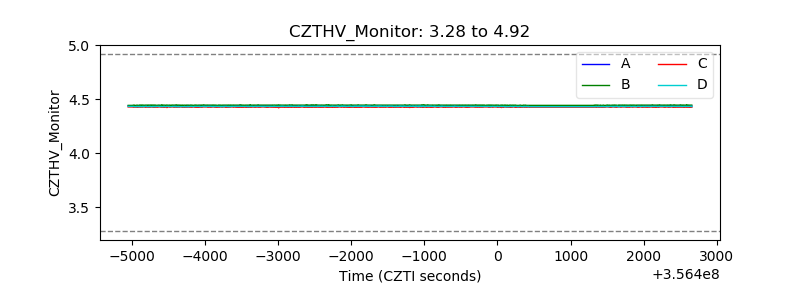

| CZT HV Monitor |  |

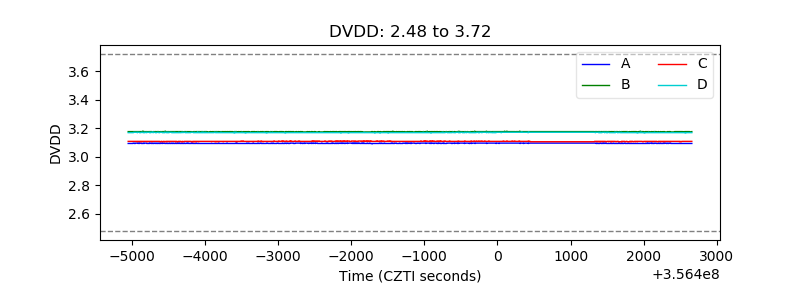

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

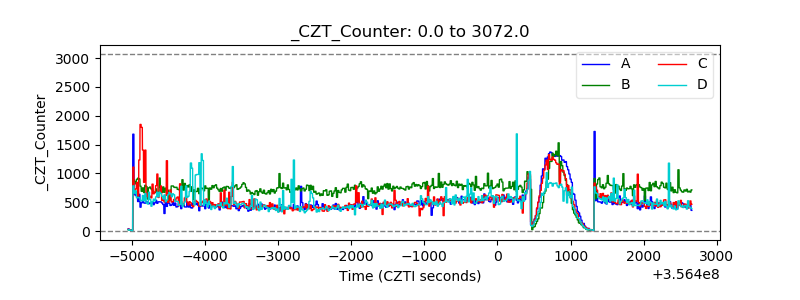

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

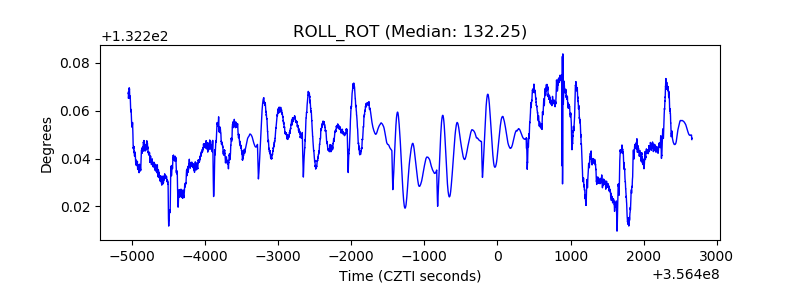

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

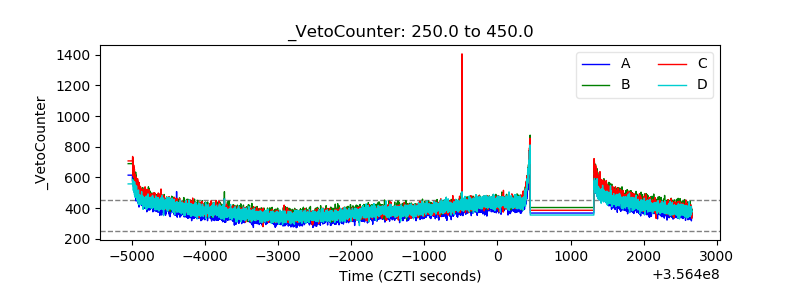

| Veto Counter |  |
