| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T04_9000004316_30031cztM0_level2.evt | modeM0/AS1A10_071T04_9000004316_30031cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,751,360 | 97,090,560 |
| Size | 511.9 MB | 92.6 MB |
| Events in quadrant A | 3,360,041 | 626,882 |
| Events in quadrant B | 5,330,355 | 630,653 |
| Events in quadrant C | 3,528,902 | 601,343 |
| Events in quadrant D | 3,566,040 | 597,953 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14286 | 2 |
| B | 0 | 20862 | 2 |
| C | 0 | 14792 | 2 |
| D | 0 | 15073 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6934 | 48 | 0.692241% |
| B | 6935 | 80 | 1.153569% |
| C | 6935 | 95 | 1.369863% |
| D | 6935 | 31 | 0.447008% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8839 | 6936 | 4 | 4 | 0.05% | 0.06% |  |
| B | 8840 | 6937 | 3 | 3 | 0.03% | 0.04% |  |
| C | 8840 | 6937 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8840 | 6937 | 13 | 13 | 0.15% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 28355 | 158.57 | 863 | 846 | 173.5 |
| A | 13 | 254 | 12486 | 67.1 | 863 | 846 | 173.5 |
| A | 3 | 137 | 8669 | 45.09 | 863 | 846 | 173.5 |
| B | 6 | 159 | 1961365 | 11855.93 | 851 | 830 | 165.4 |
| B | 12 | 111 | 20679 | 120.03 | 851 | 830 | 165.4 |
| B | 11 | 111 | 19157 | 110.83 | 851 | 830 | 165.4 |
| C | 14 | 238 | 142204 | 734.06 | 823 | 830 | 192.6 |
| C | 3 | 233 | 109639 | 564.97 | 823 | 830 | 192.6 |
| C | 15 | 208 | 27981 | 140.98 | 823 | 830 | 192.6 |
| D | 8 | 195 | 201712 | 1028.55 | 827 | 808 | 195.3 |
| D | 7 | 80 | 168643 | 859.25 | 827 | 808 | 195.3 |
| D | 2 | 250 | 27330 | 135.78 | 827 | 808 | 195.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

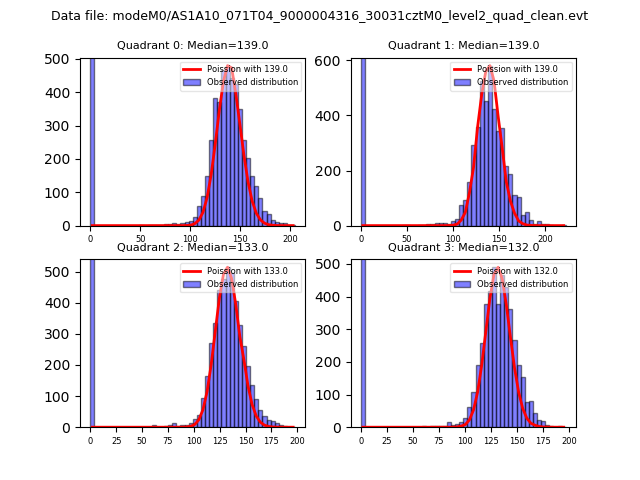

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

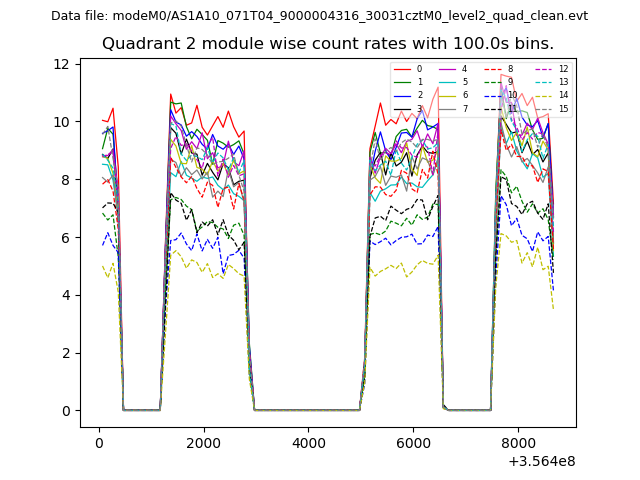

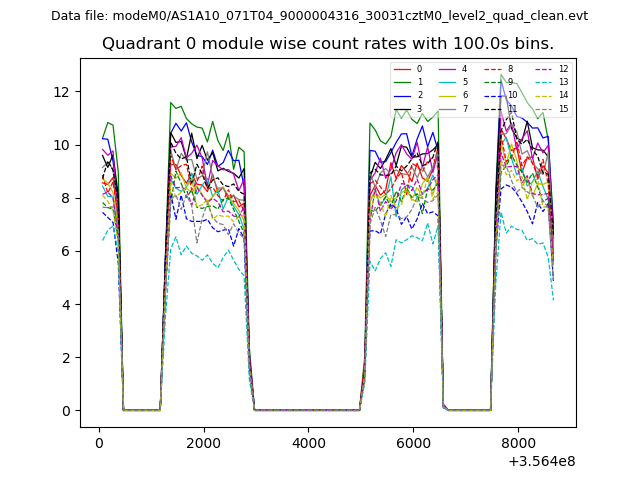

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

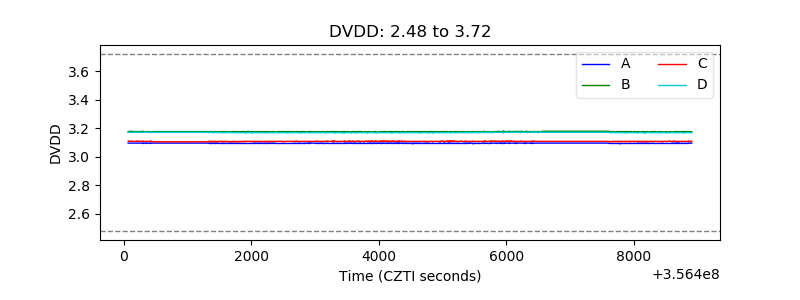

| D_VDD |  |

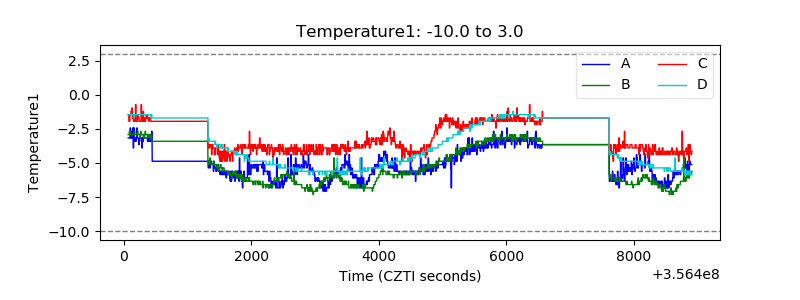

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

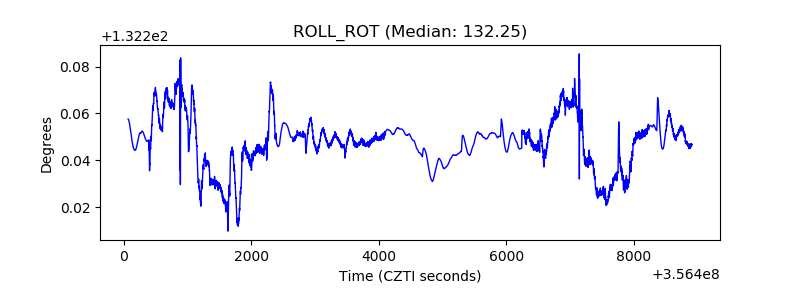

| _ROLL_ROT |  |

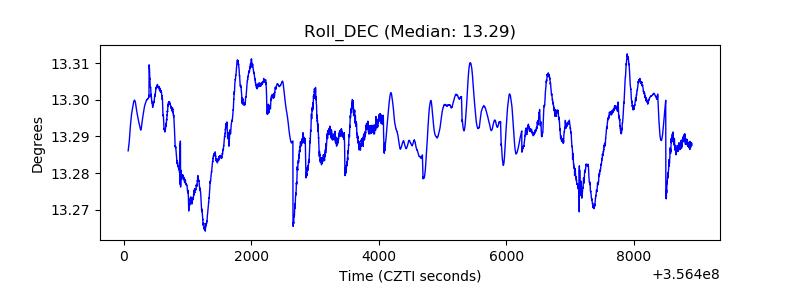

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
