| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T04_9000004316_30034cztM0_level2.evt | modeM0/AS1A10_071T04_9000004316_30034cztM0_level2_quad_clean.evt |
| Size (bytes) | 503,219,520 | 76,092,480 |
| Size | 479.9 MB | 72.6 MB |
| Events in quadrant A | 3,304,810 | 480,823 |
| Events in quadrant B | 4,947,809 | 483,713 |
| Events in quadrant C | 3,342,242 | 454,484 |
| Events in quadrant D | 3,221,793 | 449,062 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13445 | 2 |
| B | 0 | 19033 | 2 |
| C | 0 | 13505 | 2 |
| D | 0 | 13370 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6242 | 70 | 1.121435% |
| B | 6242 | 92 | 1.473887% |
| C | 6242 | 111 | 1.778276% |
| D | 6242 | 32 | 0.512656% |

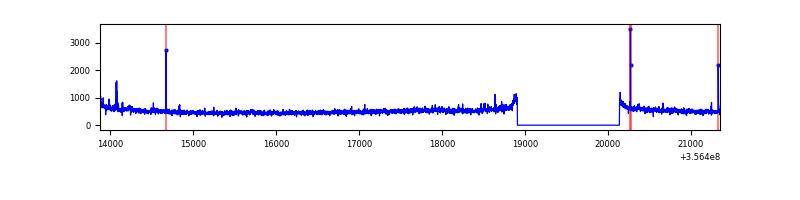

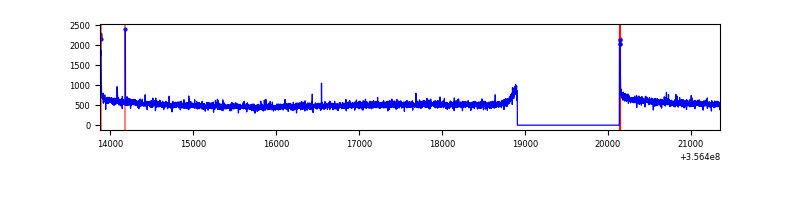

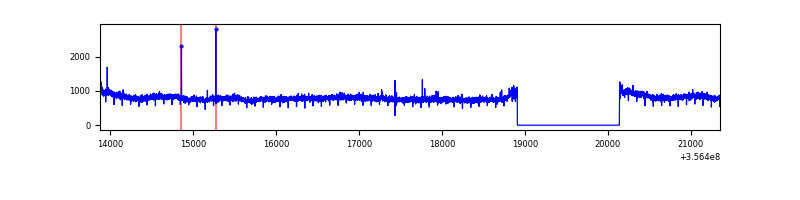

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7472 | 6243 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7472 | 6243 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7472 | 6243 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7472 | 6243 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 30768 | 177.87 | 849 | 836 | 168.3 |
| A | 13 | 254 | 11417 | 62.88 | 849 | 836 | 168.3 |
| A | 3 | 137 | 8009 | 42.63 | 849 | 836 | 168.3 |
| B | 6 | 159 | 1642177 | 10387.65 | 839 | 818 | 158.0 |
| B | 12 | 111 | 19161 | 116.08 | 839 | 818 | 158.0 |
| B | 11 | 111 | 17833 | 107.68 | 839 | 818 | 158.0 |
| C | 14 | 238 | 136304 | 732.71 | 798 | 806 | 184.9 |
| C | 3 | 233 | 69784 | 373.0 | 798 | 806 | 184.9 |
| C | 2 | 114 | 14131 | 72.05 | 798 | 806 | 184.9 |
| D | 8 | 195 | 133960 | 712.36 | 799 | 783 | 187.0 |
| D | 7 | 80 | 53463 | 281.79 | 799 | 783 | 187.0 |
| D | 2 | 234 | 19186 | 98.44 | 799 | 783 | 187.0 |

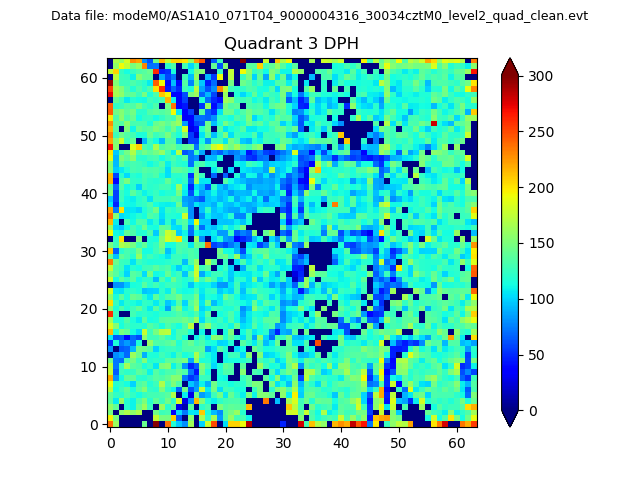

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

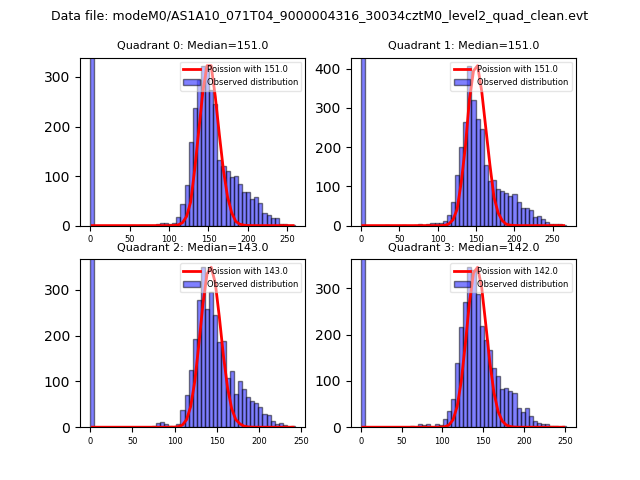

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

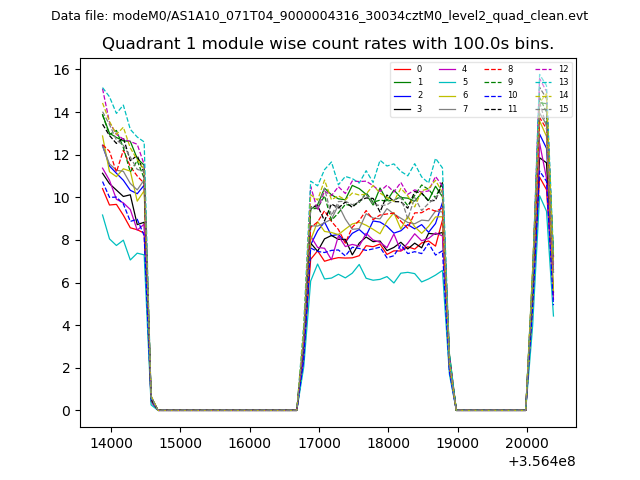

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

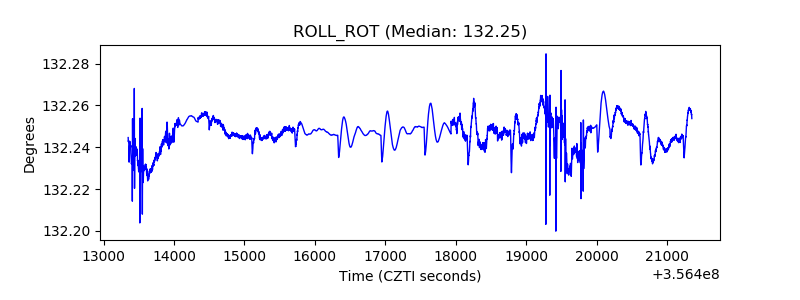

| _ROLL_ROT |  |
| _Roll_DEC |  |

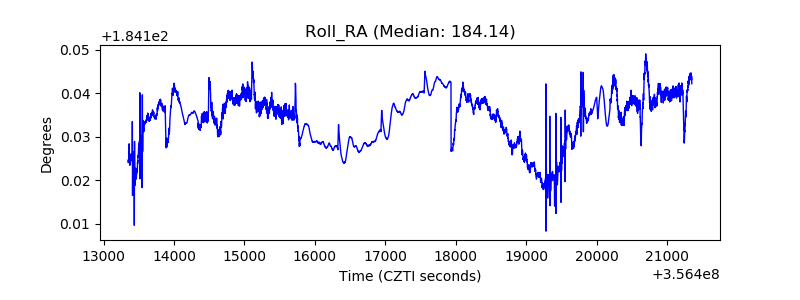

| _Roll_RA |  |
| Veto Counter |  |
