| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T09_9000004320_30050cztM0_level2.evt | modeM0/AS1A10_071T09_9000004320_30050cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,127,680 | 66,873,600 |
| Size | 500.8 MB | 63.8 MB |
| Events in quadrant A | 3,414,085 | 410,828 |
| Events in quadrant B | 5,113,926 | 410,829 |
| Events in quadrant C | 3,582,157 | 384,781 |
| Events in quadrant D | 3,372,431 | 384,399 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13682 | 2 |
| B | 0 | 19206 | 2 |
| C | 0 | 14247 | 2 |
| D | 0 | 13574 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6218 | 51 | 0.820199% |
| B | 6218 | 107 | 1.720811% |
| C | 6218 | 112 | 1.801222% |
| D | 6218 | 27 | 0.434223% |

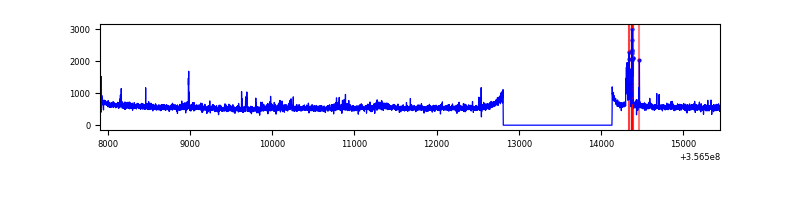

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7543 | 6219 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7543 | 6219 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7543 | 6219 | 11 | 11 | 0.15% | 0.18% |  |
| D | 7543 | 6219 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 23701 | 131.64 | 880 | 865 | 173.5 |
| A | 13 | 254 | 11270 | 59.98 | 880 | 865 | 173.5 |
| A | 3 | 137 | 8090 | 41.65 | 880 | 865 | 173.5 |
| B | 6 | 159 | 1654719 | 10224.11 | 868 | 850 | 161.8 |
| B | 5 | 255 | 48932 | 297.24 | 868 | 850 | 161.8 |
| B | 12 | 111 | 19511 | 115.36 | 868 | 850 | 161.8 |
| C | 14 | 238 | 158310 | 830.34 | 821 | 828 | 189.7 |
| C | 3 | 233 | 107669 | 563.33 | 821 | 828 | 189.7 |
| C | 15 | 208 | 74990 | 391.03 | 821 | 828 | 189.7 |
| D | 8 | 195 | 161406 | 836.14 | 824 | 808 | 192.1 |
| D | 2 | 250 | 60080 | 308.6 | 824 | 808 | 192.1 |
| D | 2 | 234 | 21624 | 108.38 | 824 | 808 | 192.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

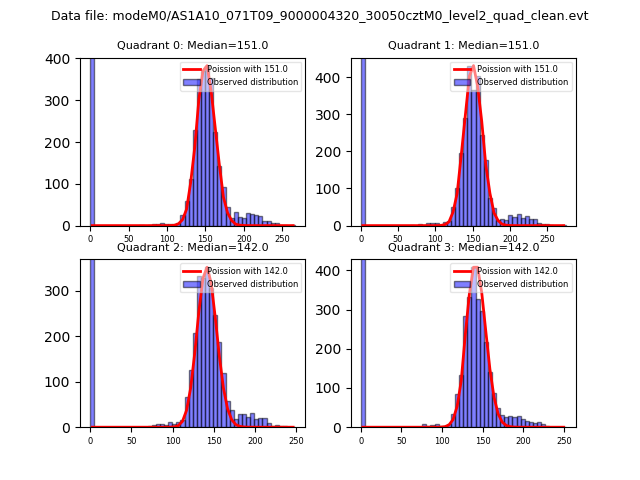

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

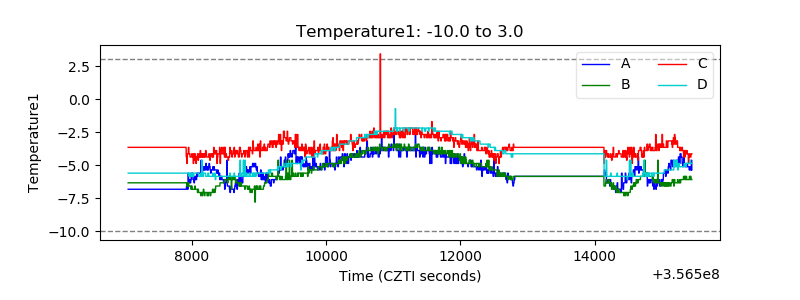

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

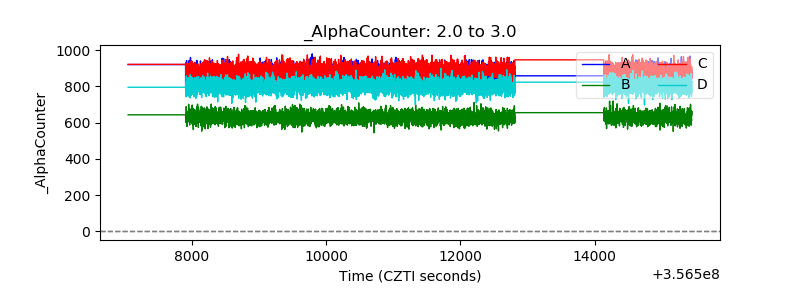

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

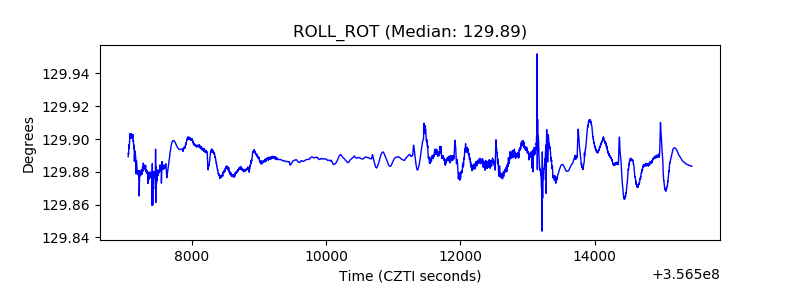

| _ROLL_ROT |  |
| _Roll_DEC |  |

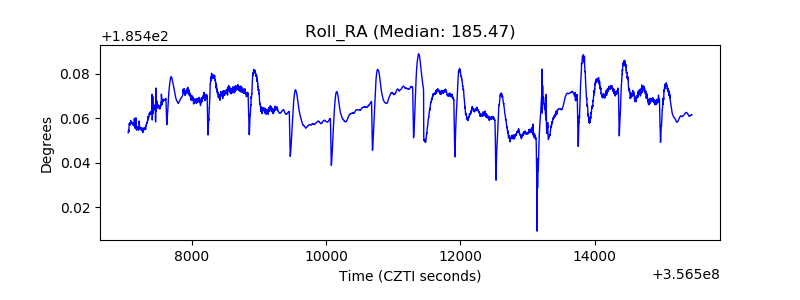

| _Roll_RA |  |
| Veto Counter |  |
