| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T09_9000004320_30052cztM0_level2.evt | modeM0/AS1A10_071T09_9000004320_30052cztM0_level2_quad_clean.evt |
| Size (bytes) | 555,016,320 | 87,209,280 |
| Size | 529.3 MB | 83.2 MB |
| Events in quadrant A | 3,571,083 | 559,044 |
| Events in quadrant B | 5,417,583 | 553,417 |
| Events in quadrant C | 3,713,129 | 527,127 |
| Events in quadrant D | 3,645,851 | 527,117 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14465 | 2 |
| B | 0 | 20719 | 2 |
| C | 0 | 14813 | 2 |
| D | 0 | 14734 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6799 | 131 | 1.926754% |
| B | 6799 | 188 | 2.765113% |
| C | 6799 | 171 | 2.515076% |
| D | 6799 | 87 | 1.279600% |

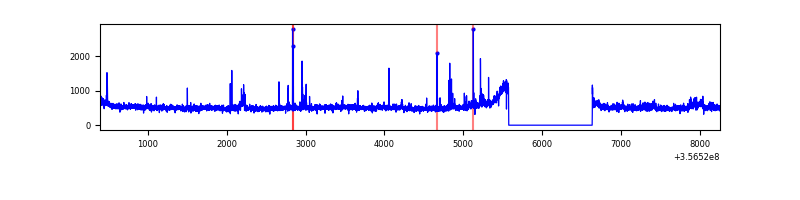

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7859 | 6800 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7859 | 6800 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7859 | 6800 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7859 | 6800 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 26852 | 141.49 | 917 | 902 | 183.4 |
| A | 12 | 96 | 12419 | 62.79 | 917 | 902 | 183.4 |
| A | 13 | 254 | 12276 | 62.01 | 917 | 902 | 183.4 |
| B | 6 | 159 | 1839806 | 10596.17 | 897 | 876 | 173.5 |
| B | 5 | 255 | 44403 | 250.81 | 897 | 876 | 173.5 |
| B | 12 | 111 | 21170 | 116.94 | 897 | 876 | 173.5 |
| C | 3 | 233 | 181124 | 890.69 | 864 | 872 | 202.4 |
| C | 14 | 238 | 144019 | 707.34 | 864 | 872 | 202.4 |
| C | 2 | 114 | 15952 | 74.52 | 864 | 872 | 202.4 |
| D | 8 | 195 | 223293 | 1081.81 | 872 | 855 | 205.6 |
| D | 2 | 250 | 47184 | 225.32 | 872 | 855 | 205.6 |
| D | 1 | 52 | 33193 | 157.27 | 872 | 855 | 205.6 |

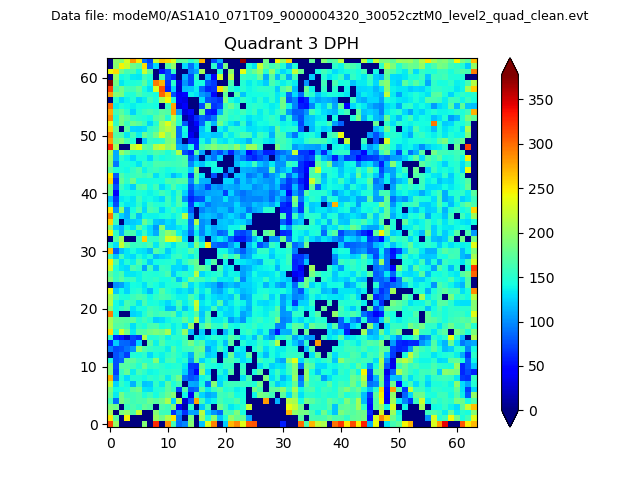

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

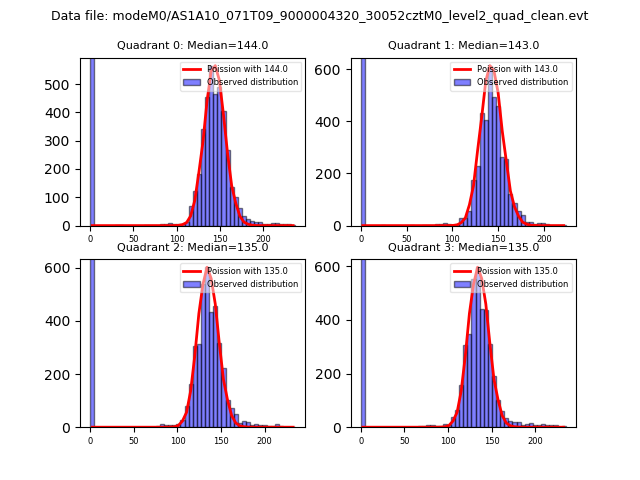

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

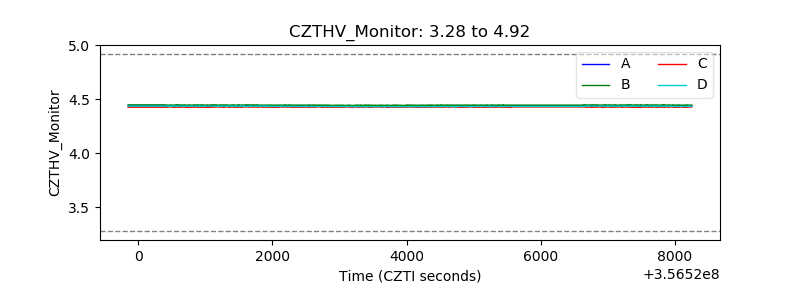

| CZT HV Monitor |  |

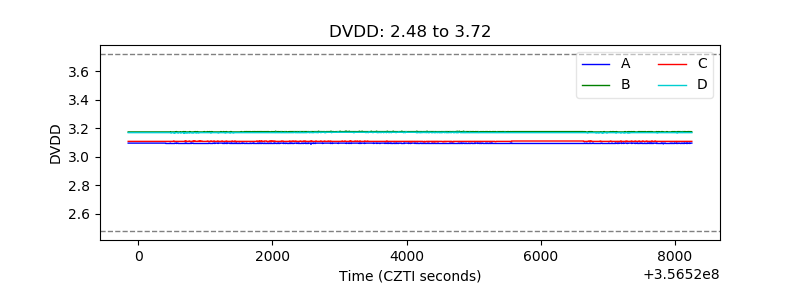

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

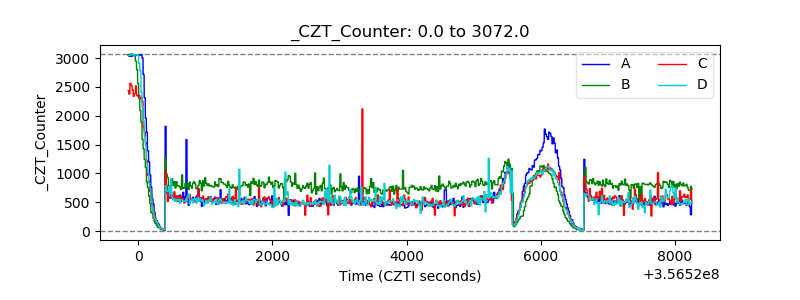

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
